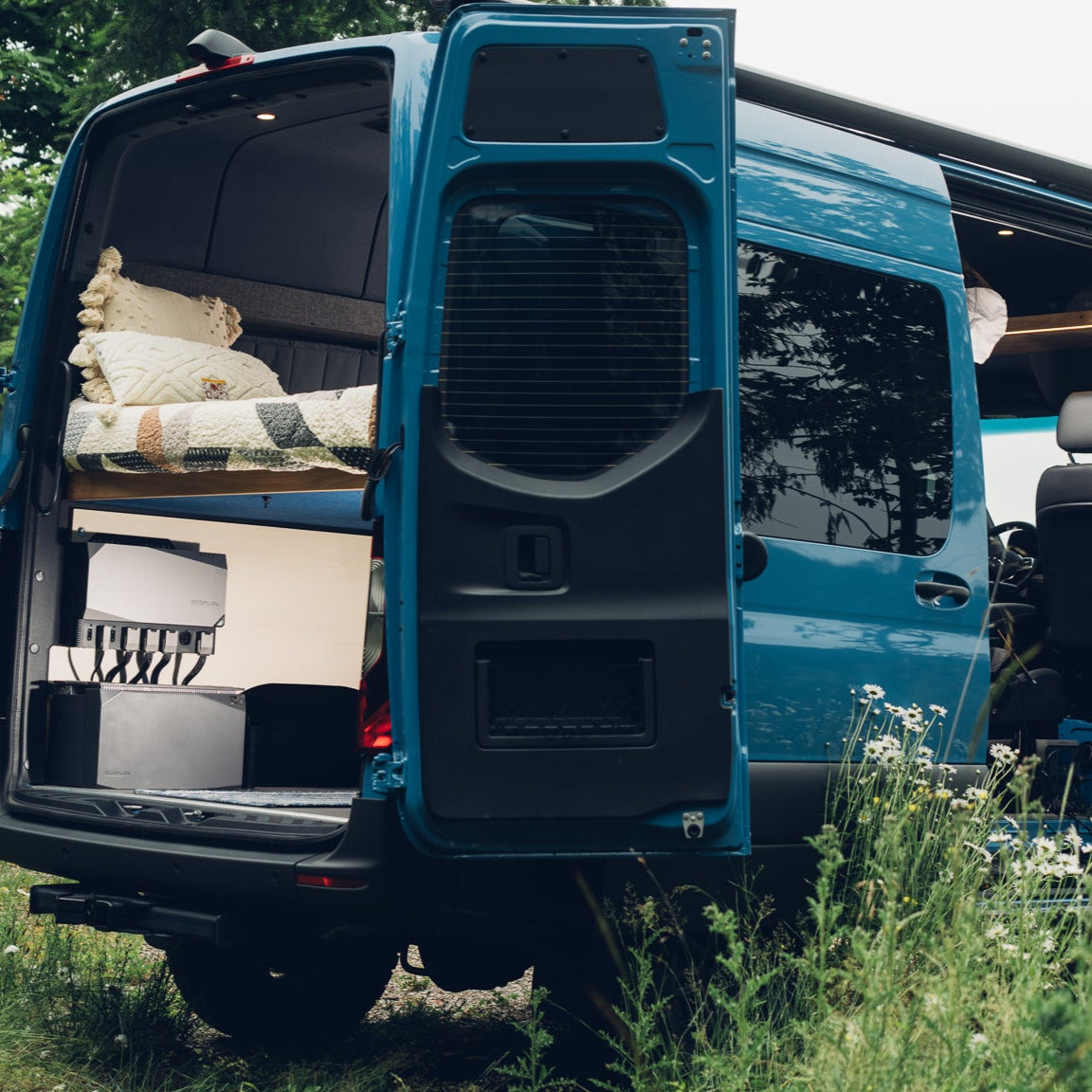

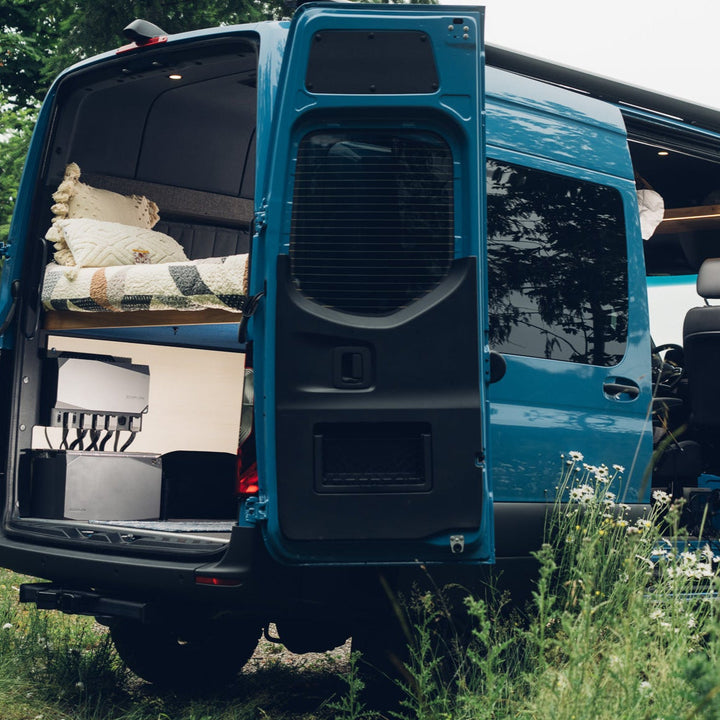

The hassle-free, high-powered EcoFlow 5 kVA Power Kit - Gen 2 is the newest version of EcoFlow's integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.
CHOOSE YOUR KIT
You can choose between these variants of the EcoFlow 5 kVA Power Kit - Gen 2:
-

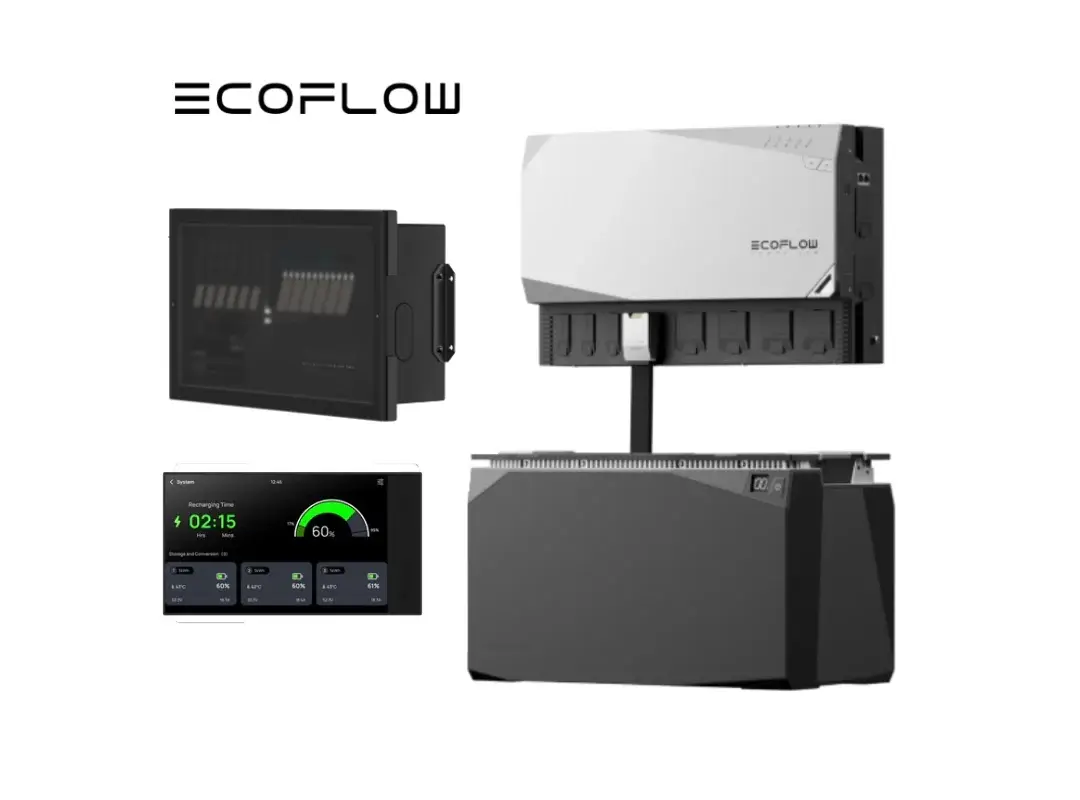

30A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A AC/DC Smart Distribution Panel (Gen 1), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps
-

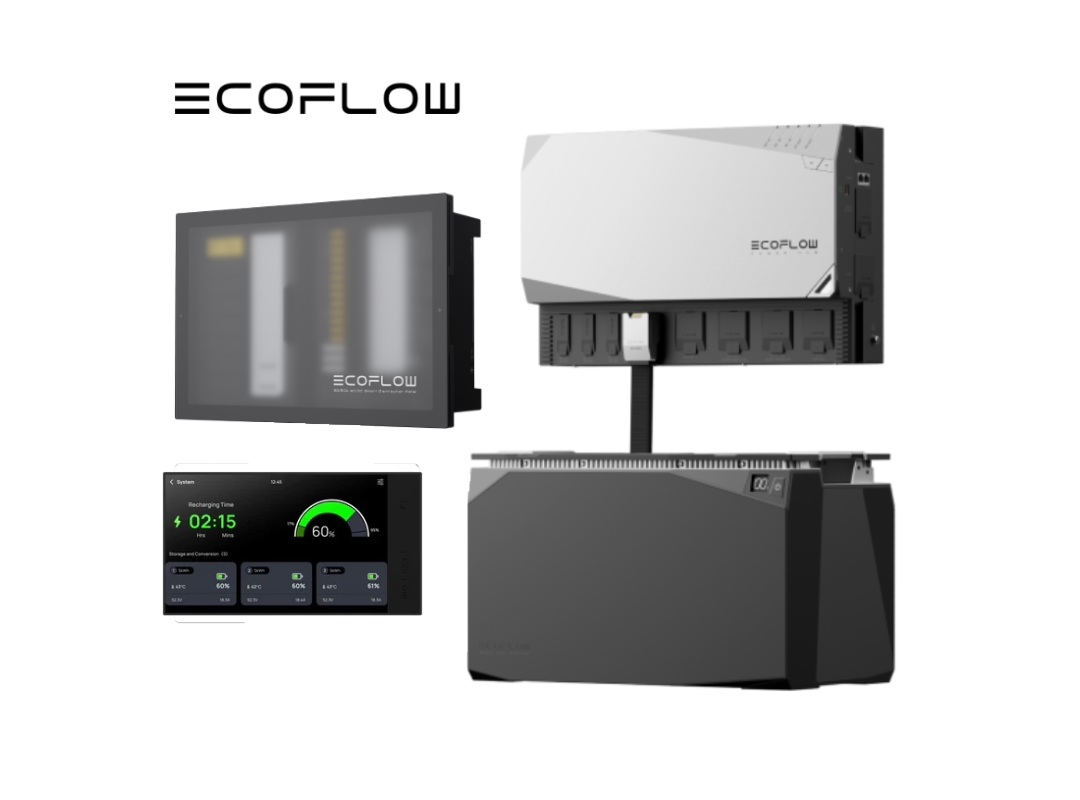

50A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A/50A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps
Your Kit Version selected includes a 5 kWh LFP Battery.
48V A/C CABLE
The new 5 kVA Power Hub features a dedicated 48V output port. This is recommended for rooftop air conditioners or other 48V appliances.
FREE SHIPPING on all EcoFlow items anywhere in the lower 48 US states.
Note: The 5kVA Power Hub comes with AC and DC Main Out cables designed to connect to the new EcoFlow 50A Distribution Panel. The 50A Distribution Panel does not come with circuit breakers or extra DC fuses. 3x DC Main fuses are included. Please see the User Manual for common/appropriate breakers.
Documents: EcoFlow 5 kVA Power Kit
EcoFlow LFP Battery User Manual
EcoFlow 5 kVA Power Hub User Manual - Gen2
EcoFlow Power Kit Console User Manual
EcoFlow PowerInsight User Manual
EcoFlow AC/DC Smart Distribution Panel User Manual (30A)
EcoFlow AC/DC Smart Distribution Panel User Manual (30A/50A)
EcoFlow Power Dock User Manual
EcoFlow Power Link User Manual
SPECIFICATIONS

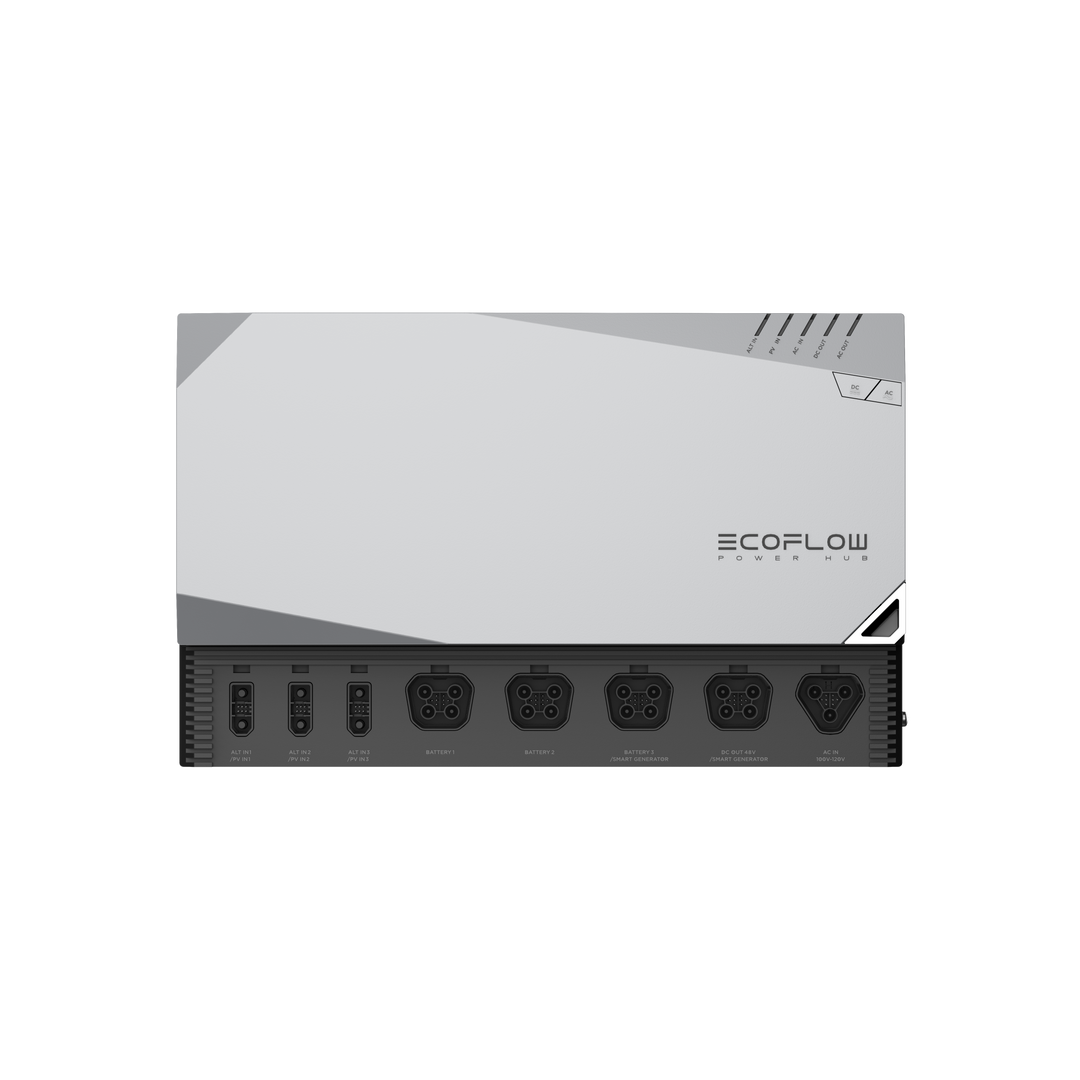

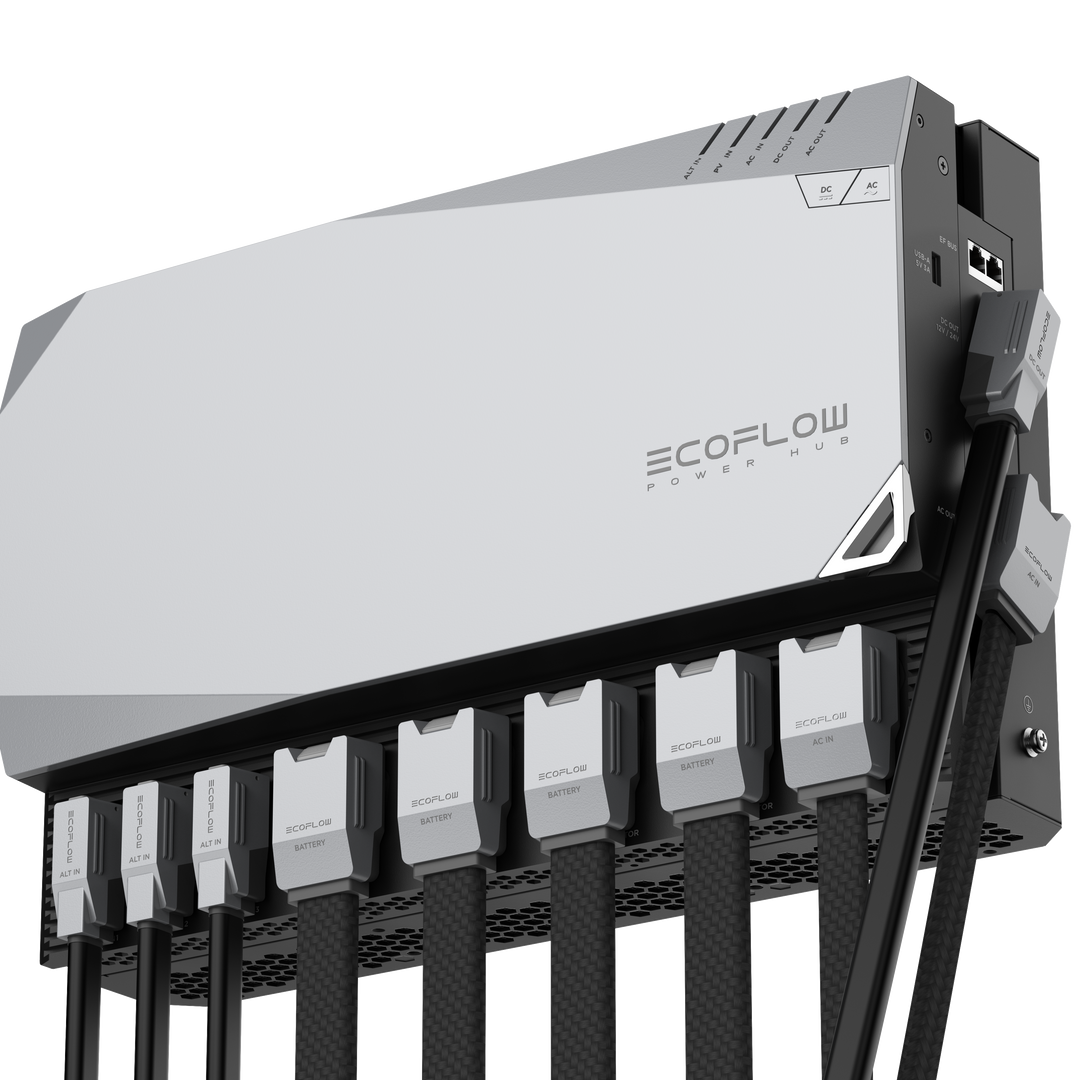

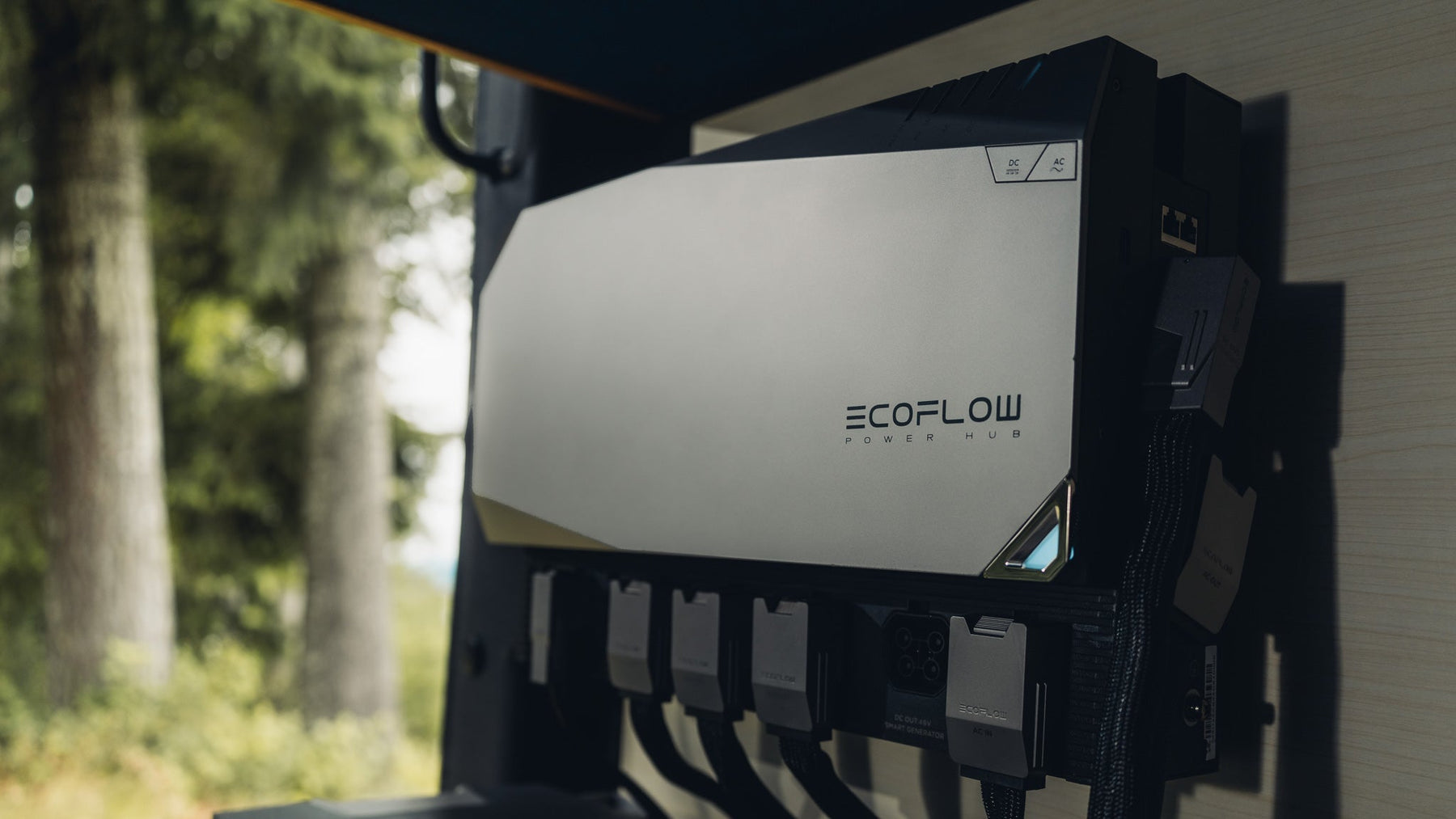

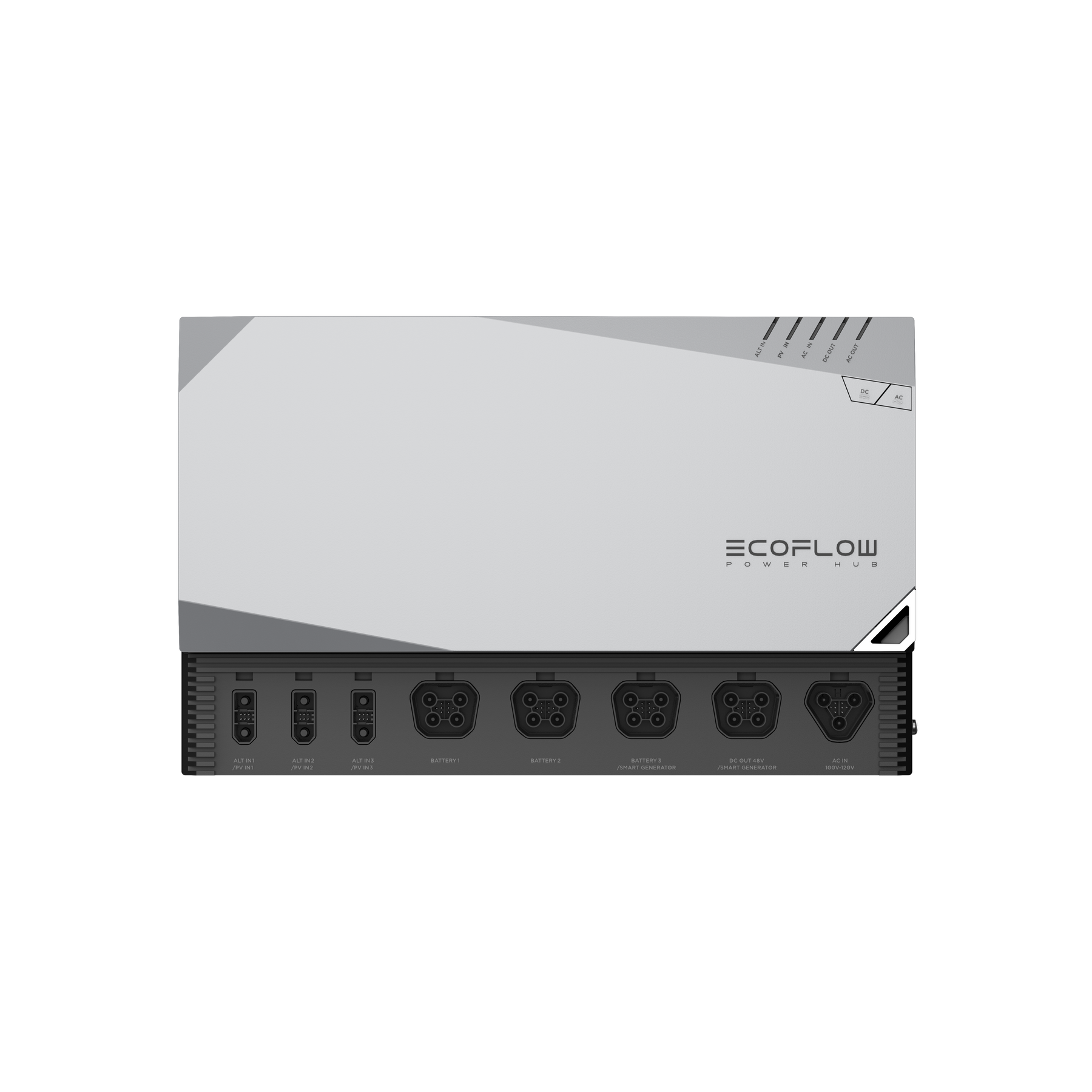

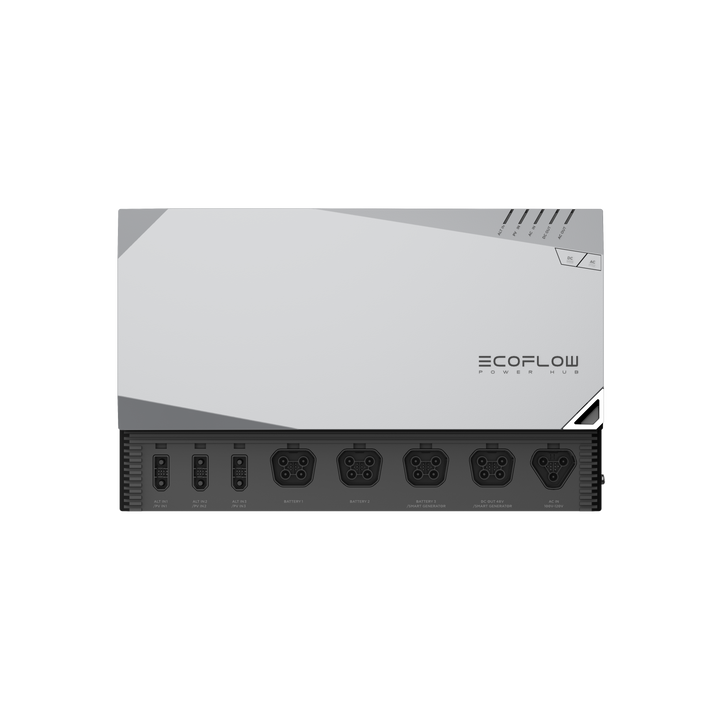

Power Hub 5 kVA - Gen 2
|
Dimensions (in)
|
480x140x300mm(18.9x5.5x11.8in)
|
|
Testing & Certifications
|
CE, UL, FCC
|
|
Wi-Fi
|
2.4G, 5G Supported
|
|
Bluetooth
|
5.0 Supported
|
|
OUTPUT
|
|
|
AC Output (Discharge only)
|
120V - 4000W, 5000VA, 60Hz
(Surge 10 kVA, 100ms)
|
|
AC Output (Bypass Mode)
|
Low Voltage: 100-120V ~ 50A Max, 50/60Hz
High Voltage: 220-240V ~ 50A Max, 50/60Hz
|
|
DC Main Output
|
13.6V - 100A, 1300W Max
26.4V - 60A, 1600W Max
|
|
INPUT
|
|
|
X-Fusion(Power Assist)
|
50A, 5000VA Max
|
|
AC Main Input Voltage/frequency
|
100-120V, 50Hz/60Hz
|
|
Solar Charging Input
|
Port 1: 13-60V 100A, 4000W max
Port 2/3: 13-60V 30A, 1600W max
|
|
Alternator Charging Input
|
13V-60V, 60A/30A/30A, up to 4800W total
|
|
TEMPERATURE
|
|
|
Best Operating Temperature
|
68°F-86°F(20°C - 30°C)
|
|
Discharge Temperature
|
-13°F-140°F(-25°C to 60°C)
|
|
Charge Temperature
|
-13°F-140°F(-25°C to 60°C)
|
|
Storage Temperature
|
-13°F-140°F(-25°C to 60°C)
|
|
Net Weight
|
34 lbs(15.5kg)
|

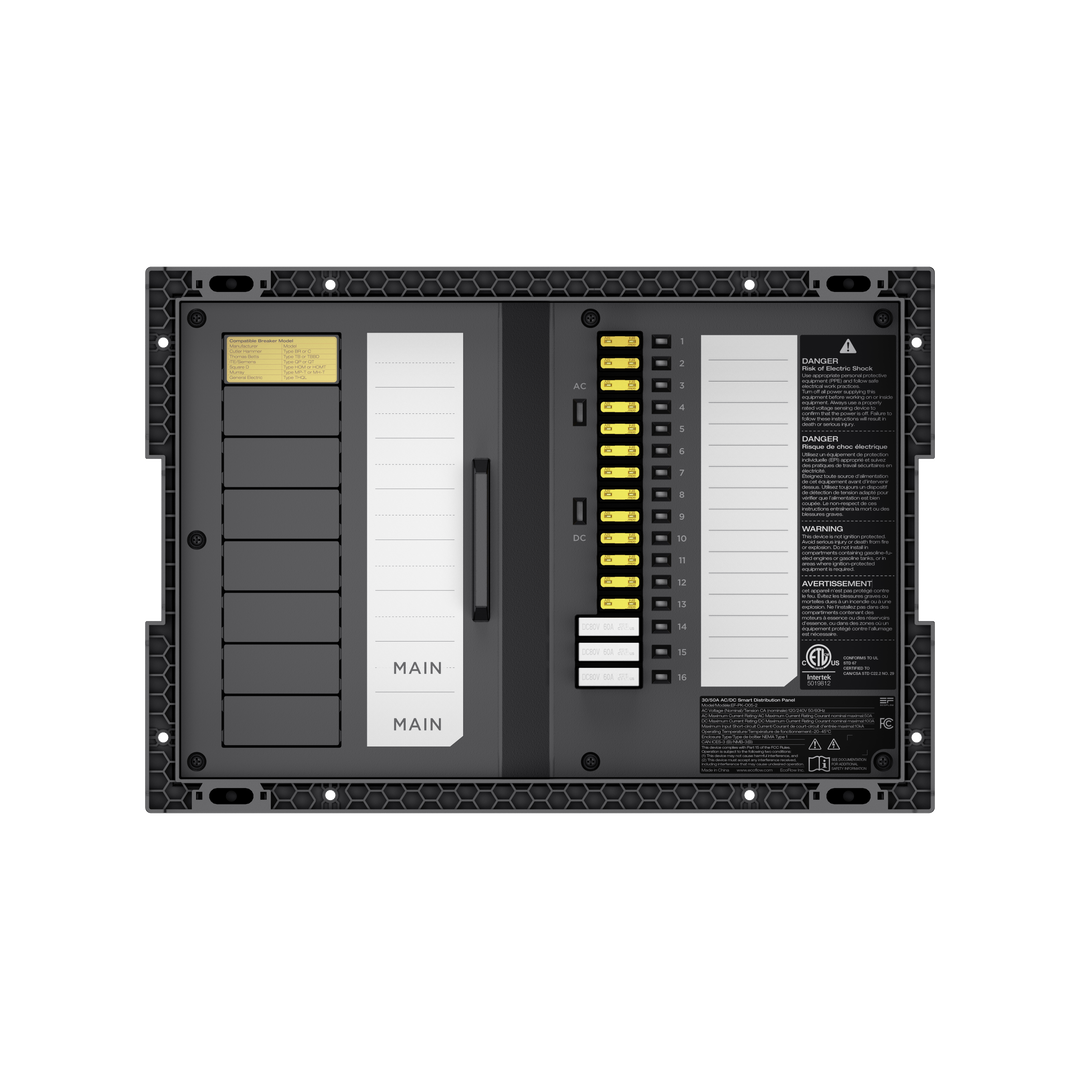

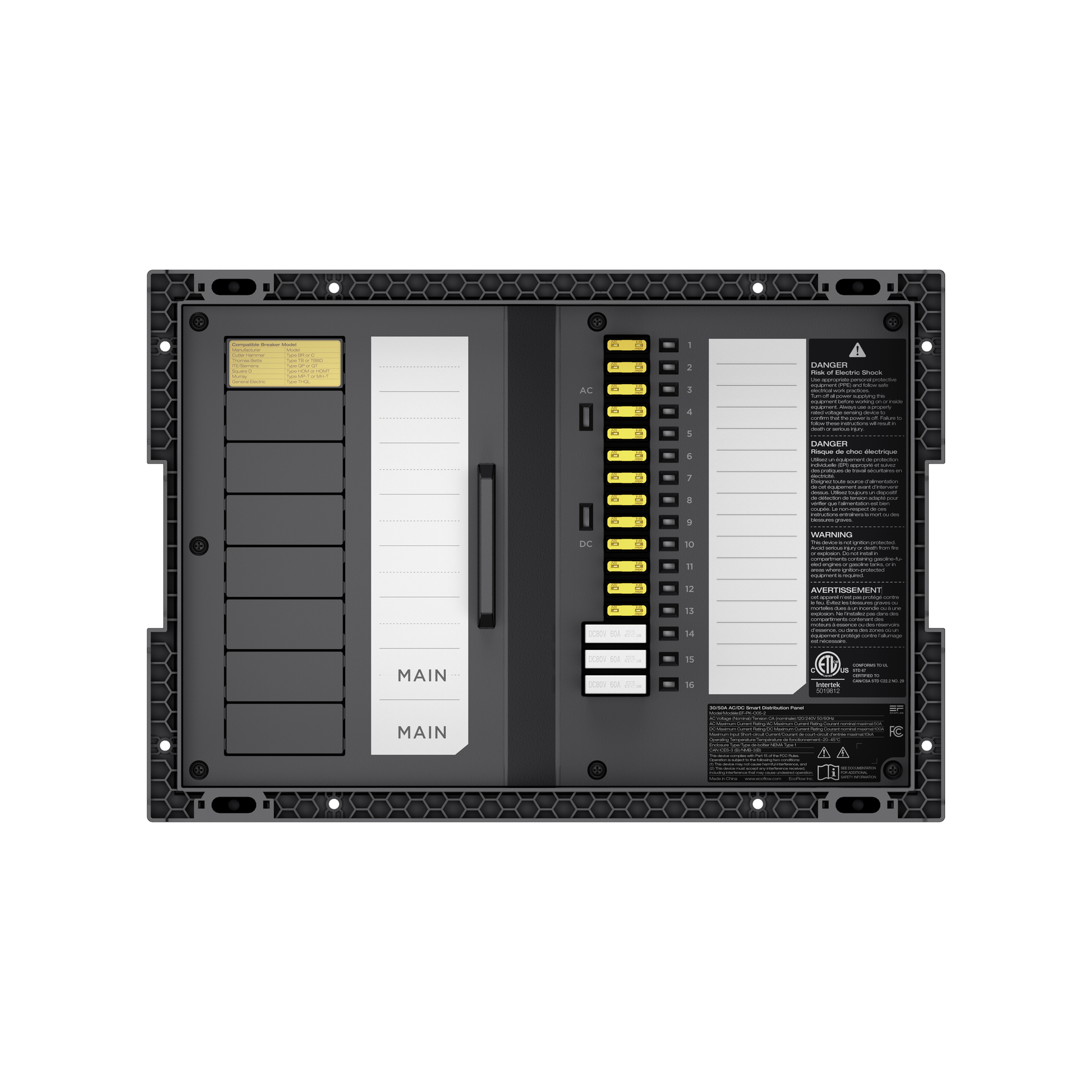

30/50Amp AC/DC Smart Distribution Panel - Gen 2
|
Feed-In type
|
Split phase (L1, L2, N)
|
|
AC Input
|
50A Max. 120V/240V, 60Hz
|
|
AC Output
|
Max 30A for each branch circuit
|
|
AC Circuits
|
Max 12 branch circuits
|
|
Maximum Input Short-Circuit Current
|
10kA
|
|
DC Input
|
Max 100A, 13/26V
|
|
DC Output
|
Max 30A for F1-F13 Circuits
Max 50A for F14-F16
|
|
Number of Circuits
|
16 controllable circuits(F1-F16)
|
|
Operating Temperature (C)
|
–25°C to 45°C (–13°F to 113°F)
|
|
Operating Temperature (F)
|
–25°C to 70°C (–13°F to 158°F)
|
|
Dimensions
|
390x135x270 mm (15.3x5.3x10.6 in.)
|
|
Net Weight (lbs)
|
4 kg (8.8 lb)
|
|
Altitude
|
9842 ft (3,000 m)
|
|
Enclosure Type
|
NEMA Type 1
|

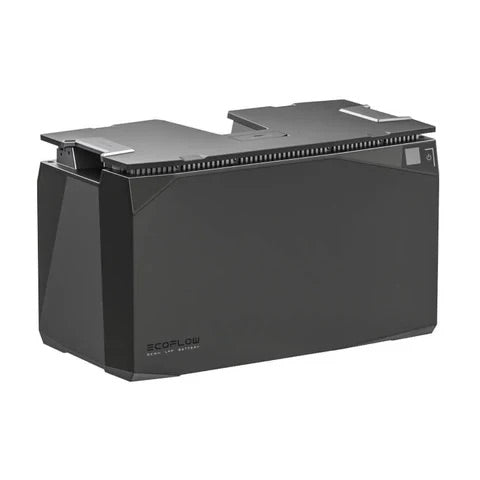

5kWh LFP Battery
|
Capacity
|
5120Wh (51.2V, 100Ah)
|
|
Cell Chemistry
|
Lithium Iron Phosphate
|
|
Cycle Life
|
~3500 Cycles up to 80% Capacity
|
|
Protection Level
|
IP54
|
|
Test and Certifications
|
UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
|
|
Storage Temperature (F)
|
-4°F–140°F
|
|
Storage Temperature (C)
|
-20°C–60°C
|
|
Operating Temperature (F)
|
-4°F-122°F
|
|
Operating Temperature (C)
|
-20℃-60℃
|

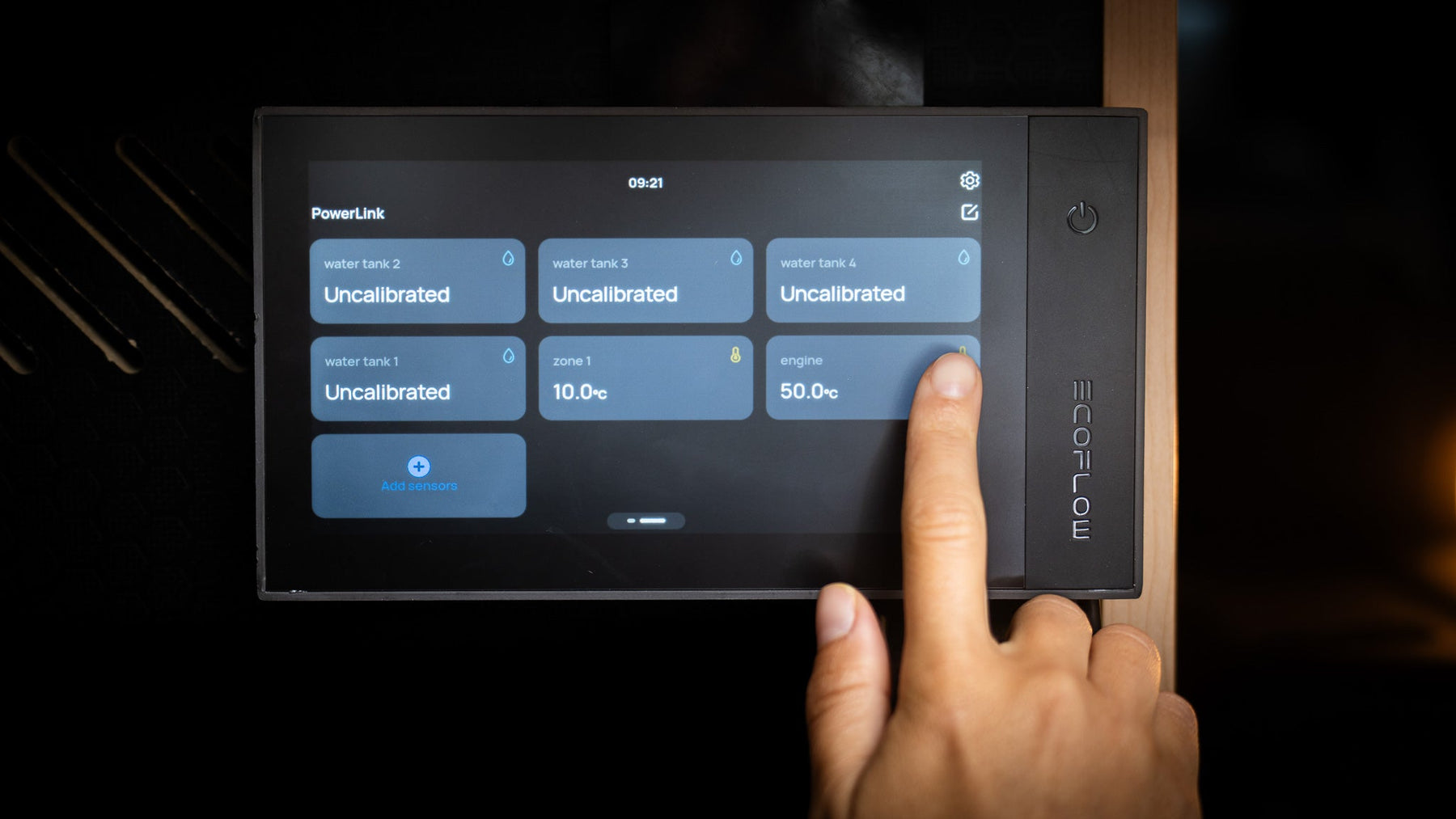

Power Kit Console (7-in.) - Gen 1
|
Touch Screen (Diagonal Measurement)
|
7 Inch (6x3.4in) (Width x Height)
|
|
Power Supply Voltage
|
12 VDC
|
|
Operating Temperature (C)
|
-20℃-60℃
|
|
Operating Temperature (F)
|
-4°F-140°F
|
|
Tests and Certifications
|
UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC
|
