NW Conversions 11 Gallon Mercedes Sprinter Undercarriage Water Tank (SP-UC-11)
- Fits 2007 - Newer Sprinter passenger side under slider door step area.
- Also fits for the driver side undermount.
- ***Sprinter GAS Engines** Does not work with GAS Engine Sprinter vans unless a Heat Shield (not supplied) is installed between the tank and the exhaust. The exhaust sits closer to the side of the frame on GAS engine Sprinters.
- Tank can be used for fresh or grey water
- 11 Gallon Tank
- Tank is designed not to be pressurised (I.e. Needs to be vented).
- Overall dimensions: 37.5"L x 9.25"H x 12.25"W.
- BPA Free, food grade plastic.
- IAPMO TS-4 Certified
- Tank has (2) 1.5" NPT port and (2) 1/2" NPT ports on end that will face the rear of van and (1) 1.5" NPT port on top

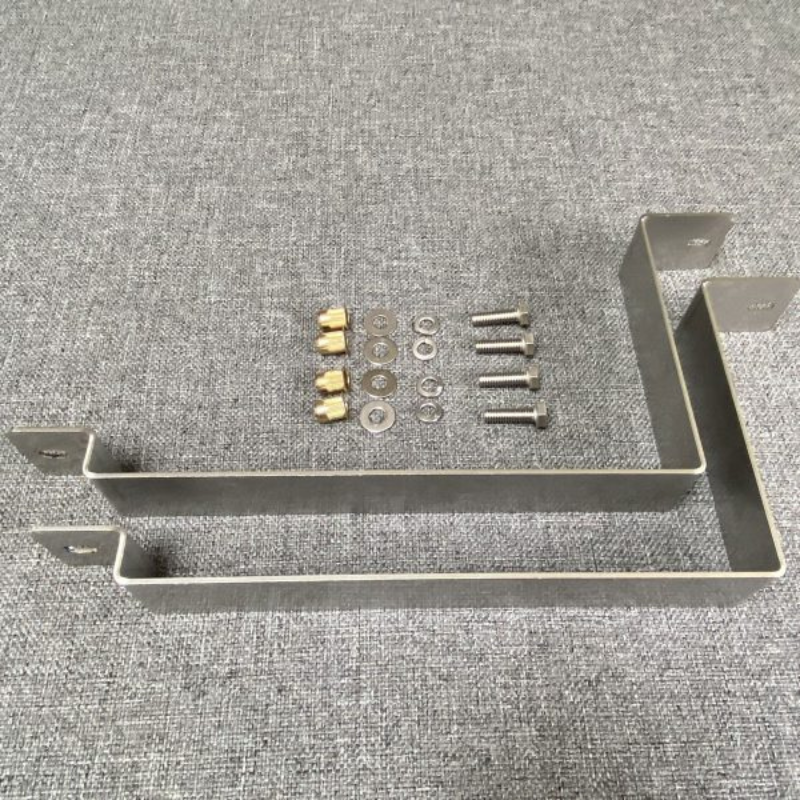

- *(2) Stainless steel Brackets, Stainless steel 3/8" hardware, and 3/8" rivnuts included. (17/32" Drill Bit)
- This will require a rivnut tool. Rivnut tool Not included.
- Fits with AMP Research power step
- RETURNS are accepted up to 90 Days if the tank has not been installed or altered in any way. The tank will need to be shipped back in the box purchased in and tracking information provided. 20% restocking fee. Customer is responsible for return shipping.
- Made in the USA

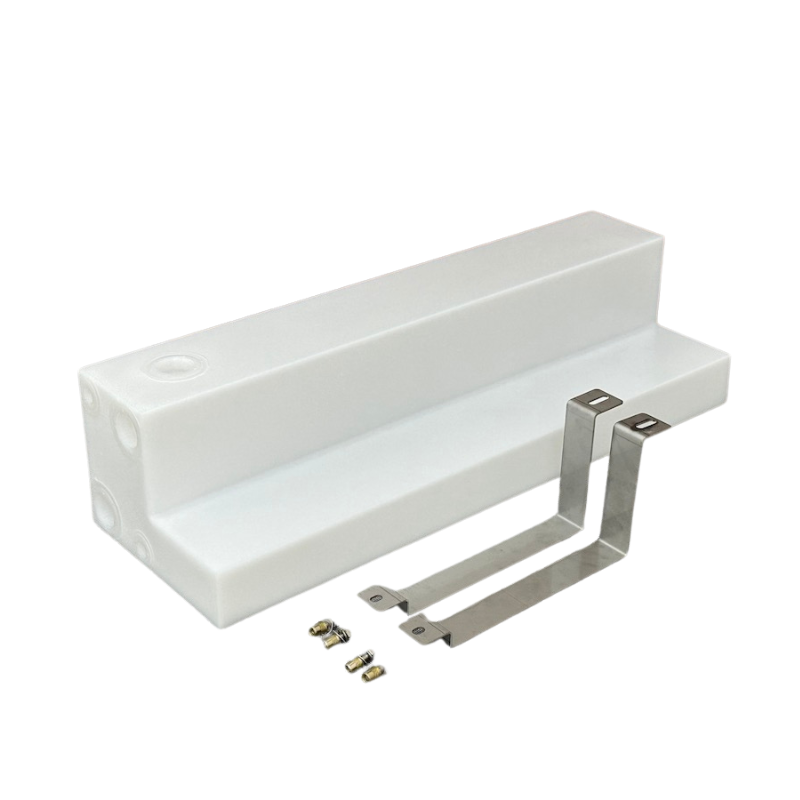

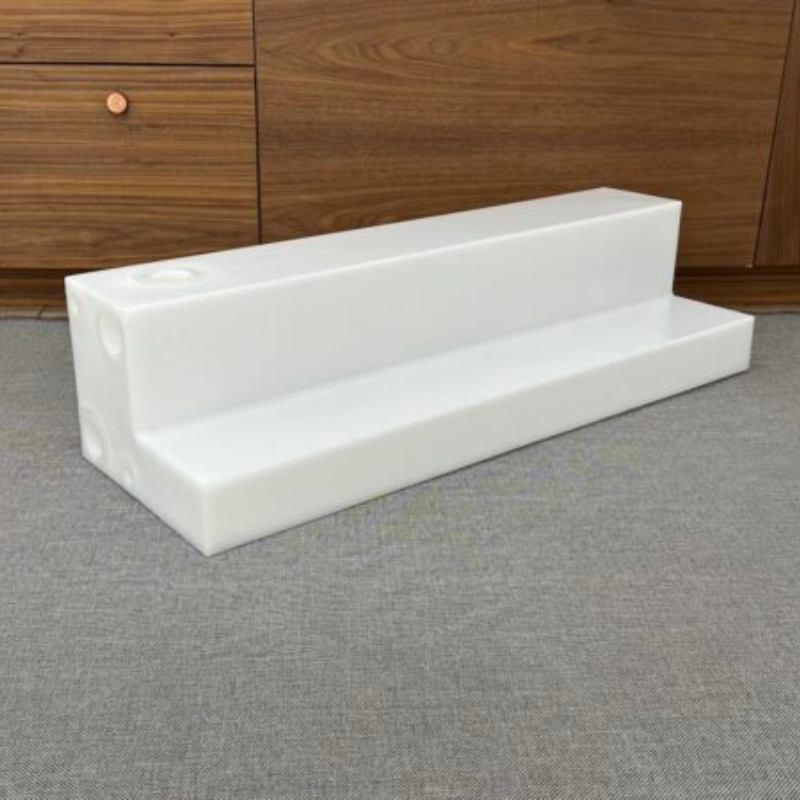

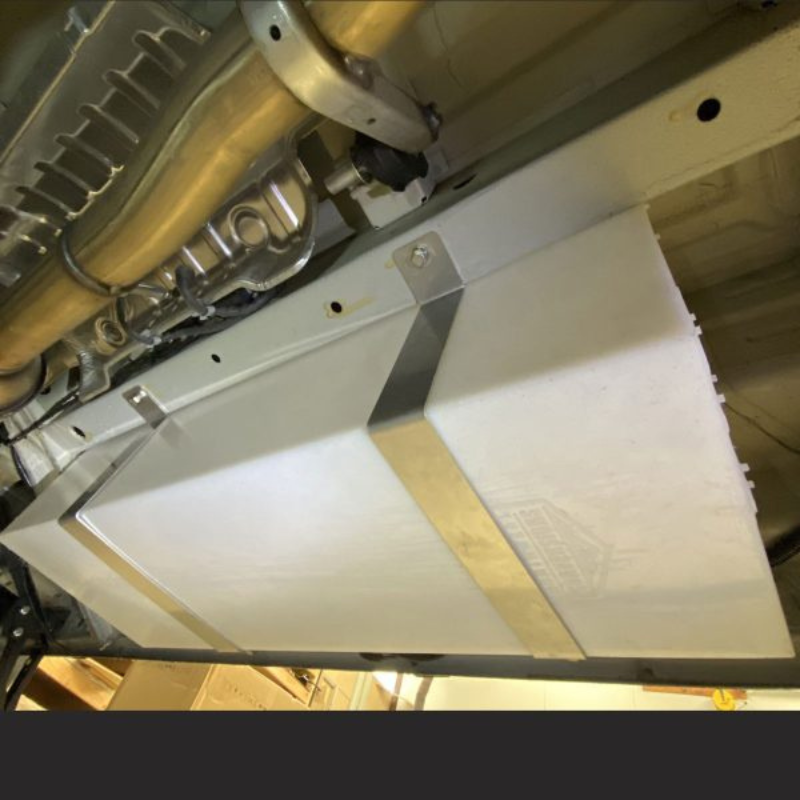

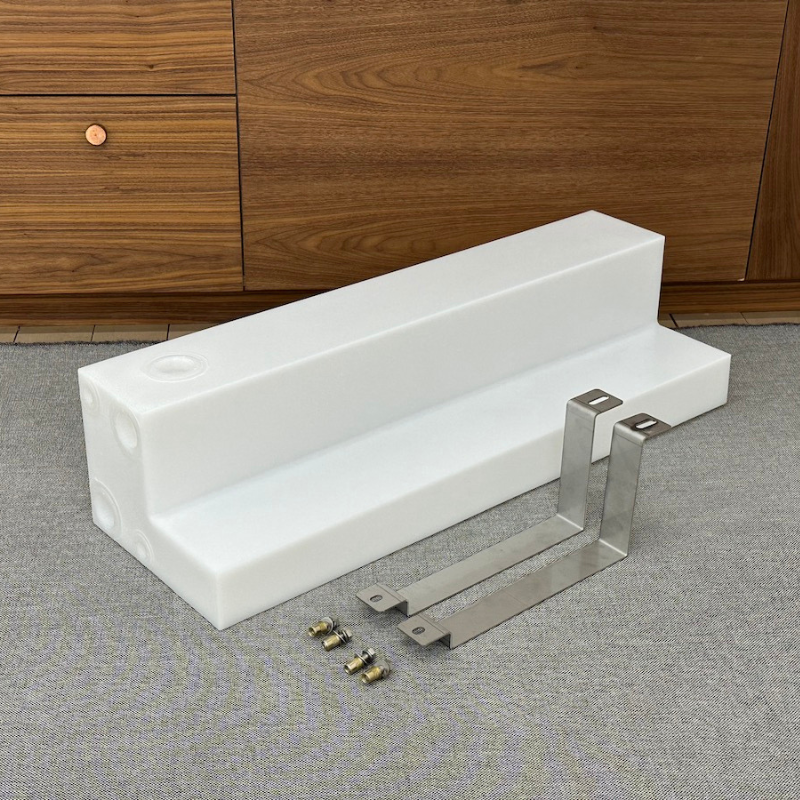

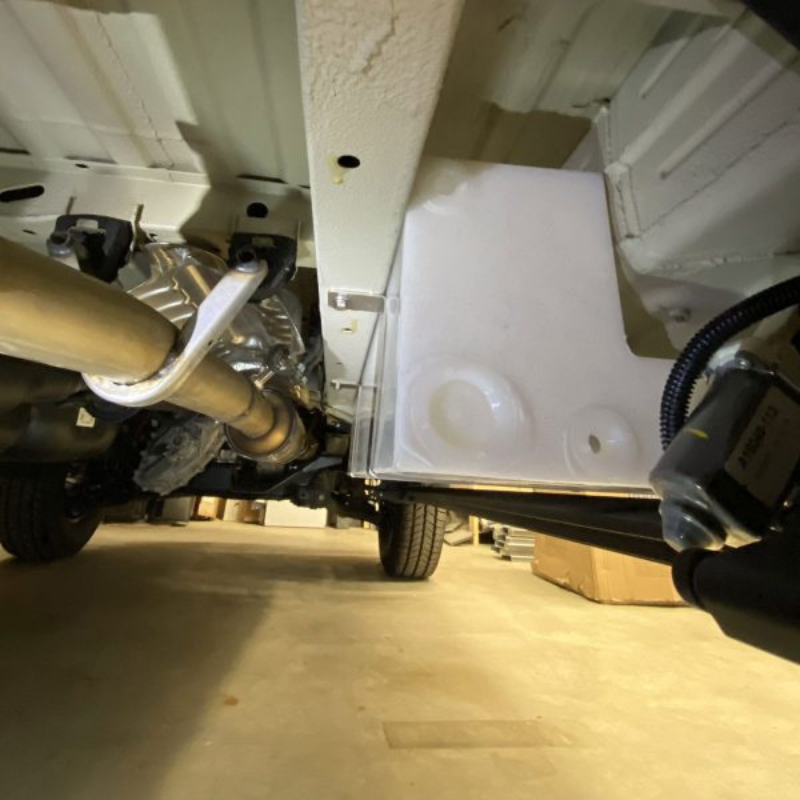

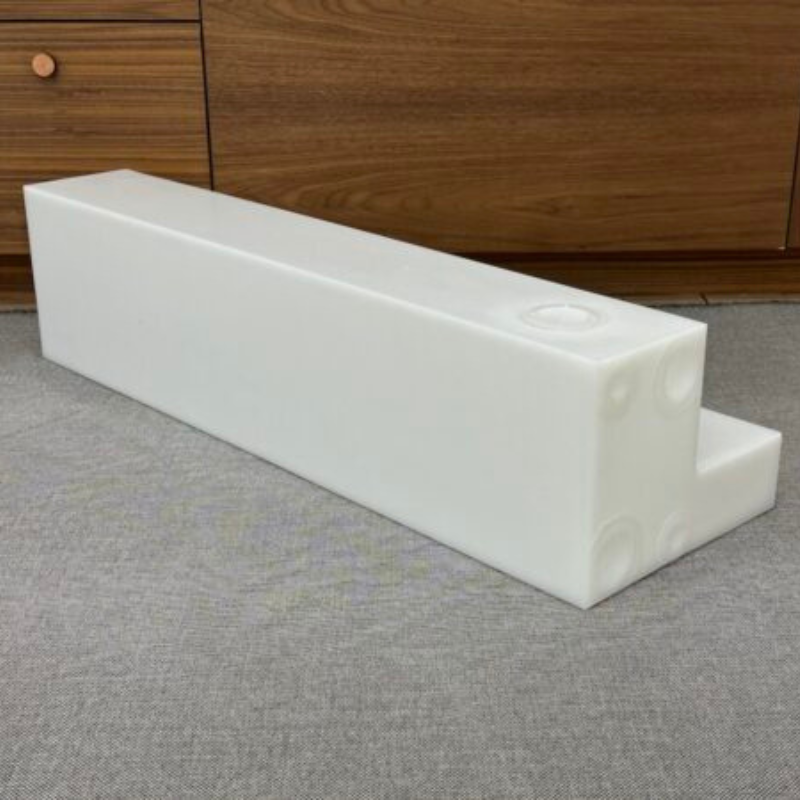

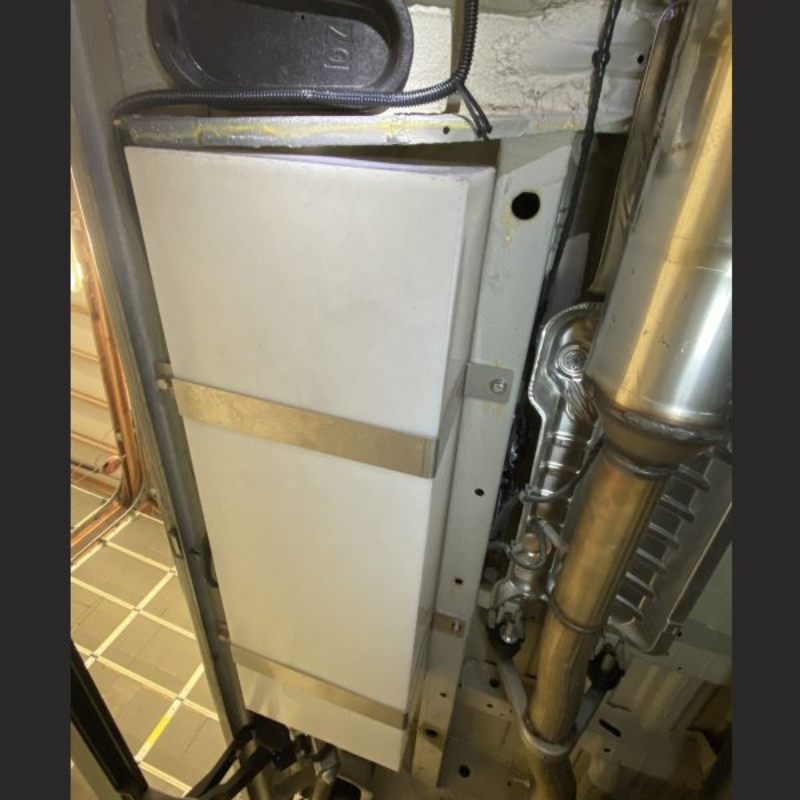

The 11 gallon Sprinter undercarriage tank is designed to fit under the slider door area. (2) Stainless steel laser cut straps, hardware and rivnuts are included. Tank fits Mercedes Sprinter 2007-present. It may fit other makes and models as well.
Weight: 23 lbs
Dimensions: 48 × 15 × 10 in
