NW Conversions 36 Gallon Wheel Well Water Tank - Centered (SP-C-36)
- 36 Gallon Water Tank (SP-C-36)
- Centered over the wheel well

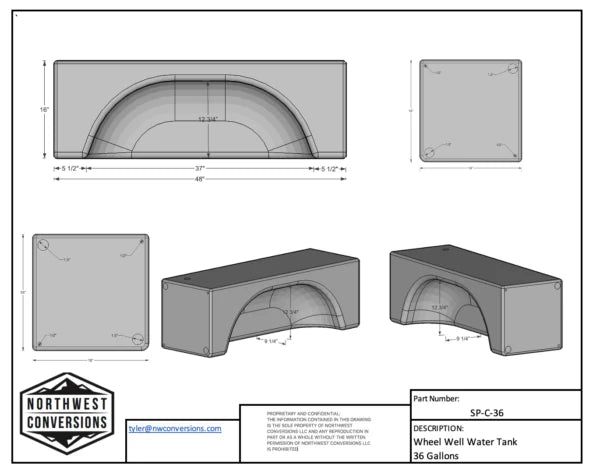

- 48” long, 16” deep, 16” tall
- Designed to fit Sprinter Van 2500
- TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
- **PROMASTER** needs to be elevated 3.5" to fit the large wheel wells.
- Can be placed either driver or passenger side
- These tanks have (2) 1.5” NPT ports and (2) 1/2” NPT ports on each end and (1) 1.5” NPT port on top that can be used for fill or sensor.
- Tank is designed not to be pressurized (I.e. Needs to be vented).
- Tanks are made from BPA Free Food Grade Plastic
- IAPMO TS 4 Tested and Certified
- ***Please allow up to 10 days for processing. ***
- RETURNS are accepted up to 90 Days if the tank has not been installed or altered in any way. The tank will need to be shipped back in the box purchased and tracking information provided. 20% restocking fee.
- Made in the USA

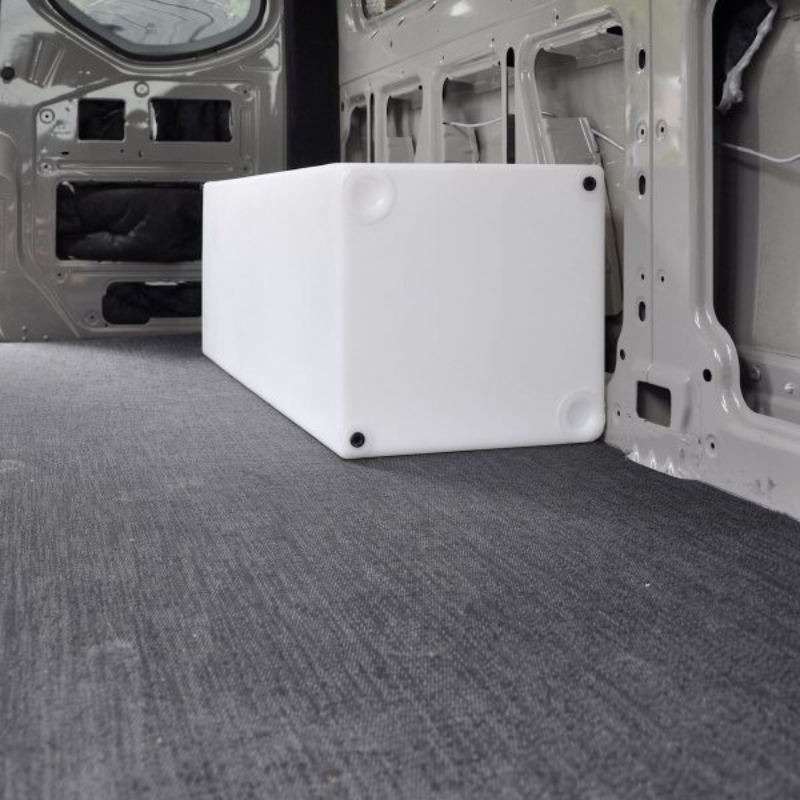

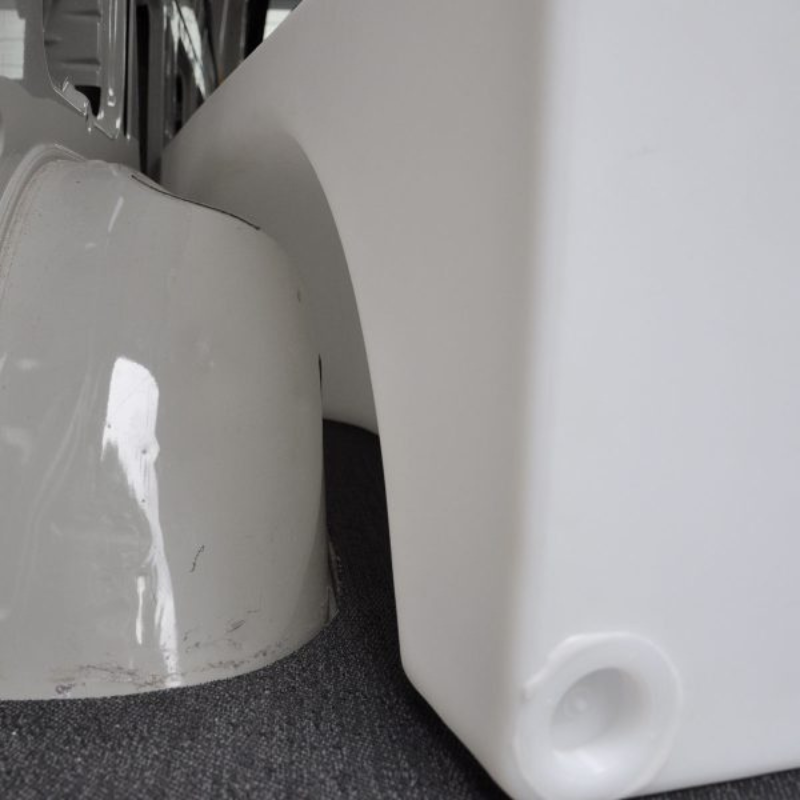

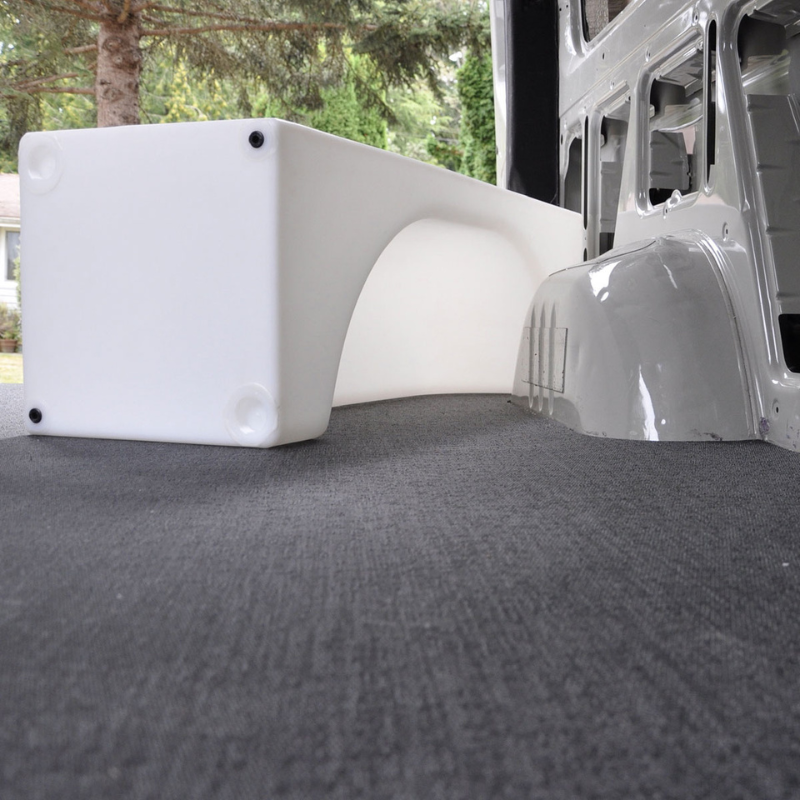

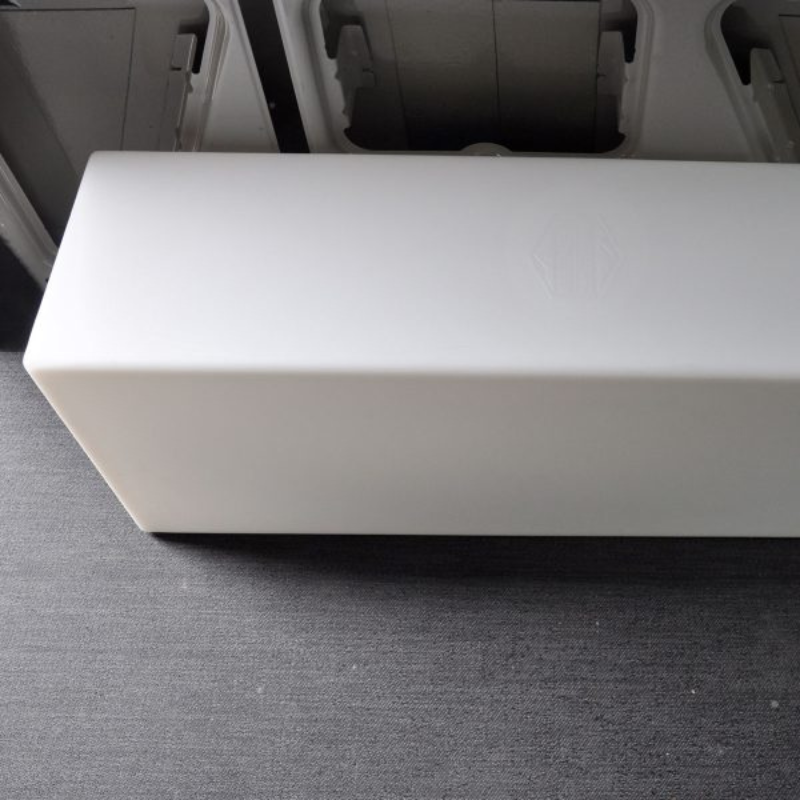

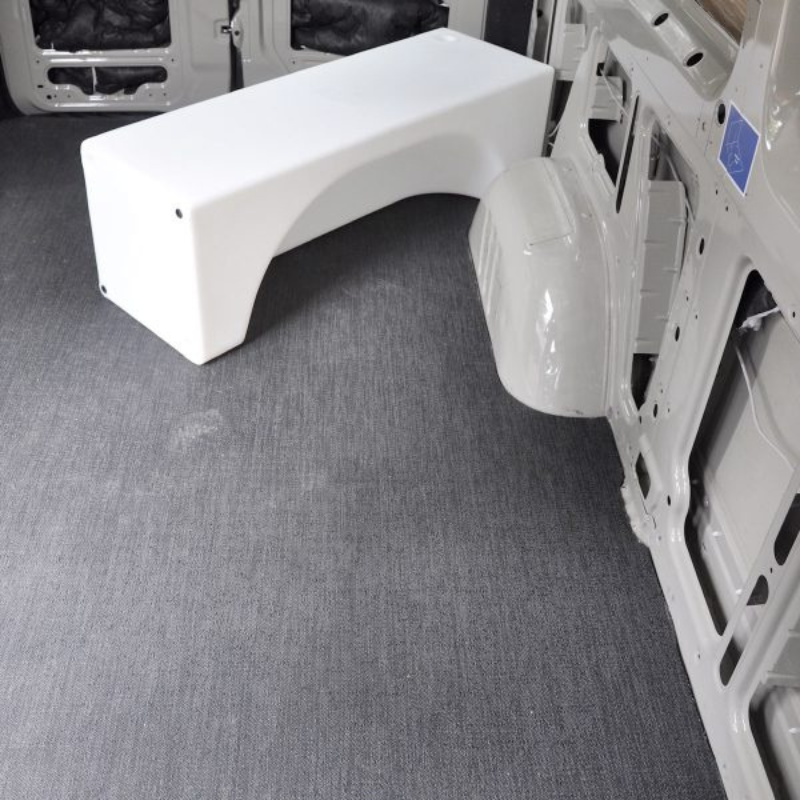

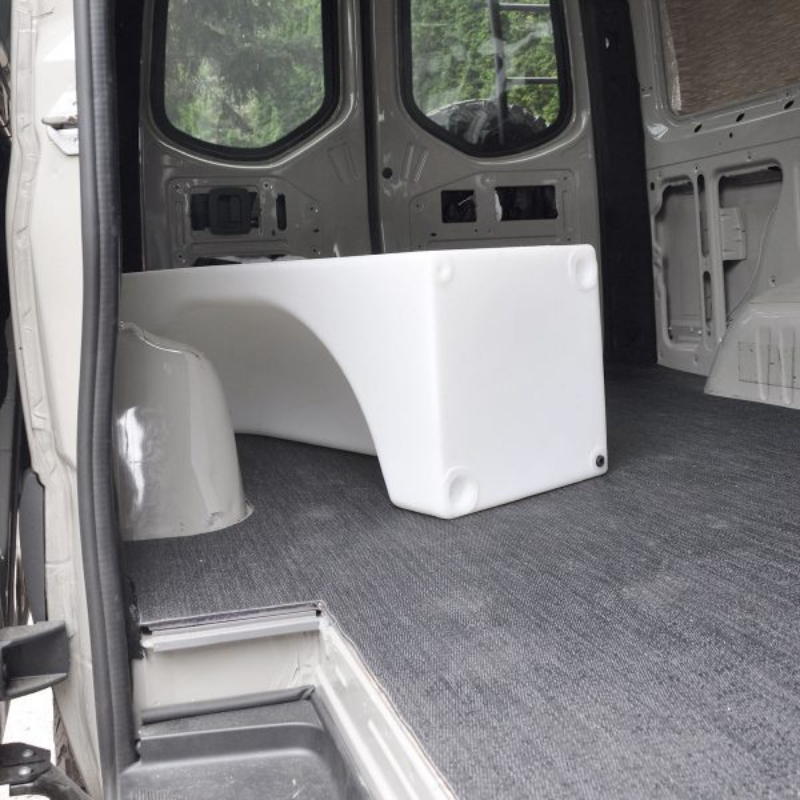

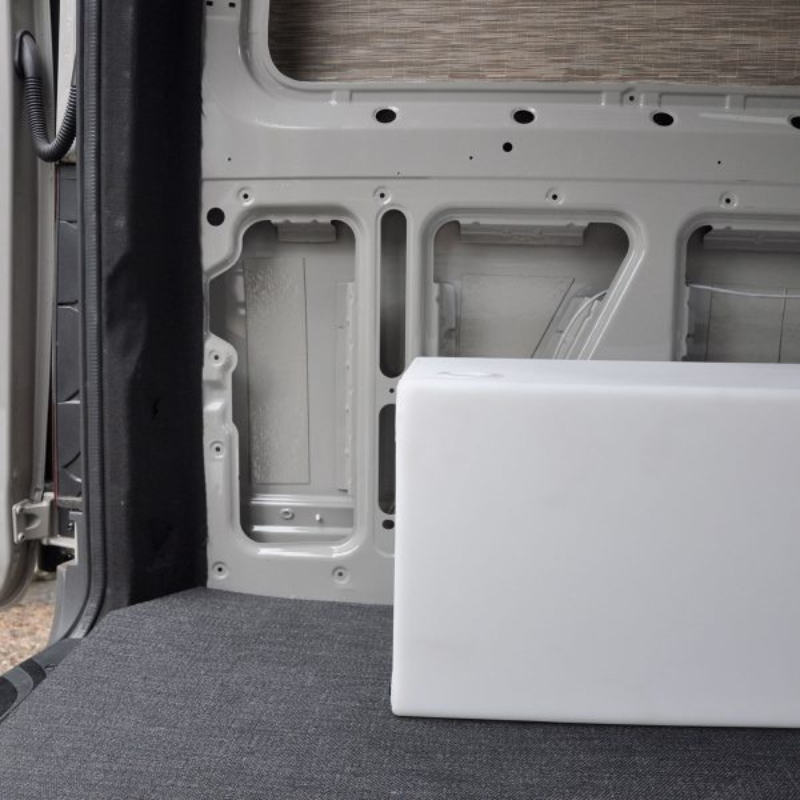

The 36 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500, Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models.
Check out exterior tanks: Additional Undercarriage 16 gallon water tank or The 11 Gallon Sprinter Undercarriage Water Tank
Weight: 31 lbs
Dimensions: 48 × 16 × 16 in
