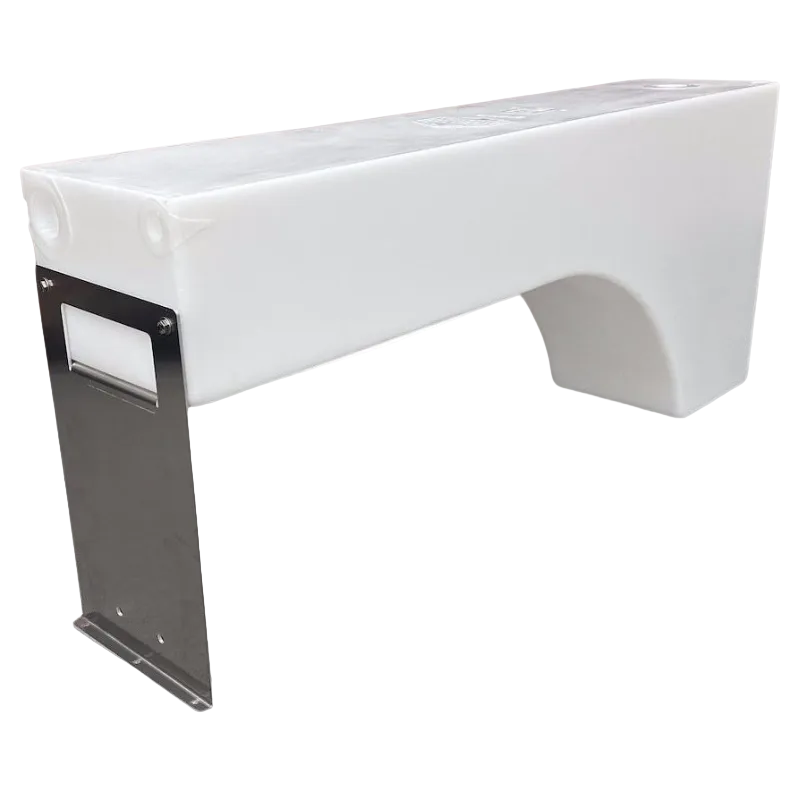

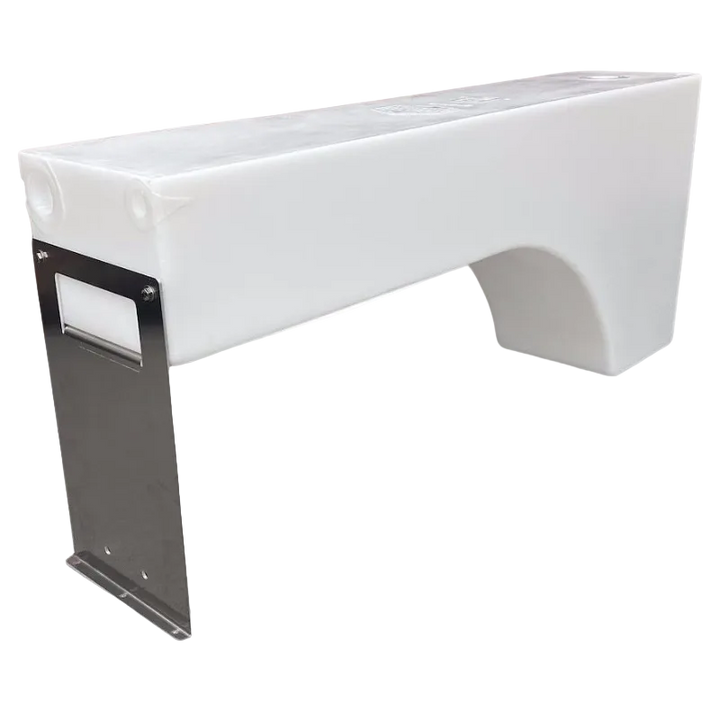

19-Gallon Slim Dually Wheel Well Water Tank (SP-DU-19)
19-Gallon Slim Dually Wheel Well Water Tank (SP-DU-19)
Designed specifically for dual rear wheel vans, this slim tank transforms the space around your wheel well into valuable fresh water storage without taking up any space between the wheel wells - leaving the full width free for cabinetry or gear storage.
Dimensions & Weight

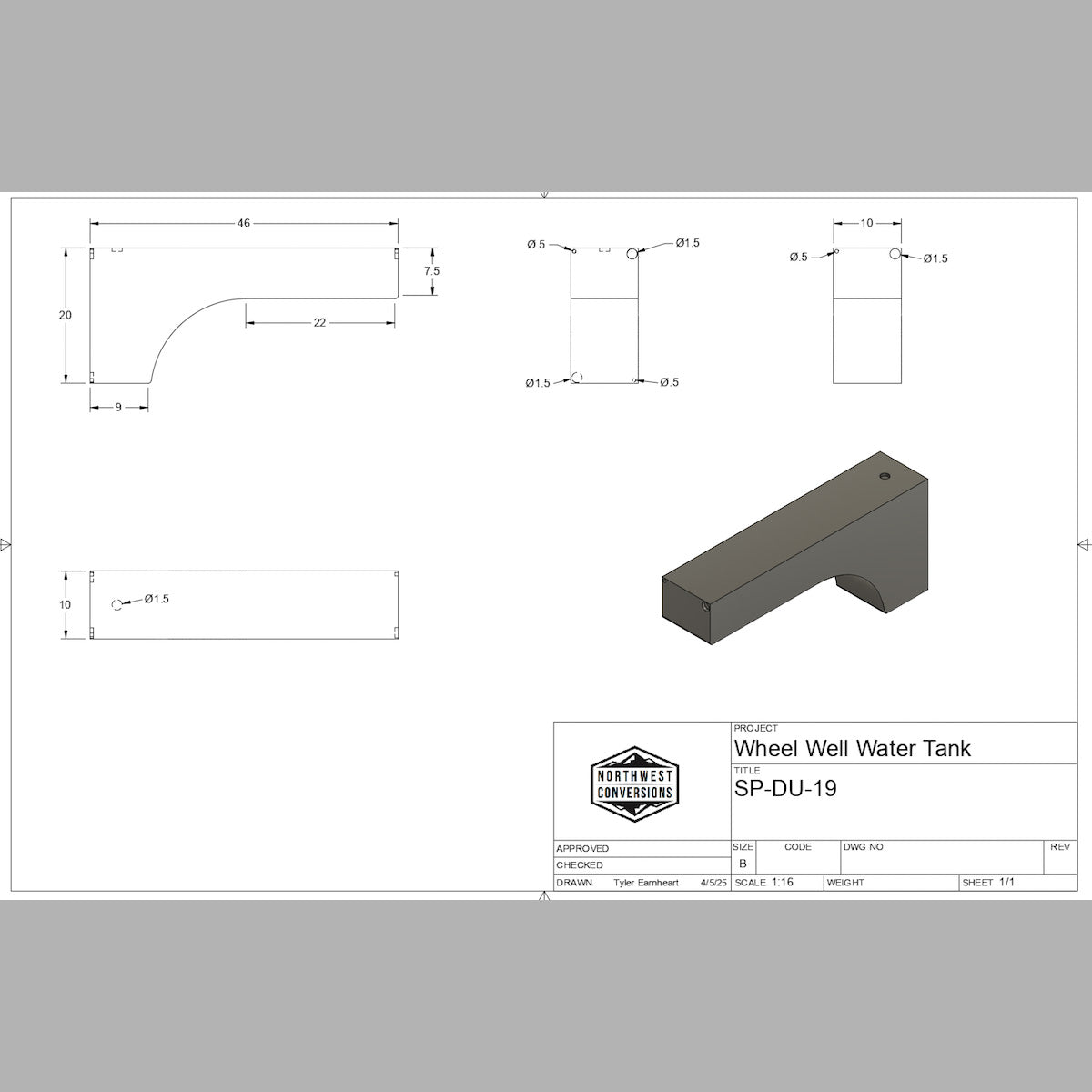

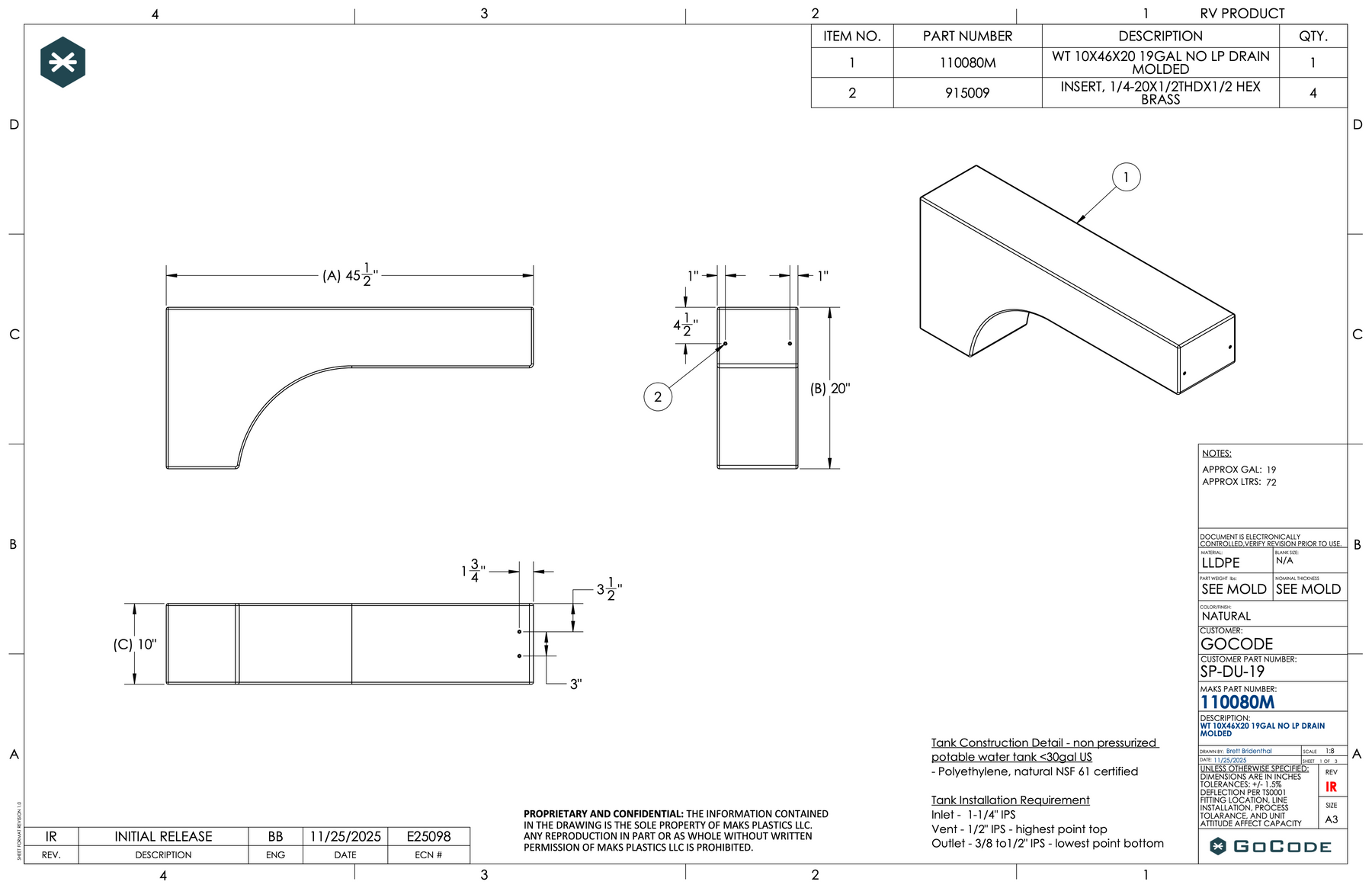

- Size: 46" long × 10" wide × 20" tall
- Capacity: 19 gallons
- Weight: 27 lbs
Ports & Plumbing
- (2) 1.5" NPT ports on the larger end, pre-marked, drill out to use
- (2) 1/2" NPT ports on the larger end
- (1) 1.5" NPT port on the end above the wheel well, pre-marked, drill out to use
- (1) 1/2" NPT port on the end above the wheel well
- (1) 1.5" NPT port on top, pre-marked, drill out to use
- Not designed for pressurized systems, must be vented
Included With Every Order
- Support plate and mounting hardware included with every order
Materials & Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
Vehicle Compatibility
- Sprinter 2500 & 3500 Dually direct fit (also fits Sprinter T1N)
- Transit 2500 & 3500 Dually fits with slightly more room around the wheel well for insulation
- ProMaster requires approximately 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models
- Can be placed on either driver or passenger side, positioned in front of or rearward of the wheel well
