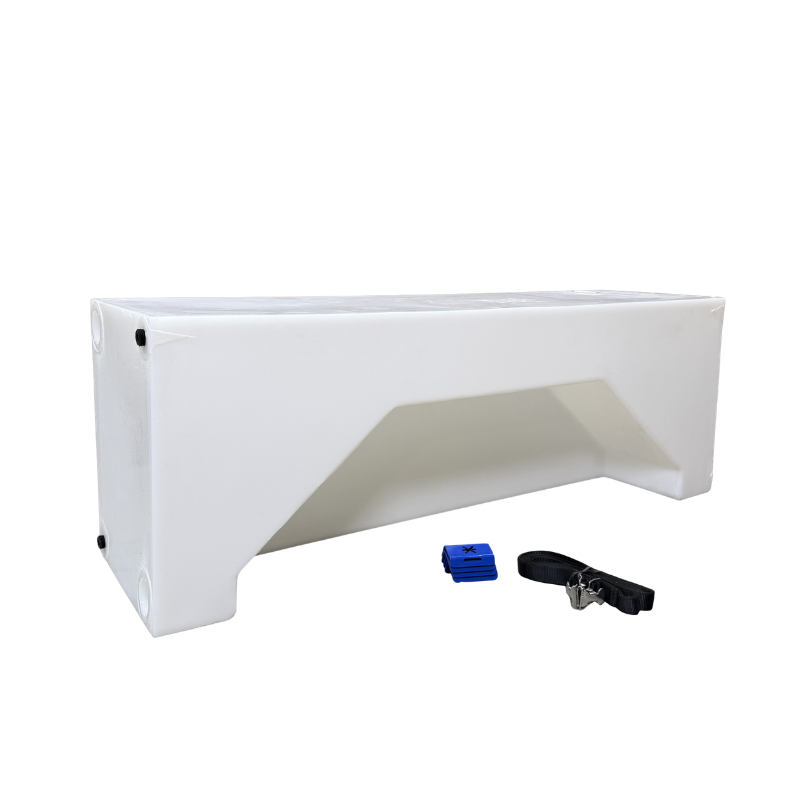

25-Gallon Ford Transit Wheel Well Water Tank - Center (TR-C-24)
About the Product
Designed specifically for the Transit van, this tank fits the wheel well space, keeping your floor plan open while adding water capacity. Sits centered over the wheel well.
Features
Specifications

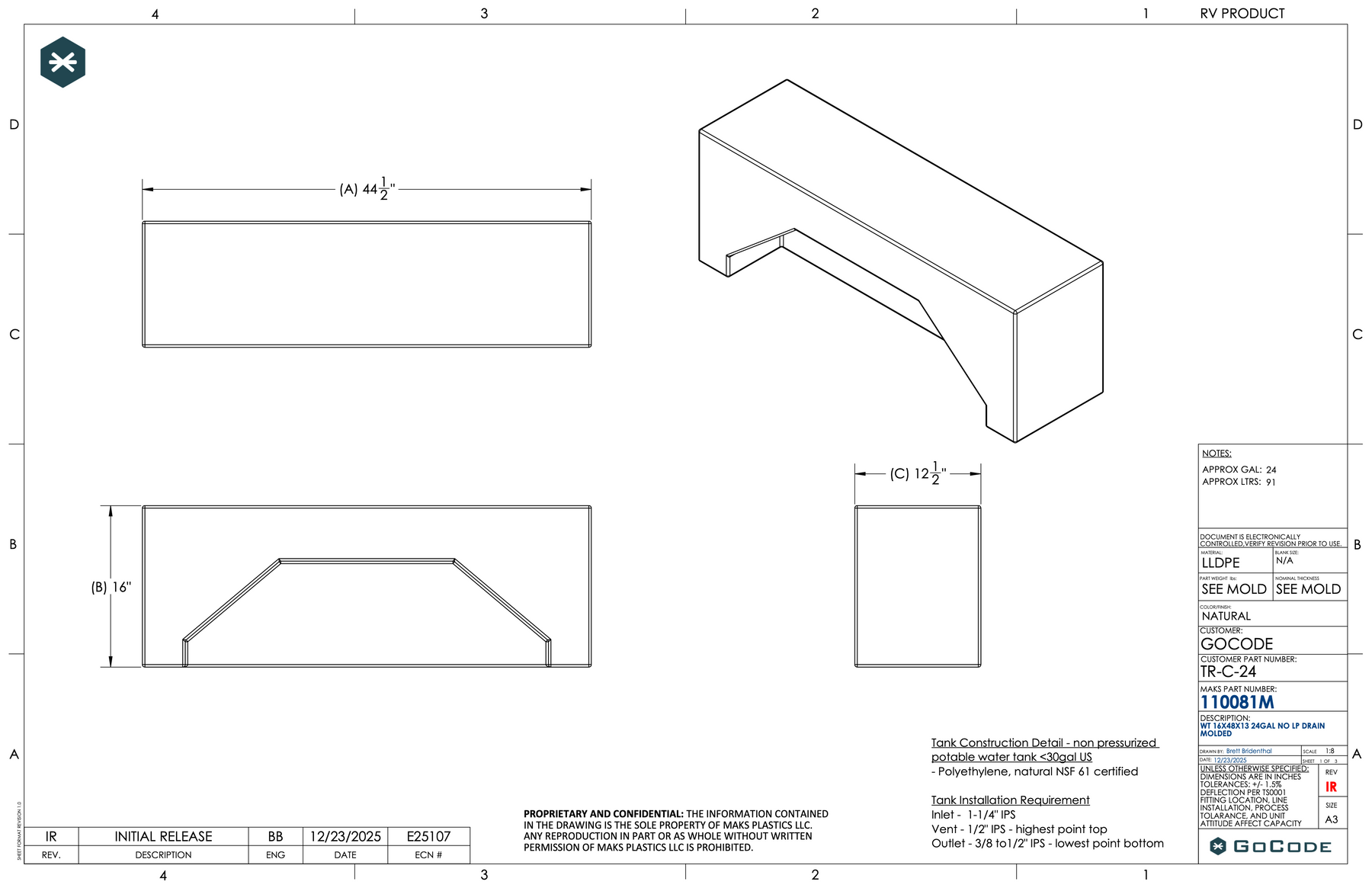

- Size: 44.5" long × 12.5" wide × 16" tall
- Capacity: 25 gallons
- Weight: 28 lbs
- Recommended sensor: KUS 154015F, 15" (1.5" NPT threaded)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- Made in the USA
- IAPMO TS 4 Certified
- TEi listed and RVIA approved

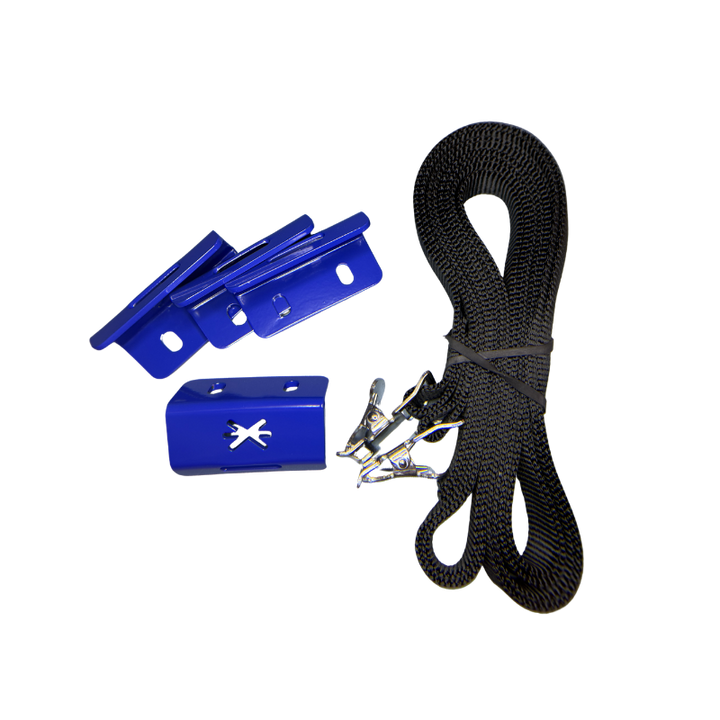

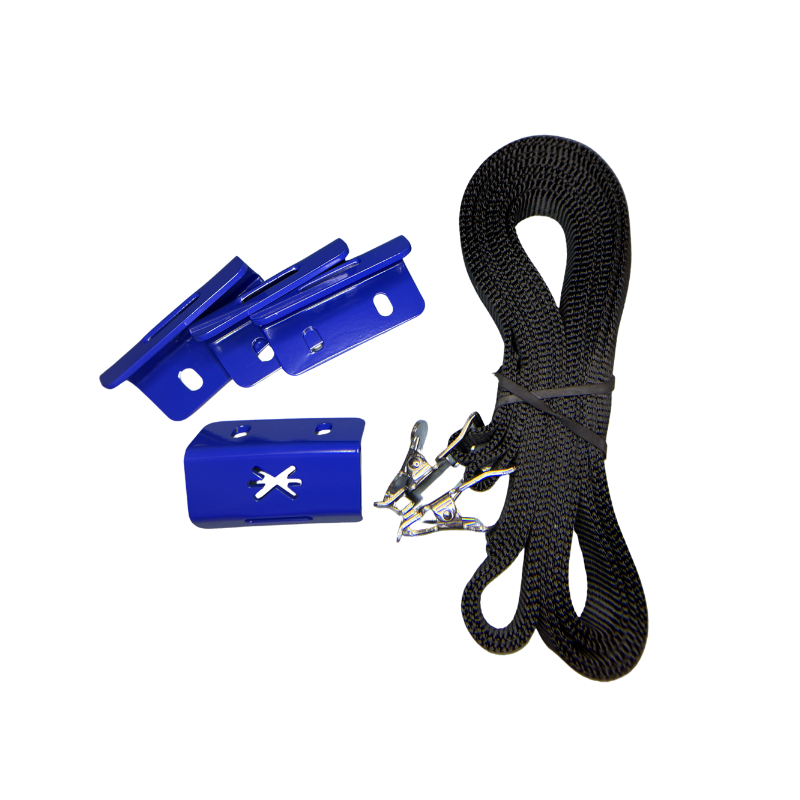

What's Included
- Water Tank
- (x2) Adjustable straps
- (x4) Mounting brackets
Ports & Plumbing
- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Shipping & Lead Time
- Ships in 1-2 business days
Compatibility
- Designed specifically for the Transit van
- Can be placed on either driver or passenger side
