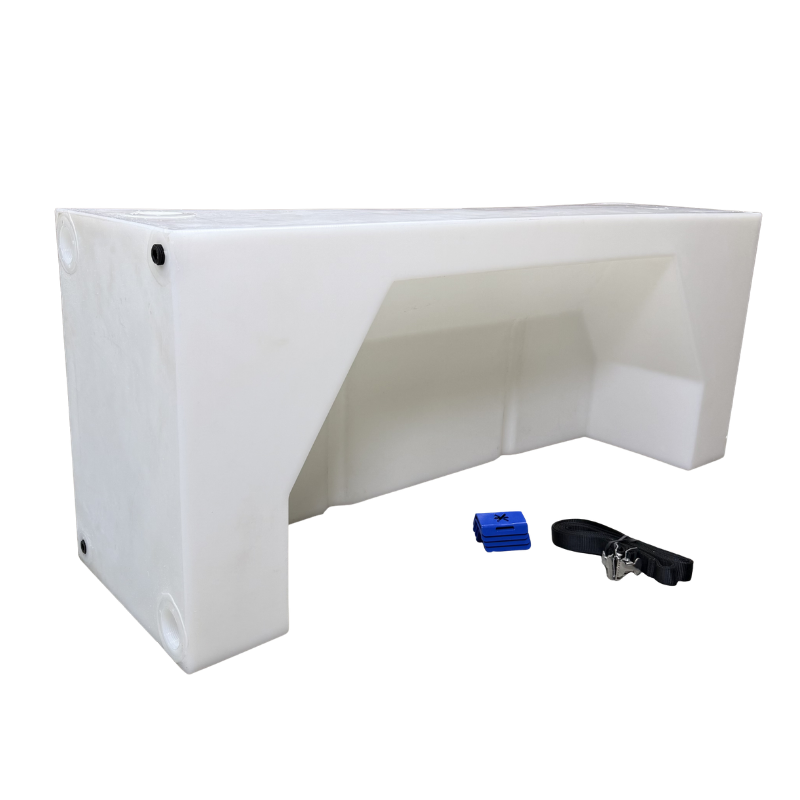

28-Gallon Dodge Promaster Wheel Well Water Tank - Center (PM-C-28)
28-Gallon Wheel Well Water Tank - Centered (PM-C-28)
Designed specifically for the Ram ProMaster, this tank transforms the space around your wheel well into valuable fresh water storage. It contours directly over the wheel housing, letting you build your bed or cabinetry flush against the wall without losing interior volume.
Dimensions & Weight

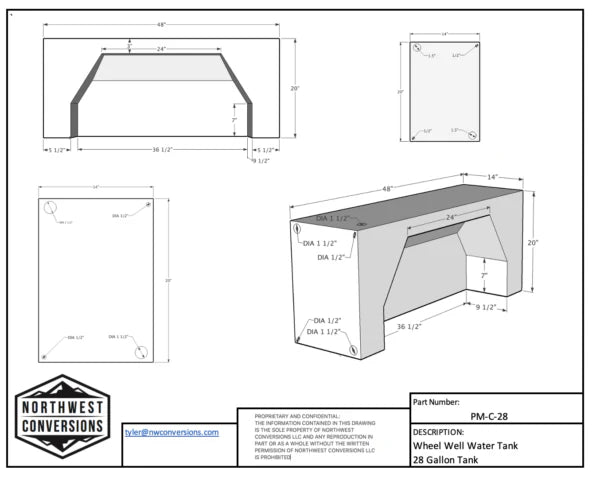

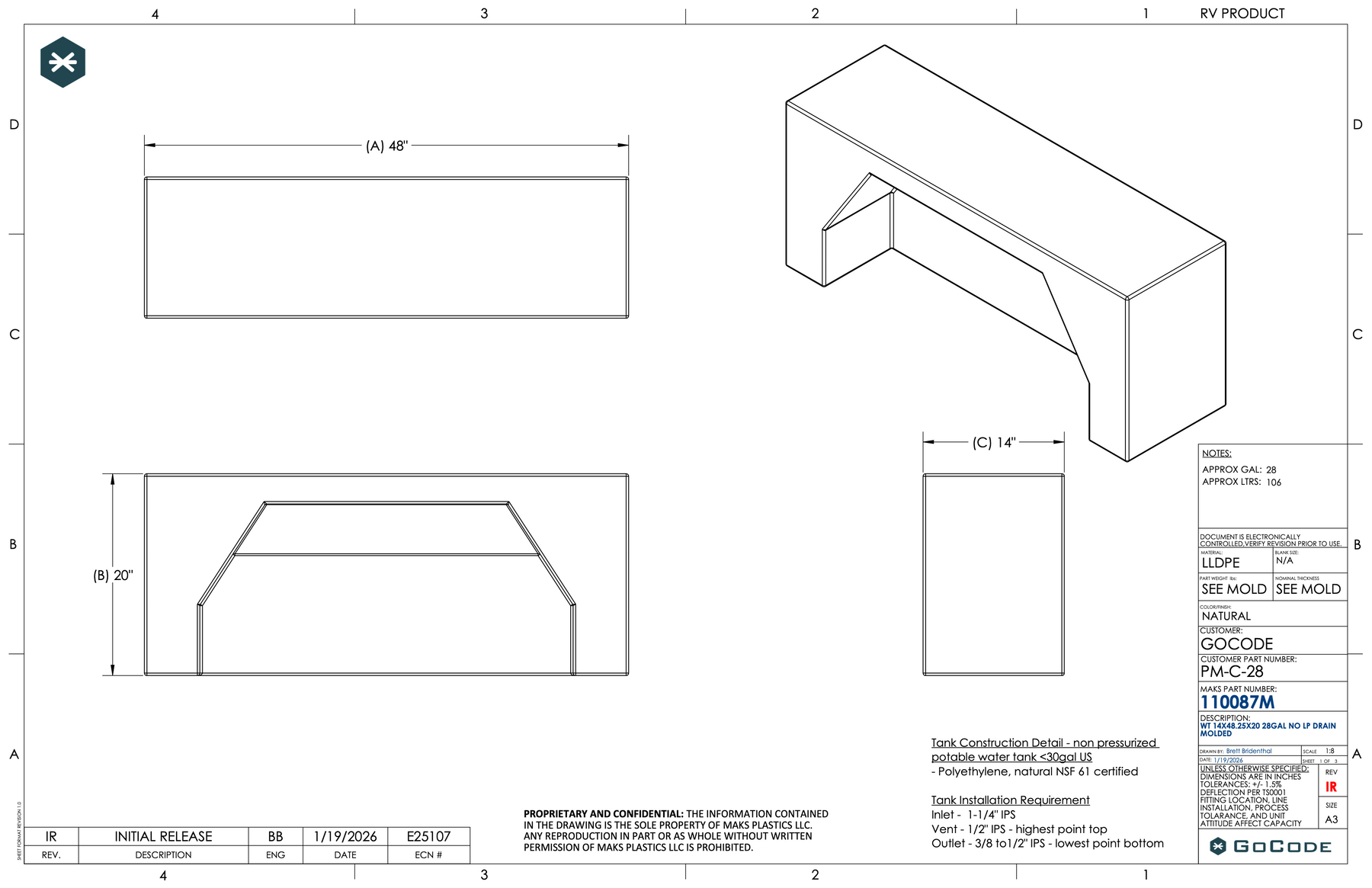

- Size: 48" long × 14" wide × 20" tall
- Capacity: 28 gallons
- Weight: 31 lbs
Ports & Plumbing
- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end, open and ready to use
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
- Not designed for pressurized systems, must be vented

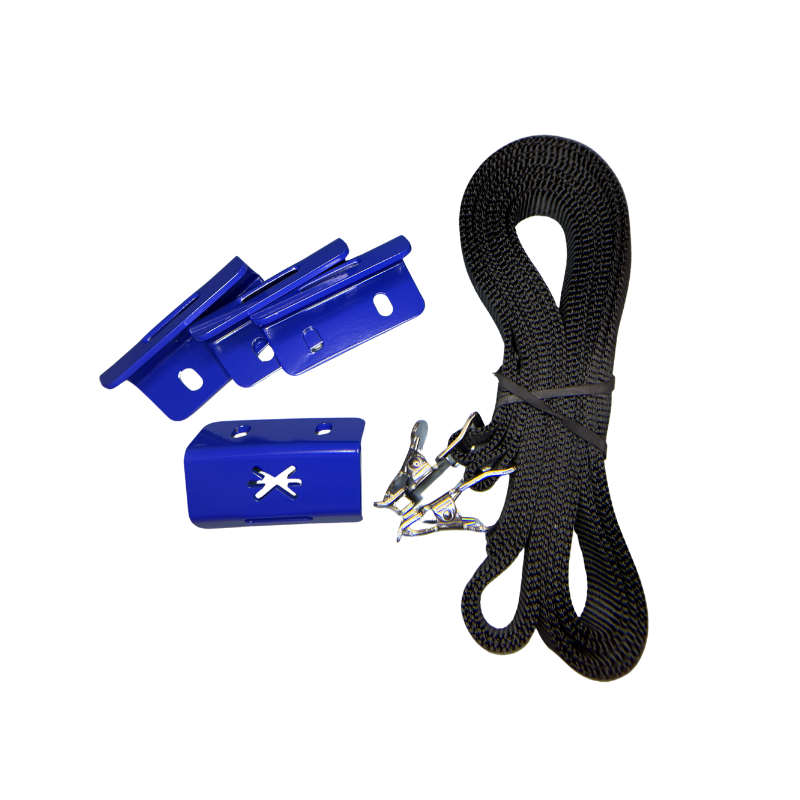

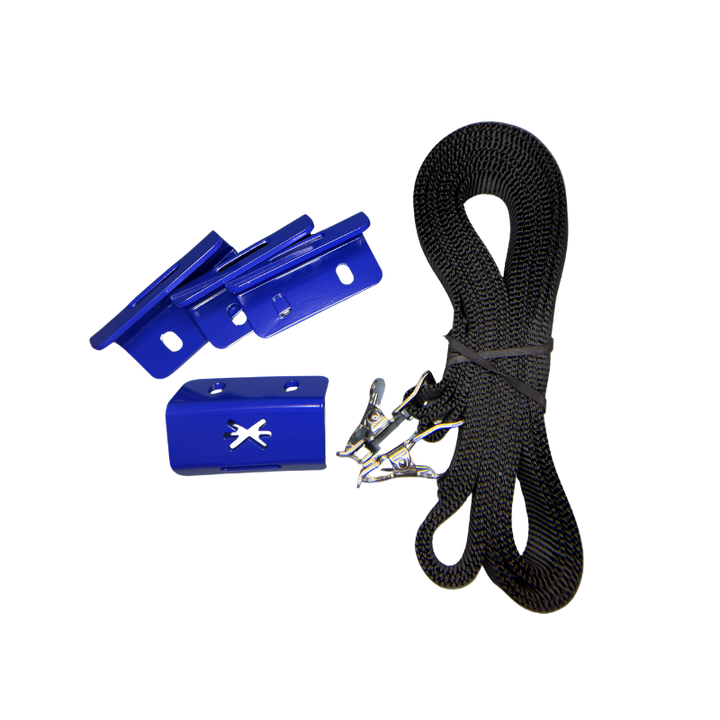

Included With Every Order
- (x2) Adjustable straps
- (x4) Mounting brackets
Materials & Certifications
- BPA-free, food-grade plastic
- Made in the USA
- IAPMO TS 4 Certified
Vehicle Compatibility

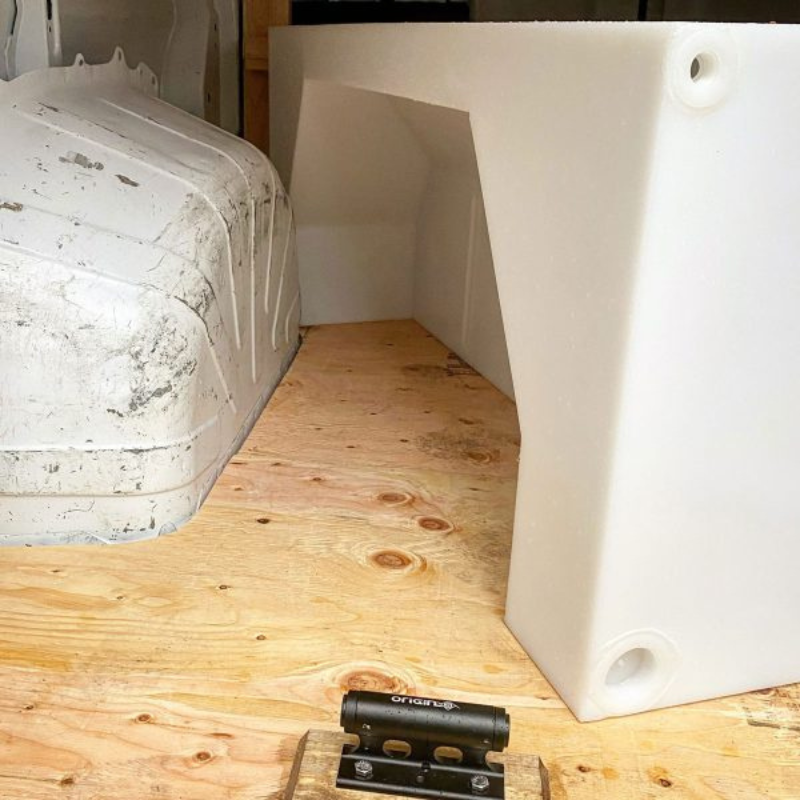

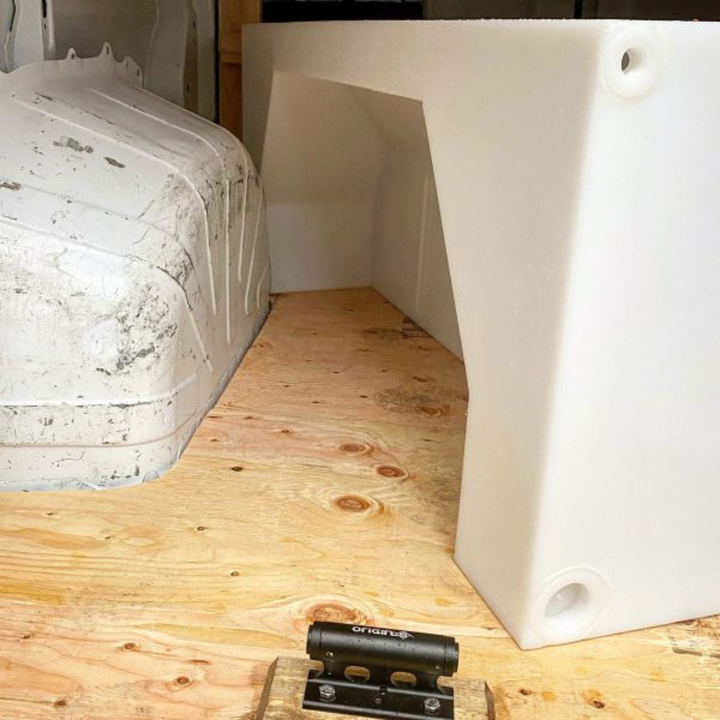

- ProMaster designed for a near-perfect fit over the factory wheel well
- Sprinter & Transit will fit securely with a gap around the top of the wheel well, ideal for insulation or sound deadening
- Compatible with other vehicles such as box trucks and trailers where dimensions allow
- Can be placed on either driver or passenger side
