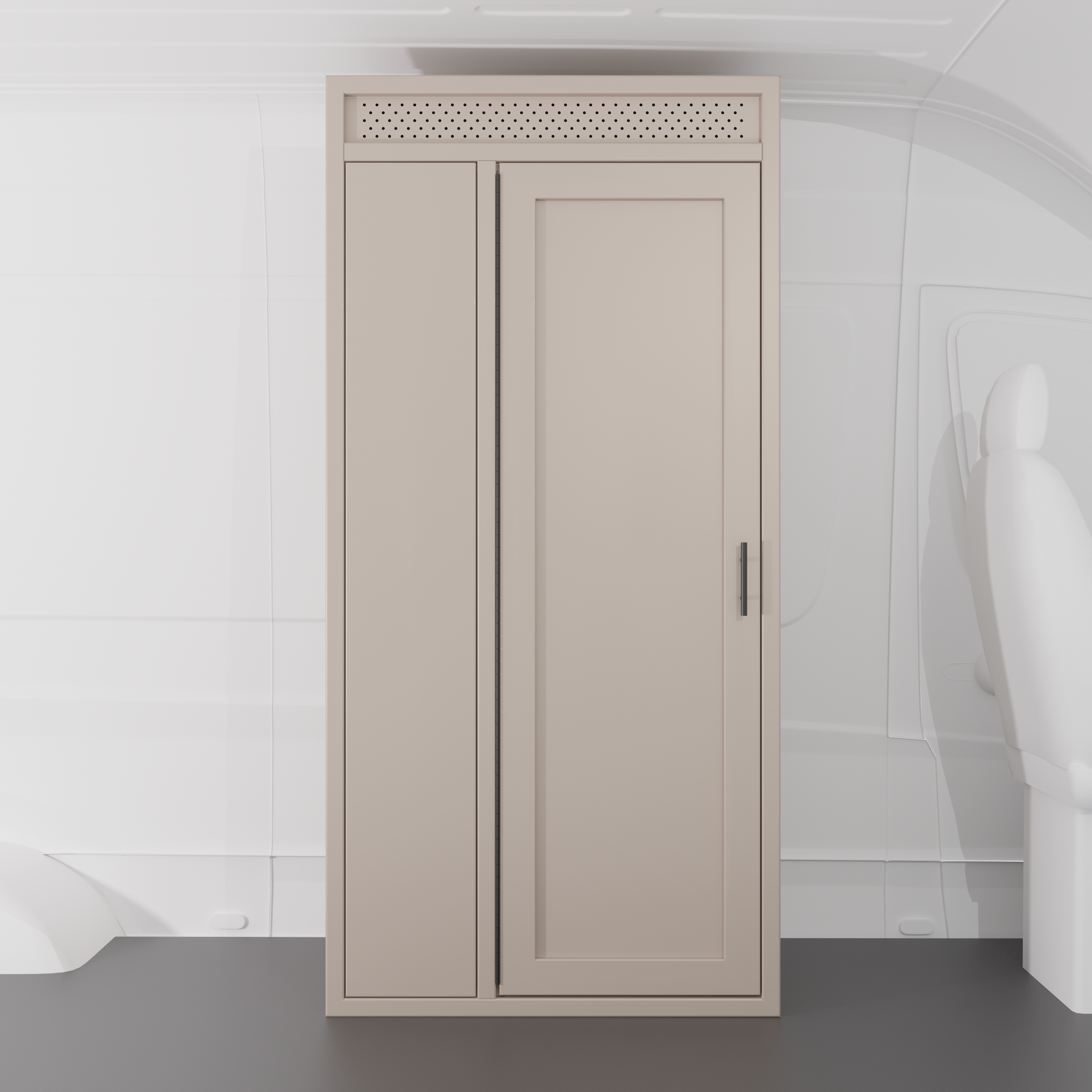

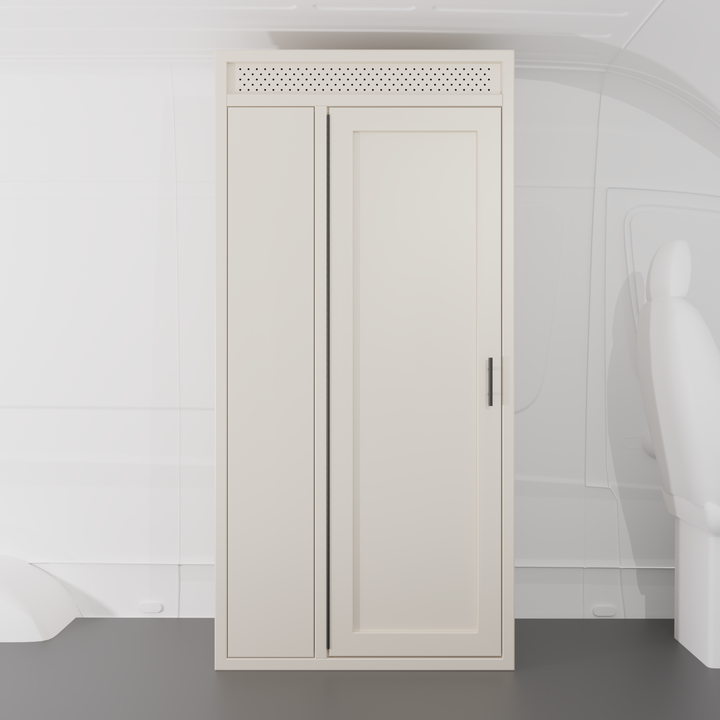

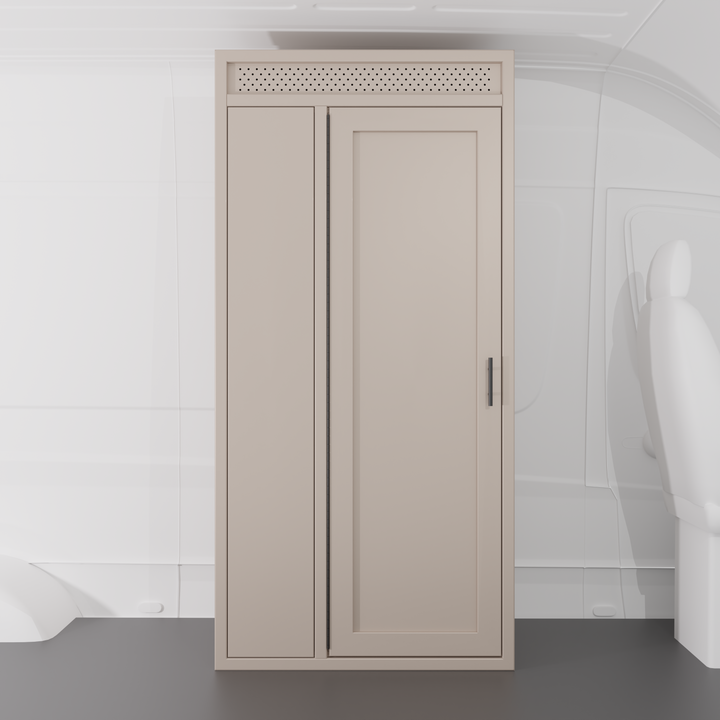

36" Shower - 36" x 24" x 74.5"
The Van Wife Components 36 inch van shower is 36" x 24" x 74.5" (width x depth x height). It is the reason you will always have access to a hot shower, wherever you are. This size is ideal if you want a permanent wet bath with room for a toilet.
About the 36 Inch Van Shower

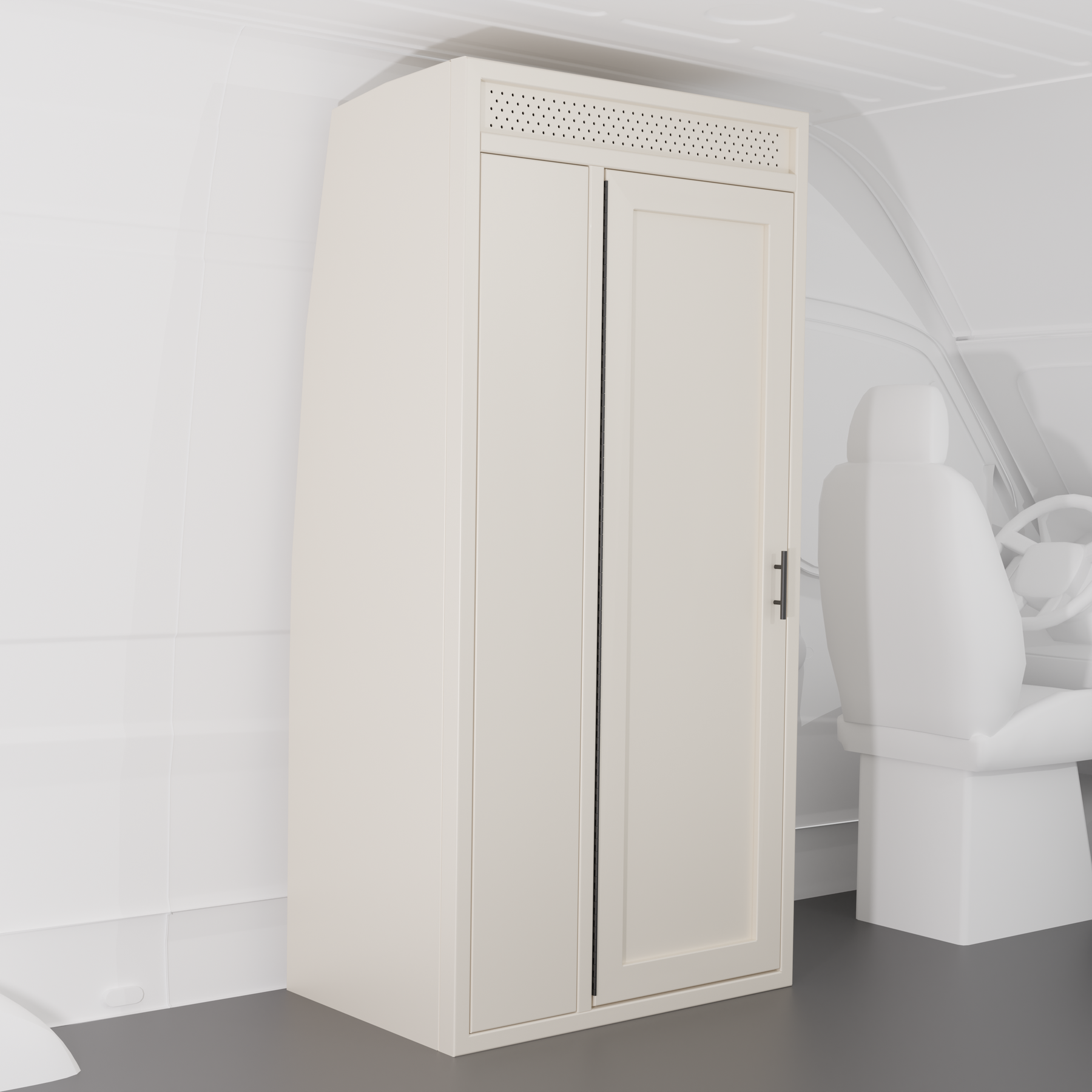

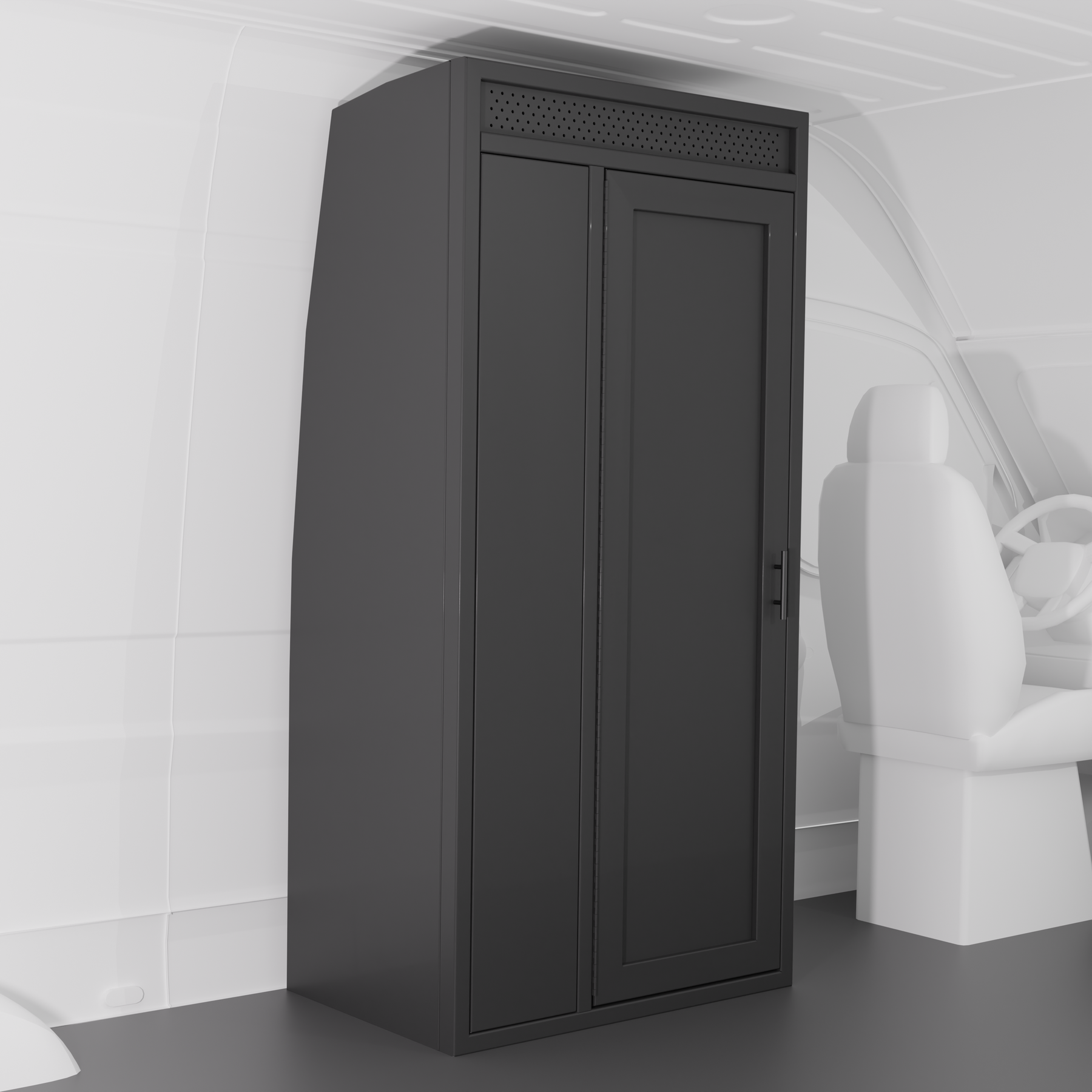

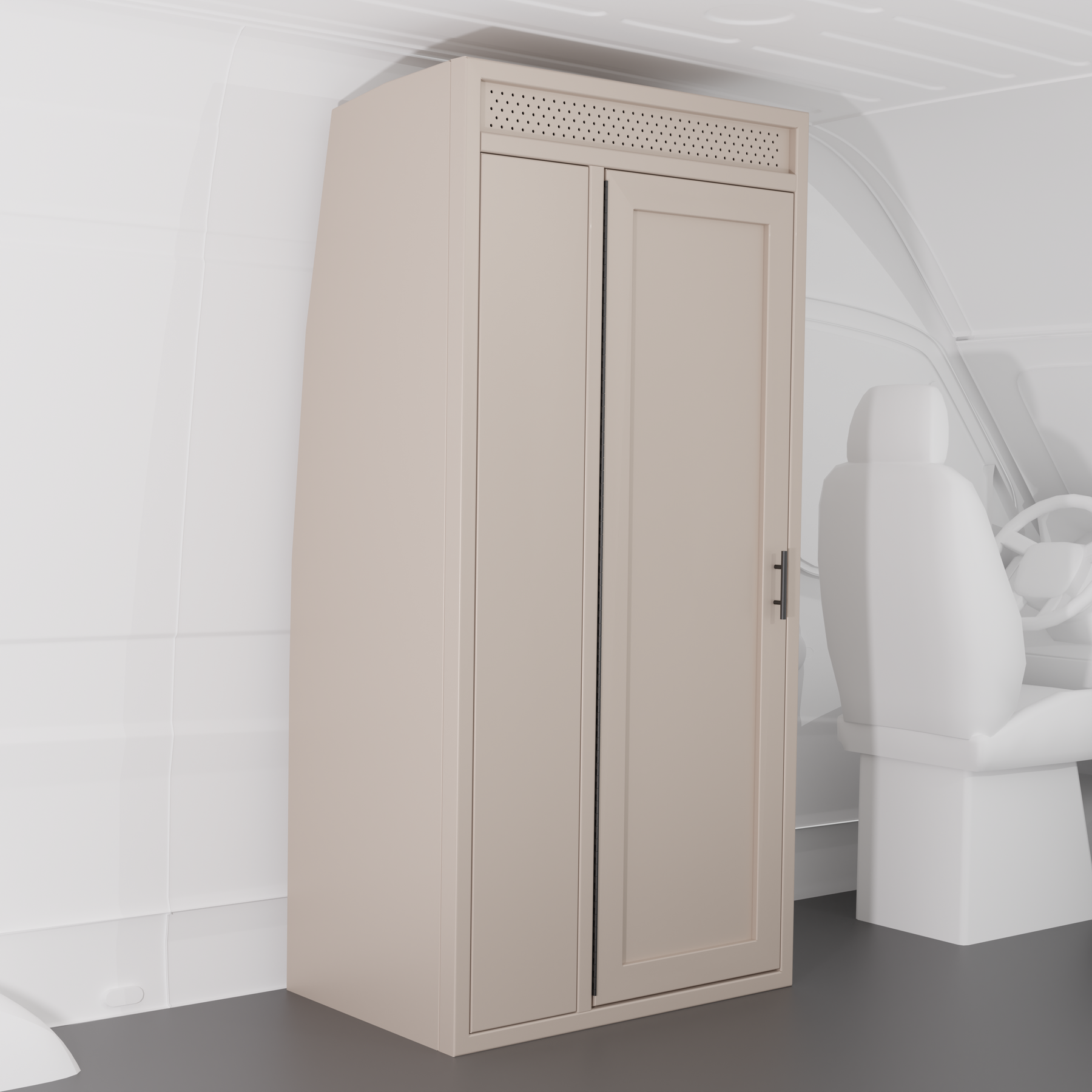

Every panel, including the pan, is powder-coated aluminum built for full-time use. The back wall is angled to maximize headroom while fitting the roof contours of Sprinter, Transit and Promaster vans.

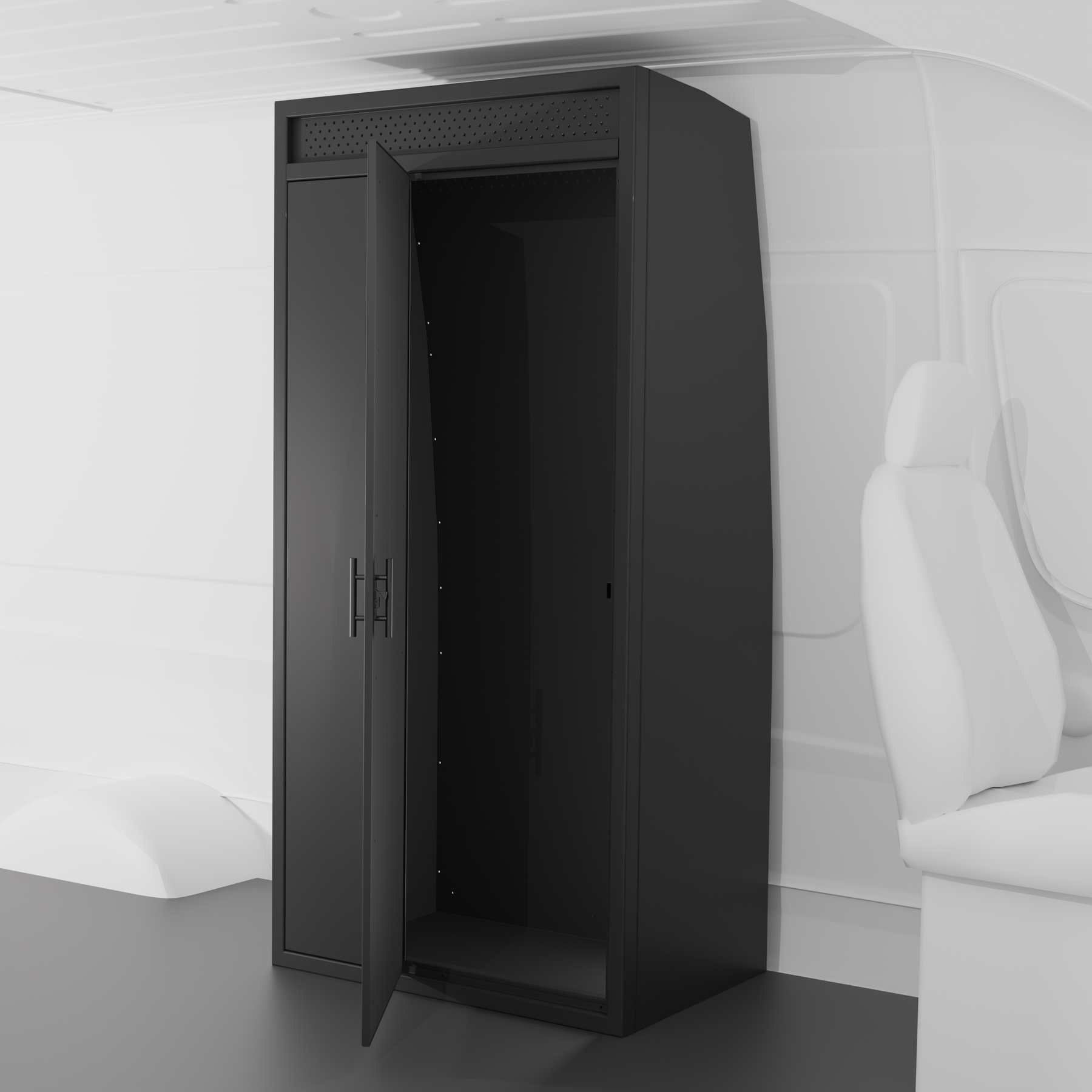

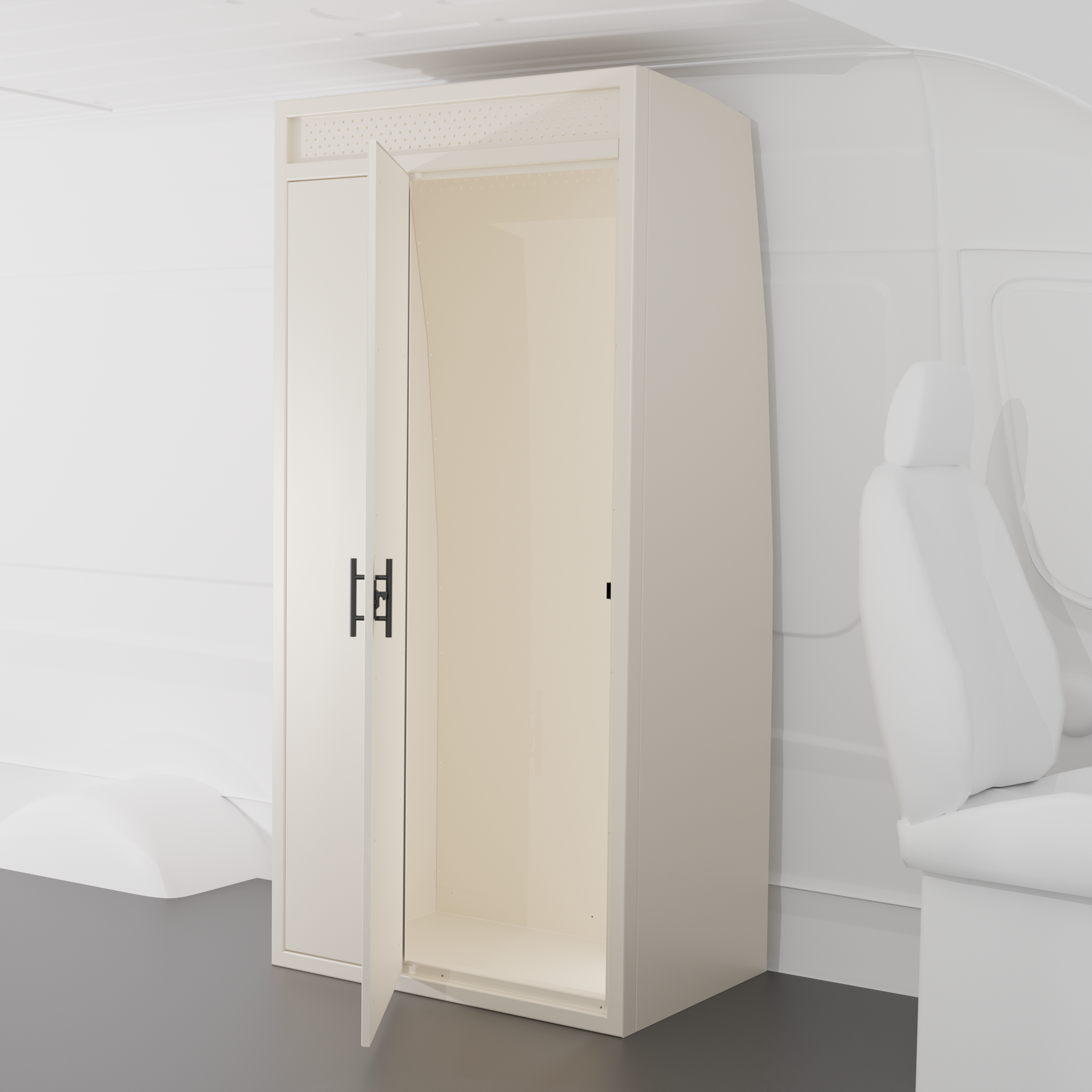

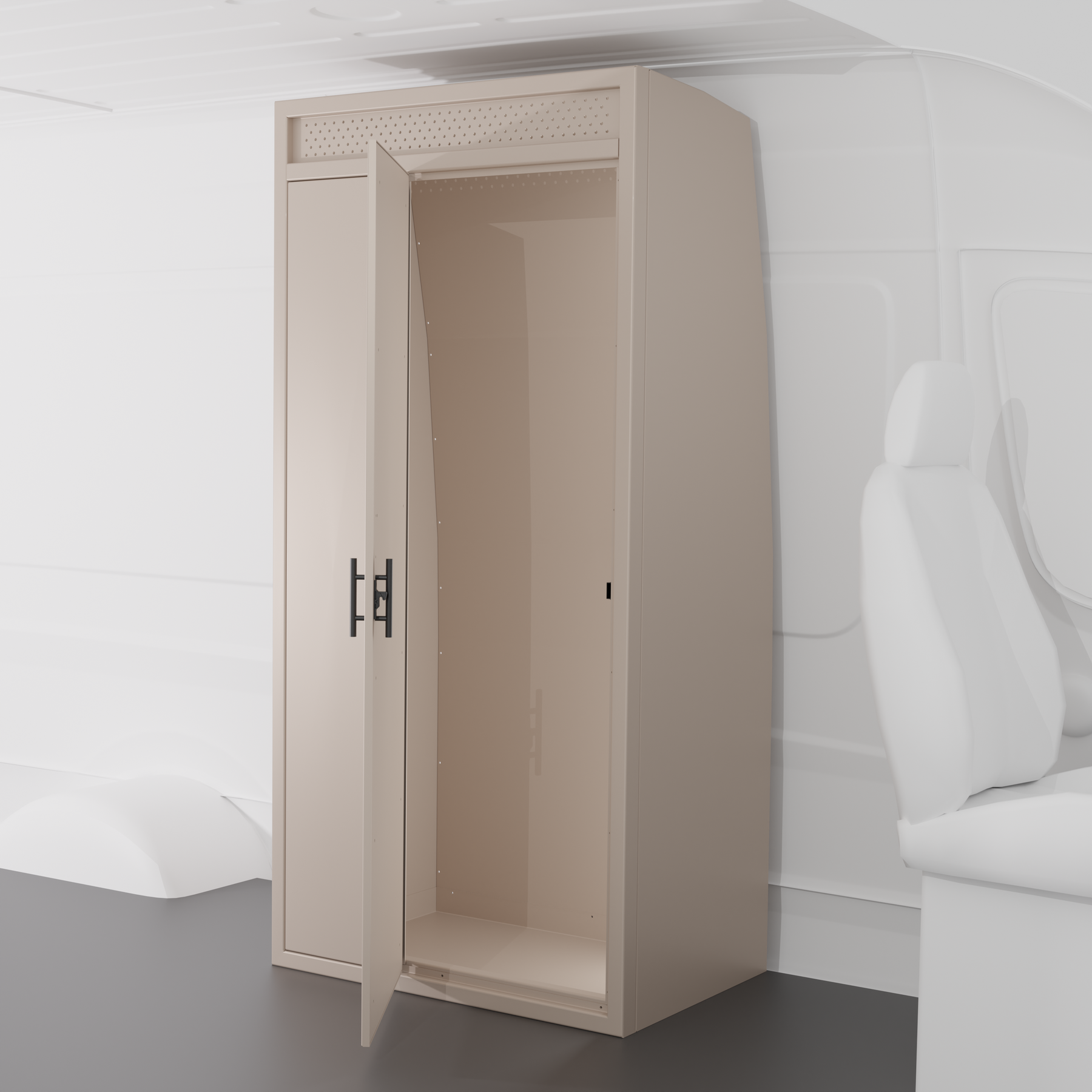

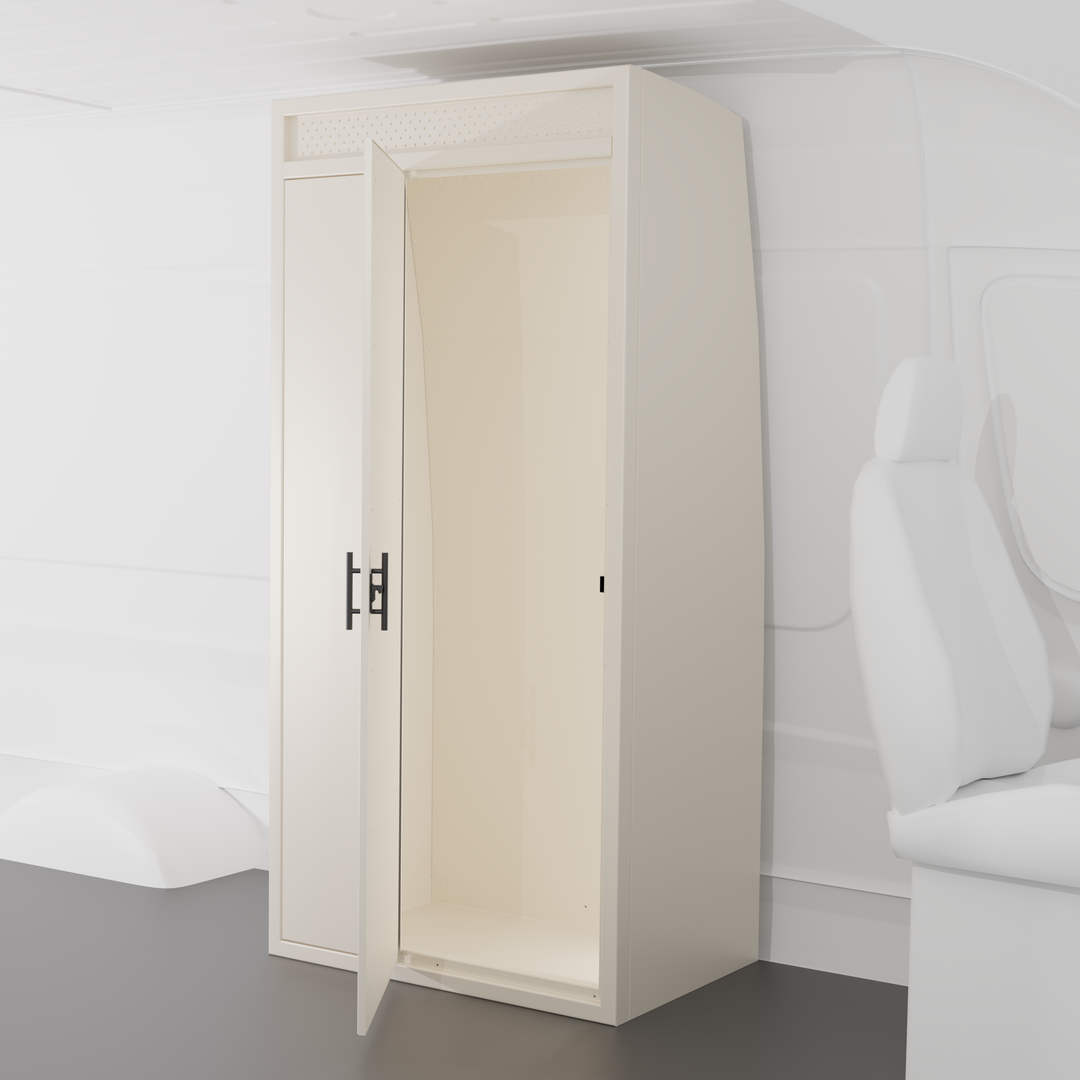

It ships flat with pre-drilled holes and includes rivets. Ventilation holes sit above the door. The pan is flat, so you can set drain placement to fit your build. The door is 20.8" wide, so it does not intrude much when open.
A shower curtain and drain (not included) are required to use it as a wet shower. Apply silicone to the seams to make it watertight. It is compatible with RV retractable rolling shower doors.
The shaker-style door has a removable panel for your own inlay. Use thin materials no thicker than 1/8", such as thin laminate.

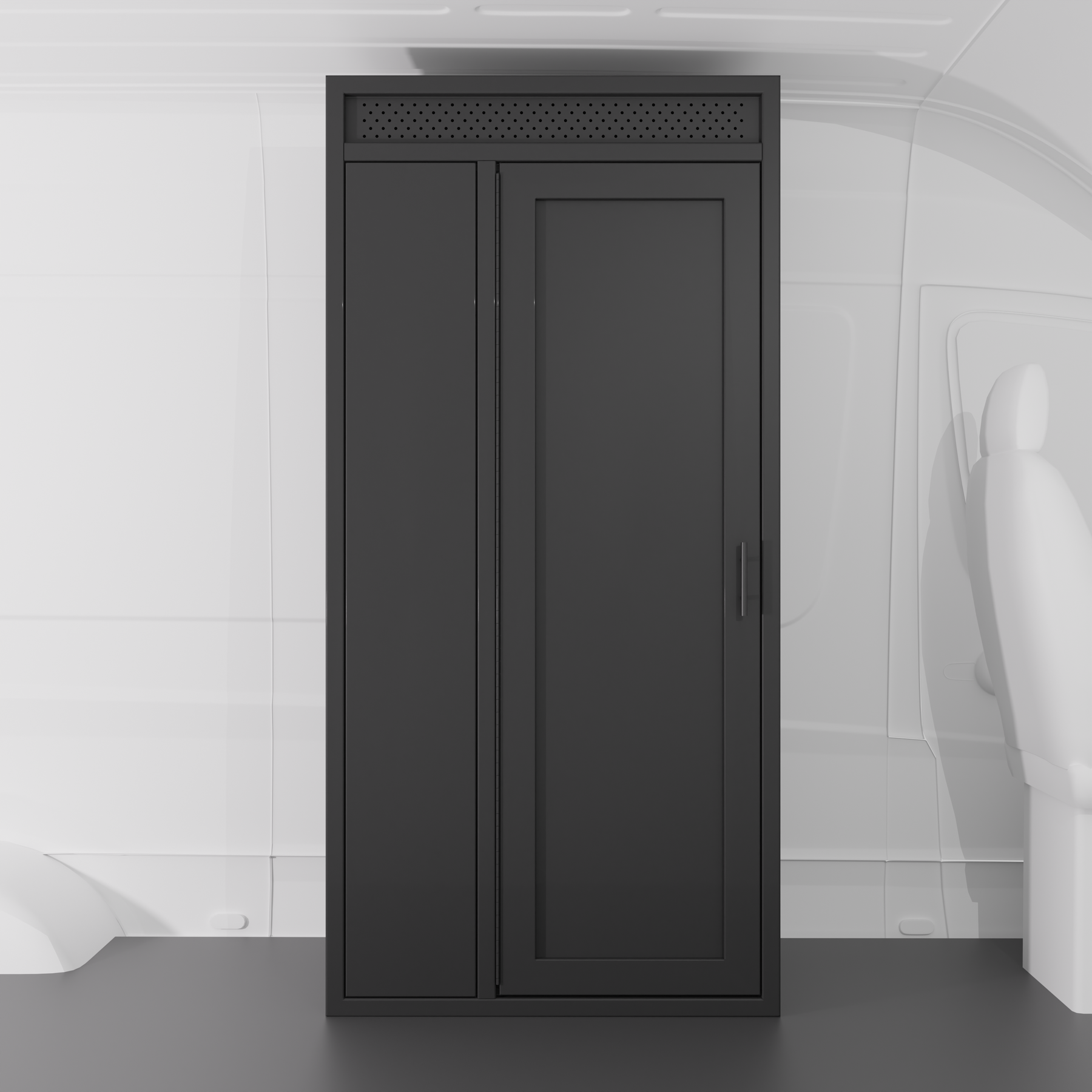

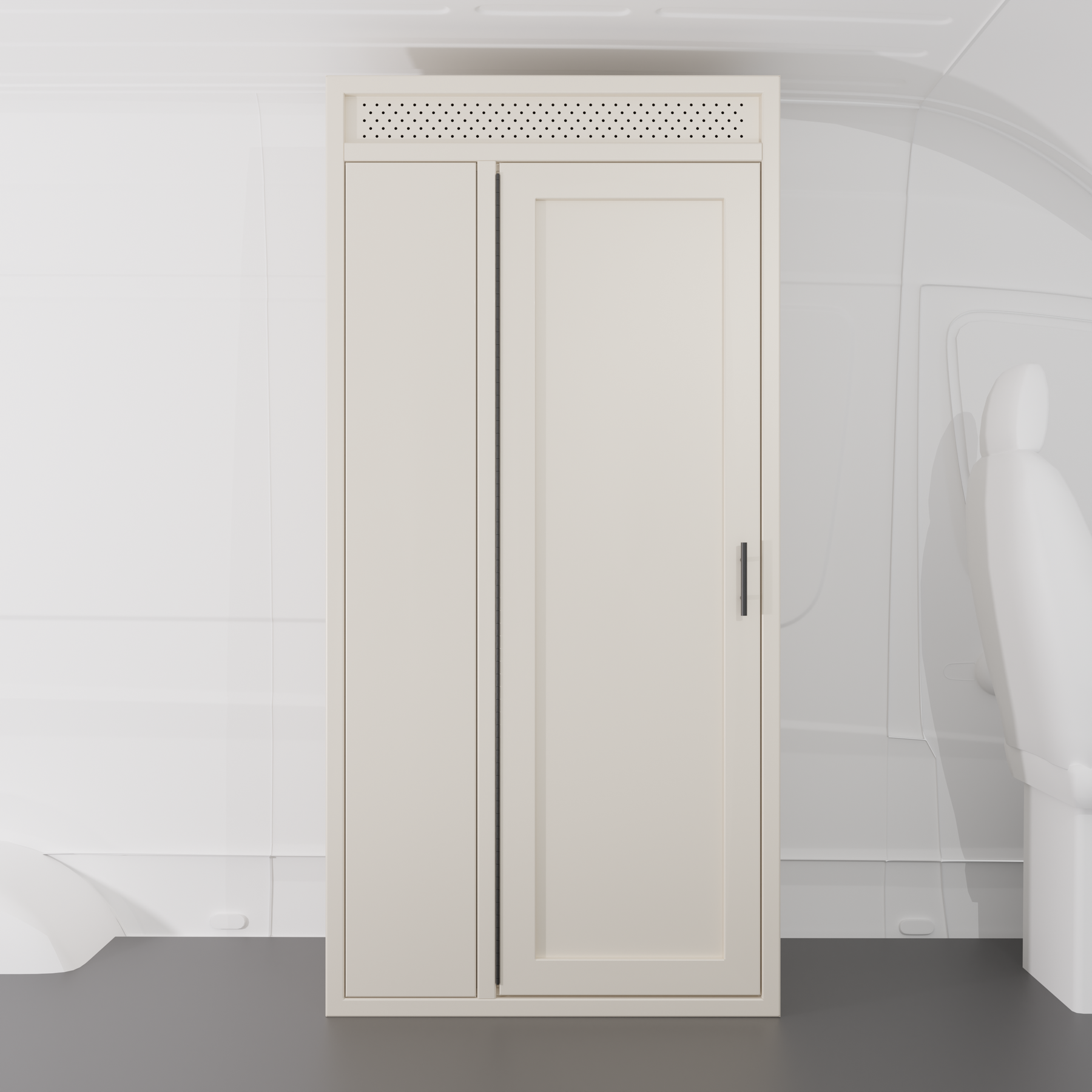

Colors: Sandstone, Black or White. Light Gray Texture, Champagne, Dusty Gray, Matte Blue, Sage Green and Walnut are special order.
Assembly
- Pick a location for your pan and drain. Place the rear panel behind the pan and attach the side panels with rivets.
- Attach the front door panel using rivets or bolts.
- Insert the ceiling panel last and rivet or bolt it in place. Do any lighting electrical before this step.
- Fasten to the van using the floor drain and fasteners of your choice through the top into the van's framing members.
- Extra rivet holes can be drilled if needed, but are not required.
- Apply silicone to the seams to create a watertight unit.
Recommended for installation: Drain, Faucets, Teak Mat, Flaring Tool.
Care
Clean with a mild detergent such as Dawn or Simple Green. Use a cloth, sponge or soft-bristled brush. Avoid abrasive scrubbers and harsh chemicals to protect the powder coat.
Shipping Details
This 36 inch van shower ships via freight on a pallet. Choose an address that can take a truck. Review the freight policy and inspect your shower on arrival. Report freight damage or shipping issues promptly per the freight policy.
Other Sizes
The showers also come in 24", 30" and 33" widths. All are 24" deep and 74.5" high. Pick the 36 inch van shower if you want room for a toilet inside the wet bath. Compare sizes before you frame your wet bath. Browse more in our van interior kits.
