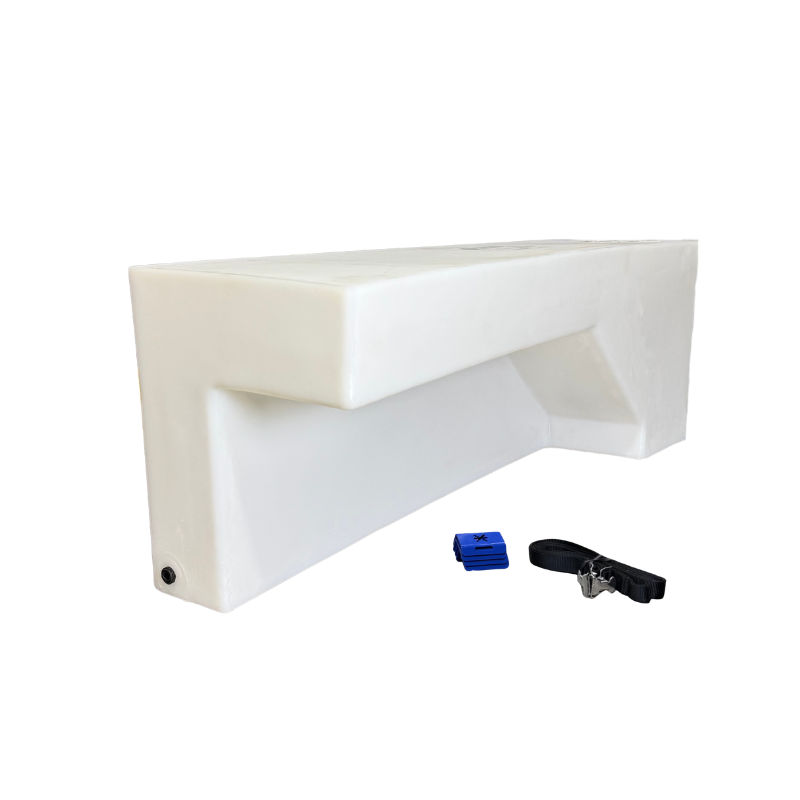

24-Gallon Ford Transit Wheel Well Water Tank - Left (TR-L-24)
The Transit left wheel well tank (TR-L-24) is a 24 gallon water tank designed specifically for the Ford Transit. AVC RIG carries this NW Conversions tank from GoCode.
About the Transit Left Wheel Well Tank

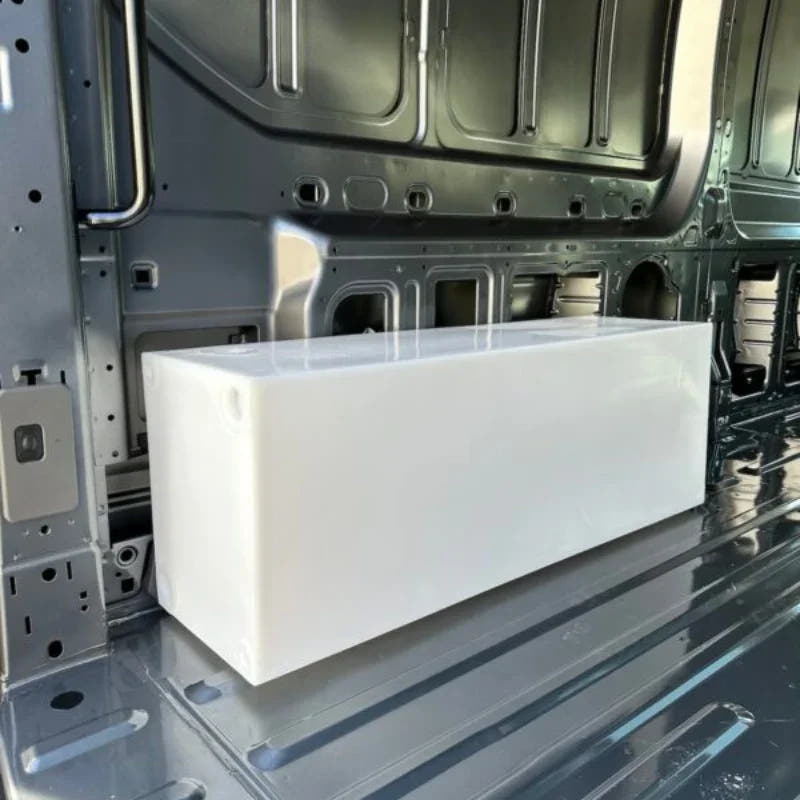

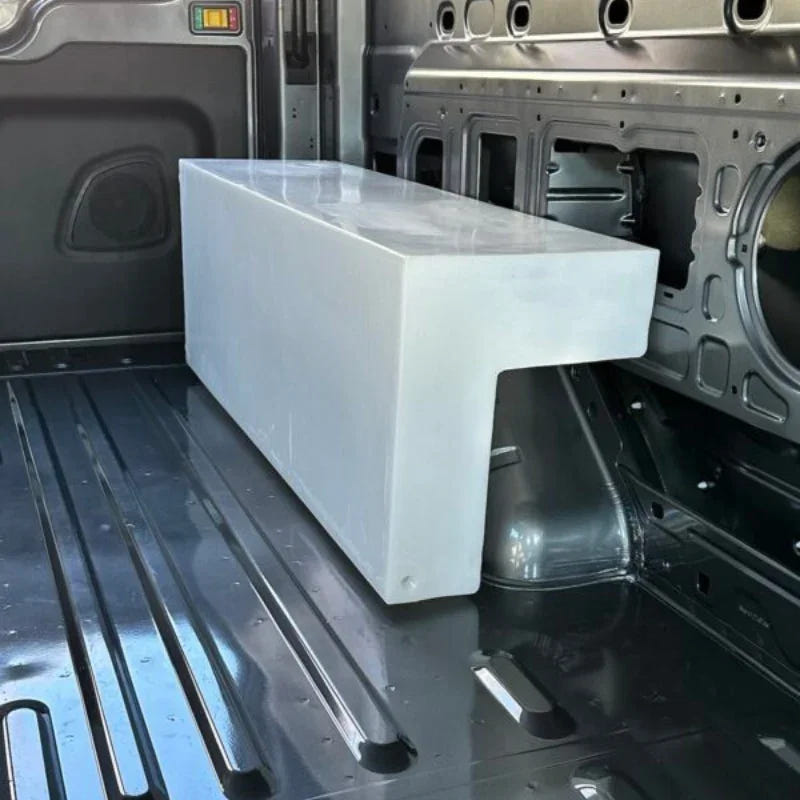

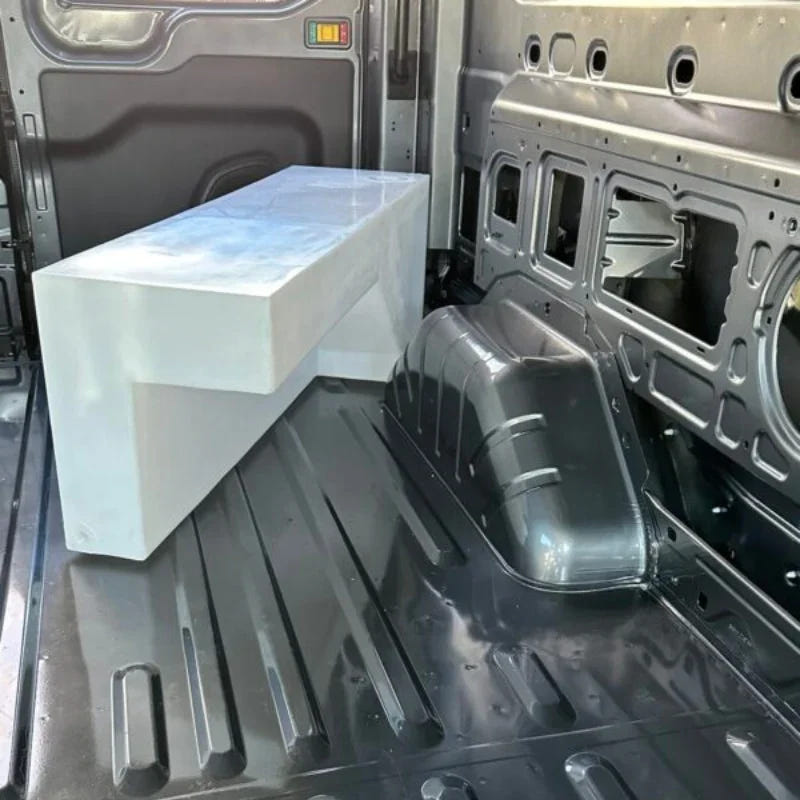

It fits the wheel well space, keeping your floor plan open while adding water capacity. It sits offset toward the rear or front of the wheel well, depending on which side you place it.
Transit Left Wheel Well Tank Specs

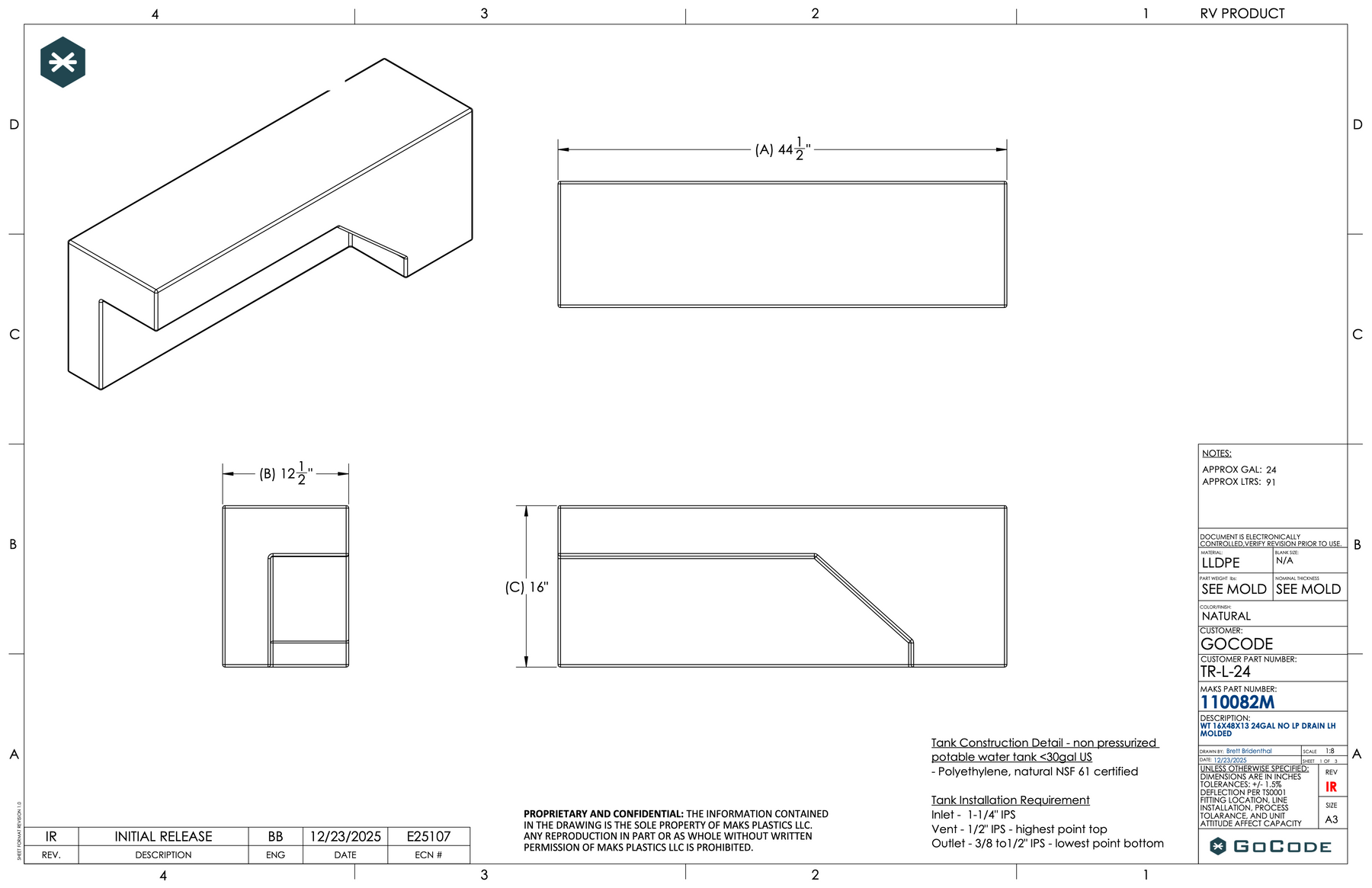

- Nominal dimensions: 44.5" L x 12.5" W x 16" H (actual dimensions may vary up to 1.5% each)
- Capacity: 24 gallons
- Dry weight: 22 lbs
- Filled weight: 222 lbs
- Recommended sensor: KUS S5U-15
- Recommended heating pad: Facon CW-T1218 (x2)
- Not designed for pressurized systems, must be vented
Materials and Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS 4 Certified
- Made in the USA
- TEi listed and RVIA approved

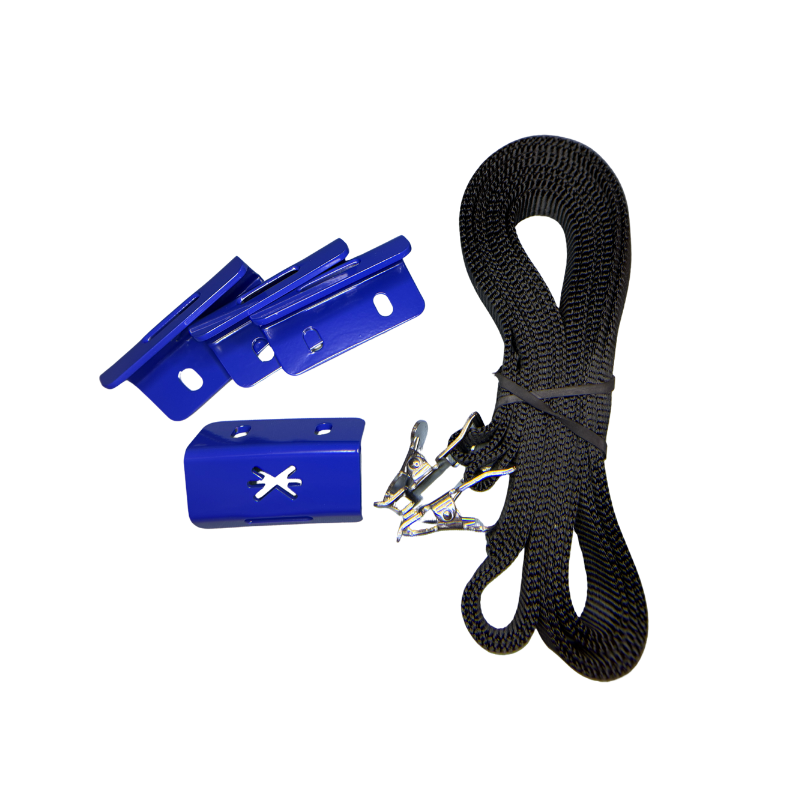

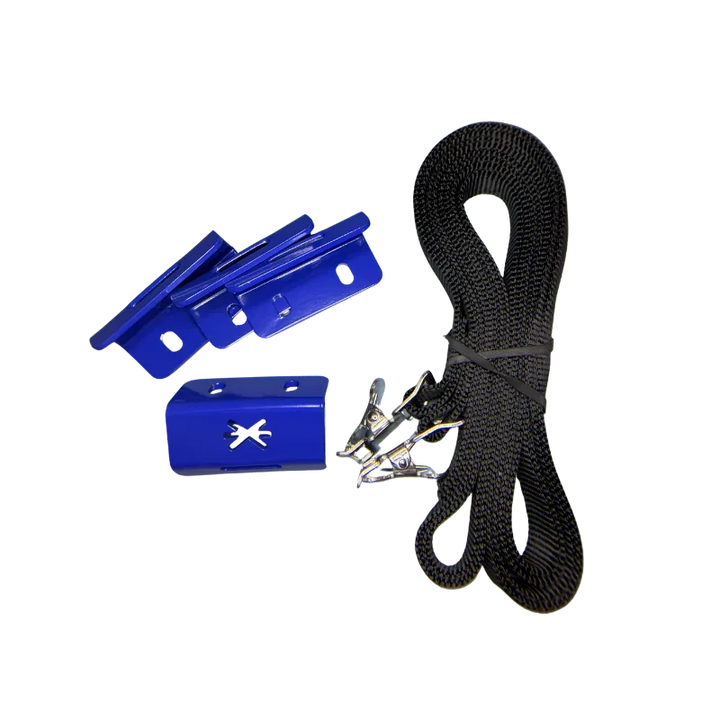

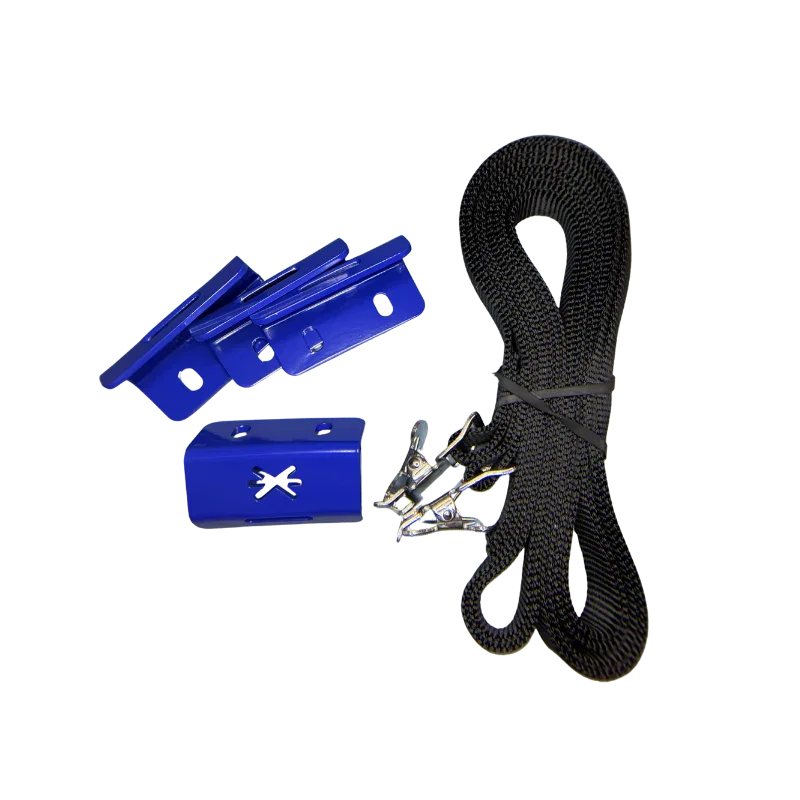

What's Included
- Water tank

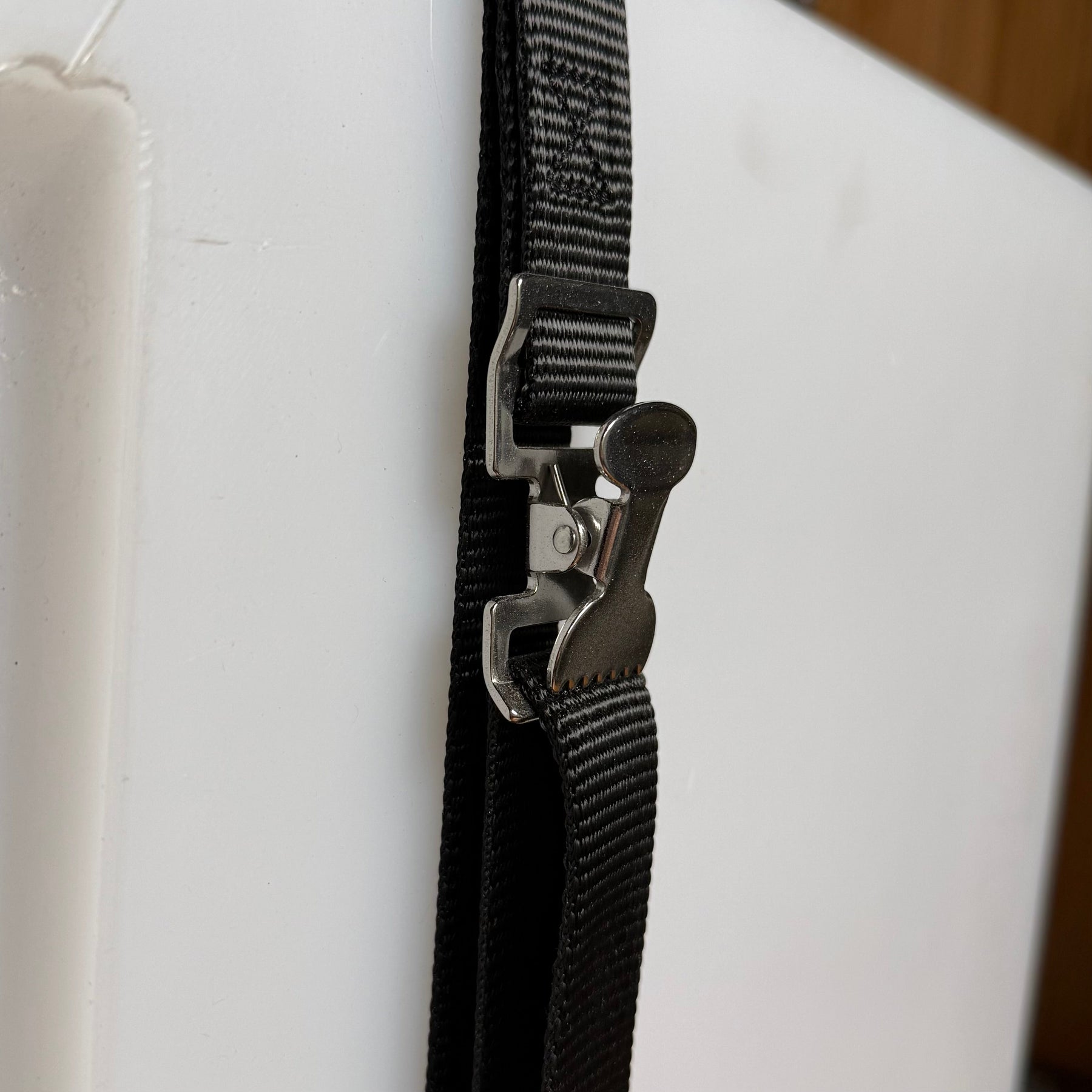

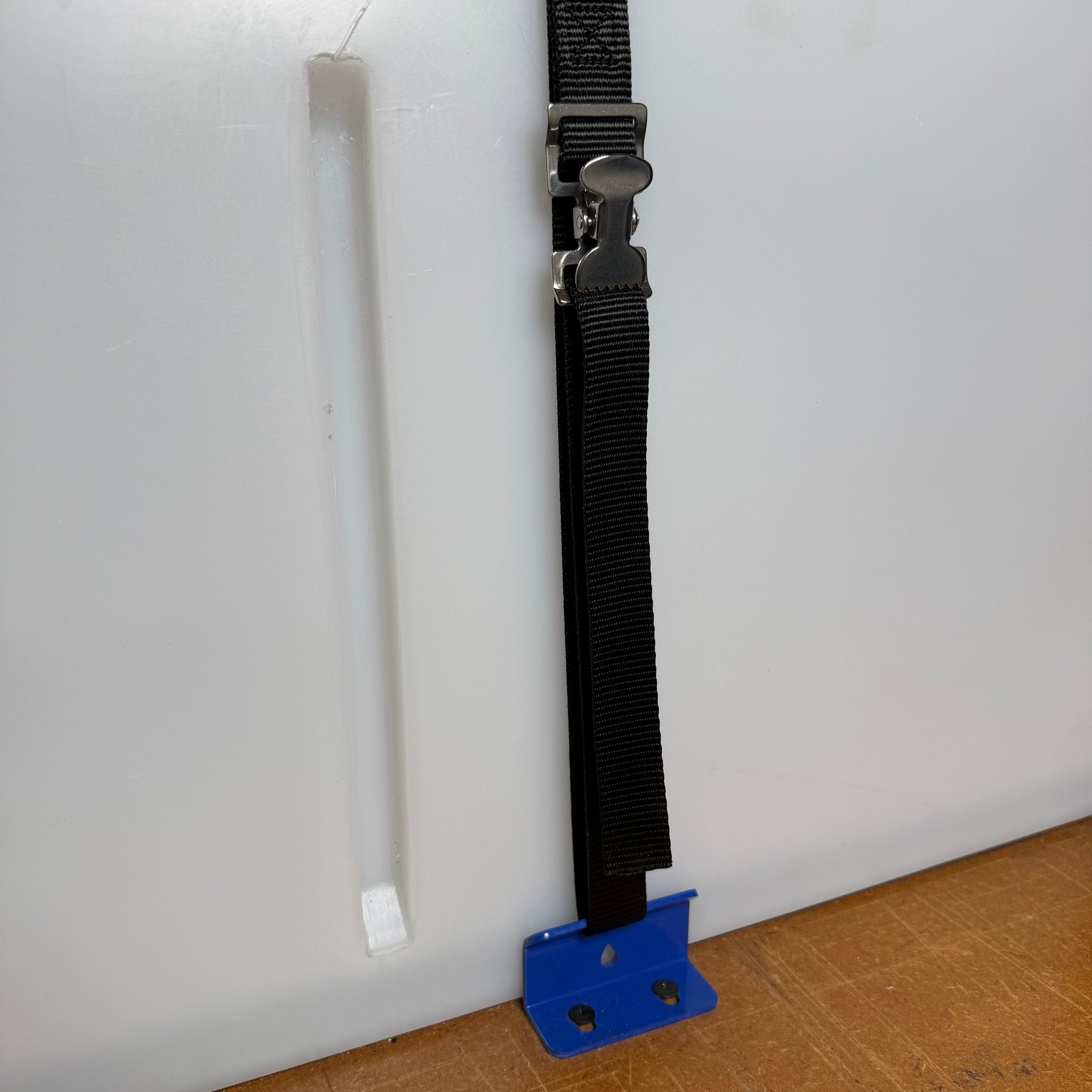

- (x2) Adjustable straps

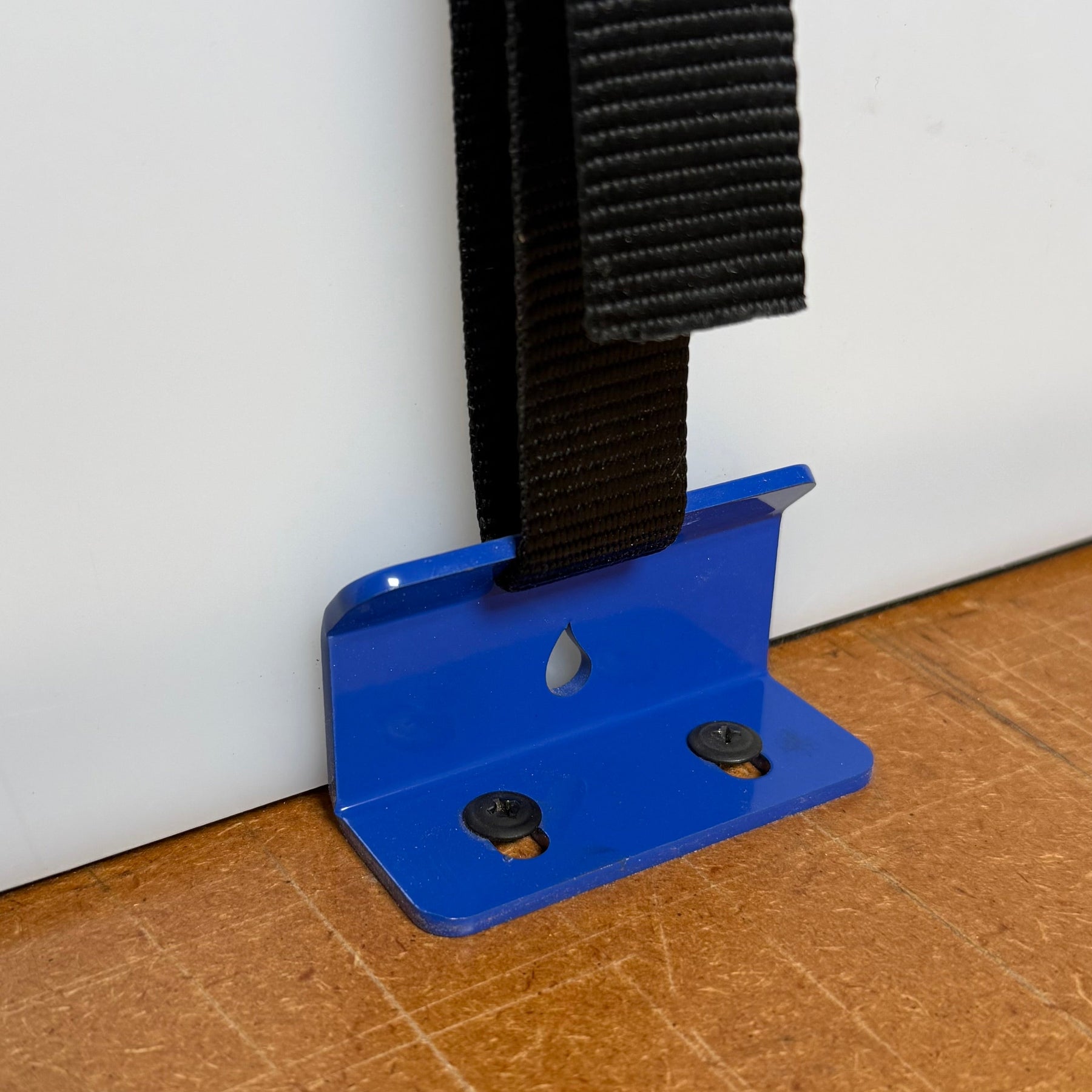

- (x4) Mounting brackets
Ports and plumbing:
- (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
- (2) 1/2" NPT ports on the rectangular end
- (1) 1/2" NPT port on the open end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Compatibility
- Designed specifically for the Transit van
- May also fit other makes and models

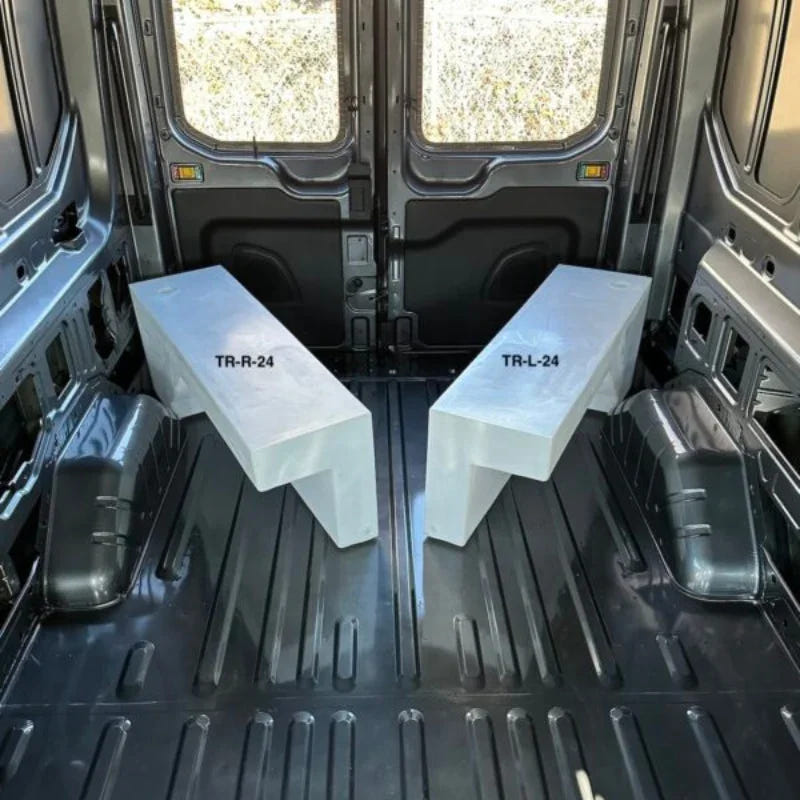

- Driver side: the tank sits mostly rear of the wheel well
- Passenger side: the tank sits mostly in front of the wheel well
Planning Your Water System
The Transit left wheel well tank is not designed for pressurized systems, so plan a vent. Filled, it weighs 222 lbs, so plan your mounting around that weight. Pick your side first, since that sets whether the tank sits mostly ahead of or behind the wheel well. Then drill out only the pre-marked NPT ports you need.
Shipping and Lead Time
Ships in 1-2 business days.
Note: Despite great care during manufacturing and fulfillment, plastic tanks can get dirty or scuffed in transit. This does not mean the tank is damaged. Plastic tanks can also warp slightly, especially on flat surfaces. This is normal and does not make the tank defective. A perfectly flat surface on a rotationally molded part is not always possible. Every effort is made to keep surfaces within a 1.5 degree tolerance.
