Mercedes Sprinter 144 Wood Wall Kit For Go Code Trim
Streamline your Mercedes Sprinter build with the AVC RIG Sprinter 144 wood wall kit for GoCode trim. It is the new standard in Mercedes wall kits, designed from the ground up around GoCode Overland trim plastics. No more upholstering your columns. Order the GoCode trim kit and move on to the fun part of your build.

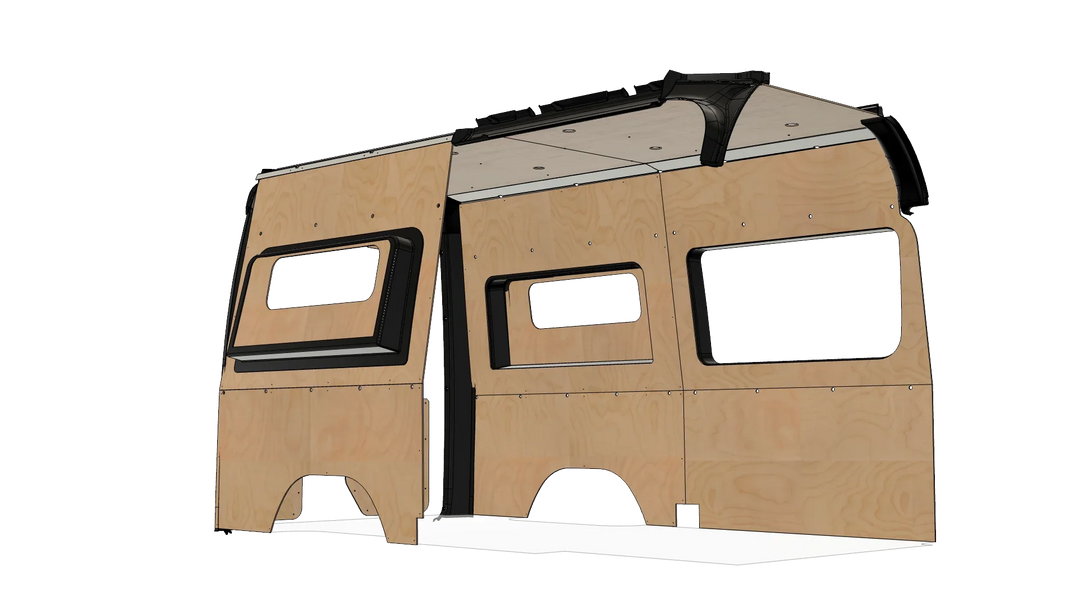

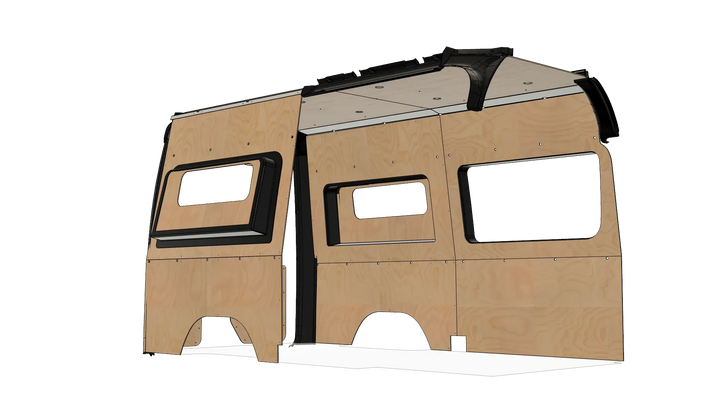

What's in the Sprinter 144 Wood Wall Kit

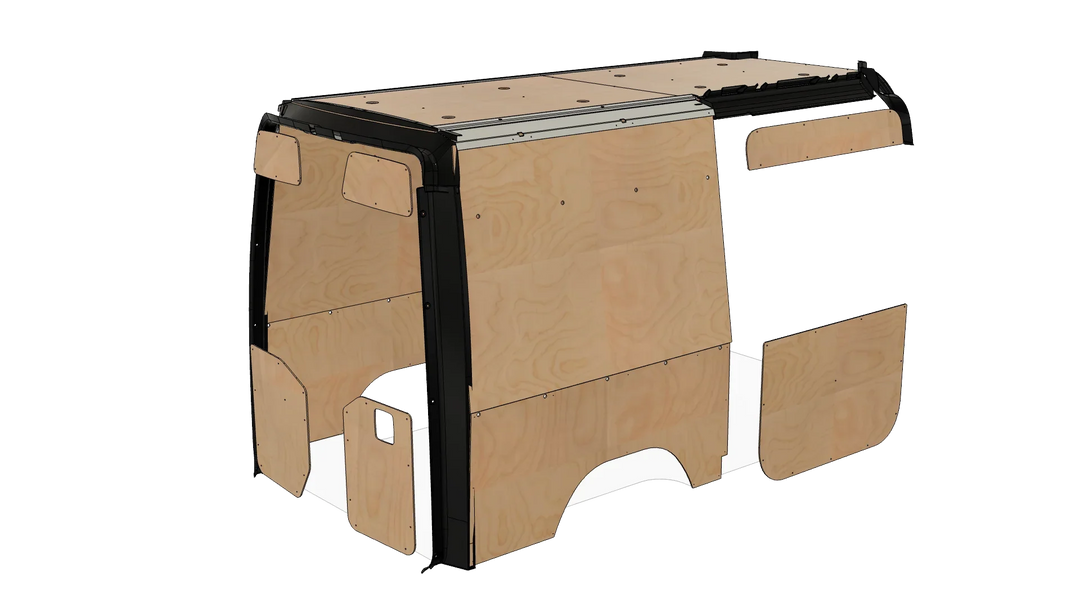

Includes: Sprinter Wall to Ceiling Furring Kit, 1/4" Baltic Birch wall panels, ceiling panels, and upper and lower slider door panels. Options are available for upper and lower rear door panels.
GoCode Trim Is Required
GoCode trim is not included with this kit, but it is REQUIRED for a proper finish. There are many GoCode trim variations, such as fabric wrap or raw, so it must be ordered separately: Mercedes Sprinter Full Interior Trim Kit.
Kits cut for front windows or capsules DO NOT include the trim. Order it here: Mercedes Sprinter Driver Mid Trim Ring and Vanspeed Capsule Trim Ring.
Lighting and Mounting Options

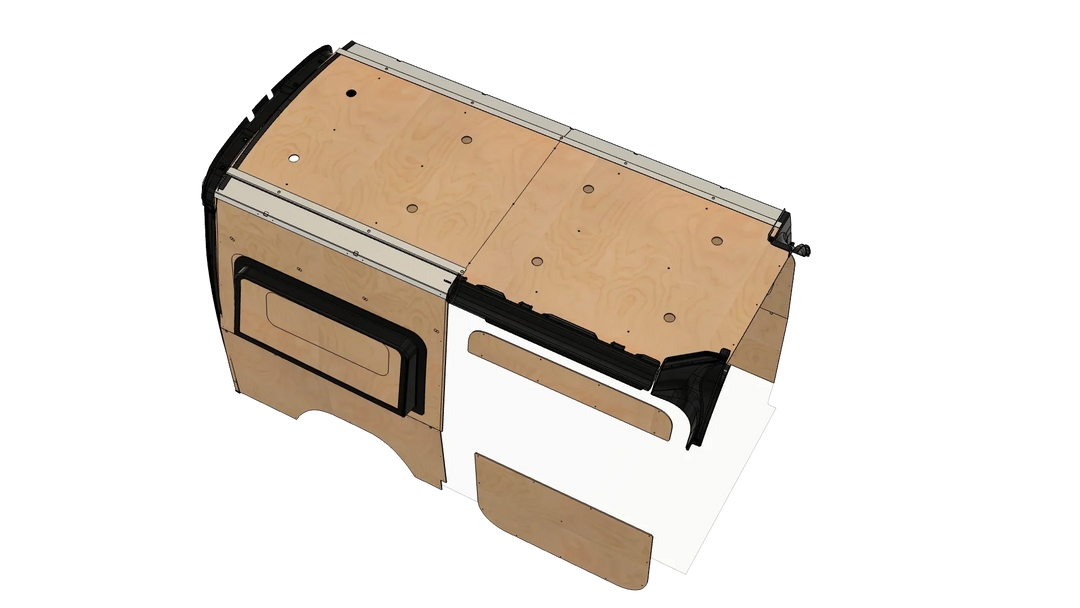

Each Sprinter 144 wood wall kit has an option for a ceiling patterned for 8 light locations. The holes are 2.375" for Acegoo lights: acegoo RV Recessed Ceiling Light 4-pack.
All kits have holes that line up with AVC's preferred spots for adding rivnuts to the factory holes in the Sprinter, for walls and ceiling. We use these to secure cabinets with Unistrut, so your Sprinter 144 wood wall kit is ready for cabinets. Wood wall kits are designed to be upholstered. If you don't plan to use the holes, upholster over them.
Material: 1/4" Baltic Birch
- Higher quality material
- Better screw retention
- Multi ply
- The standard in the van building industry
*1/4" natural bamboo ply ceiling upgrade available. Contact us directly for pricing.
Shipping and Lead Time
$350 flat rate freight. Lead time: 2-4 weeks to shipping. Every Sprinter 144 wood wall kit is precision cut and made in the USA.
Prefer a felt finish? See the Sprinter 144 felt wall kit, or shop all Sprinter 144 conversion parts.
