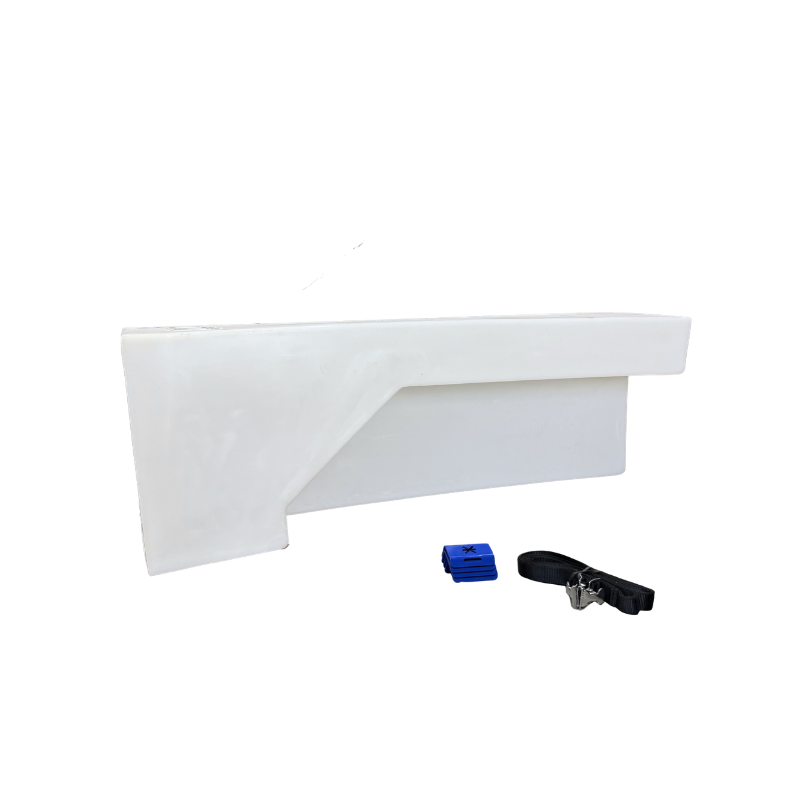

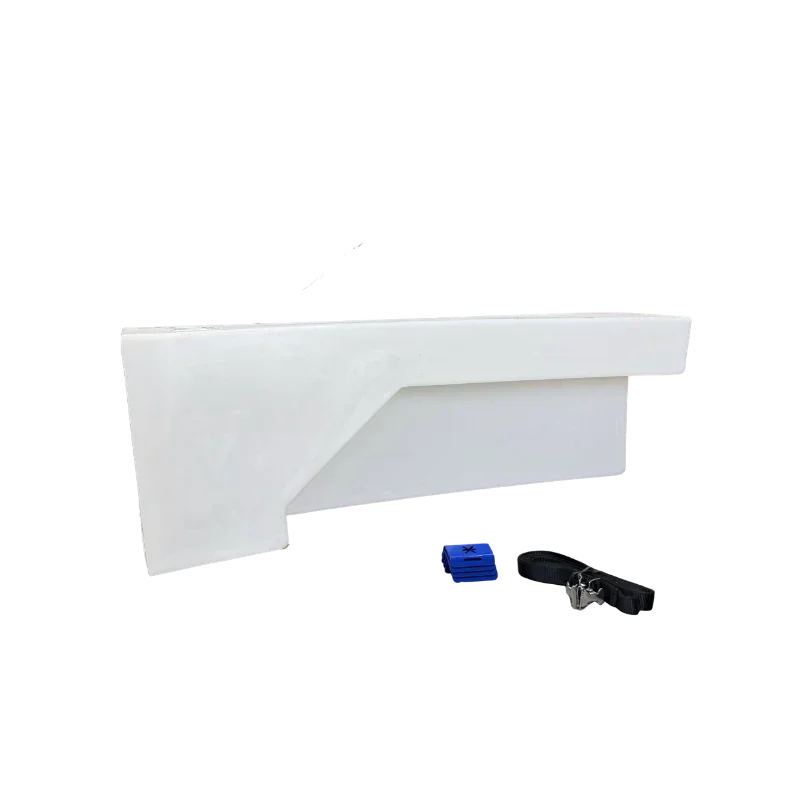

24-Gallon Ford Transit Wheel Well Water Tank - Right (TR-R-24)
The NW Conversions Transit right wheel well tank (TR-R-24) is designed specifically for the Ford Transit. It fits the wheel well space, keeping your floor plan open while adding water capacity. It sits offset toward the rear or front of the wheel well depending on placement side. AVC RIG carries it for Transit builders.
About the Transit Right Wheel Well Tank
Wheel wells are awkward space in most Transit builds. A Transit right wheel well tank puts your fresh water there and frees up floor for a galley, bench or garage.
Specifications

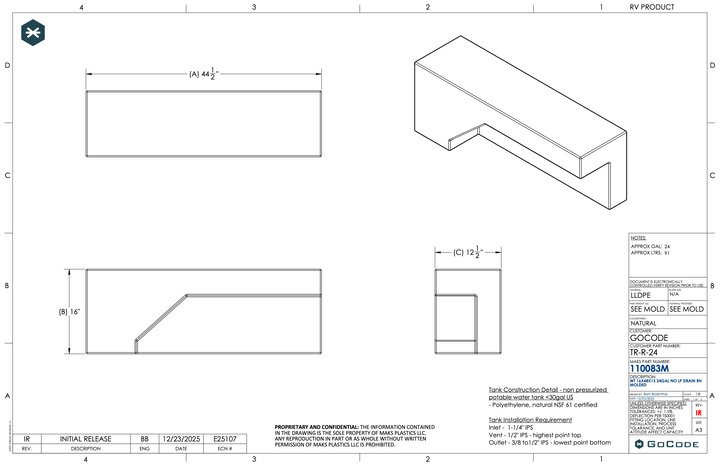

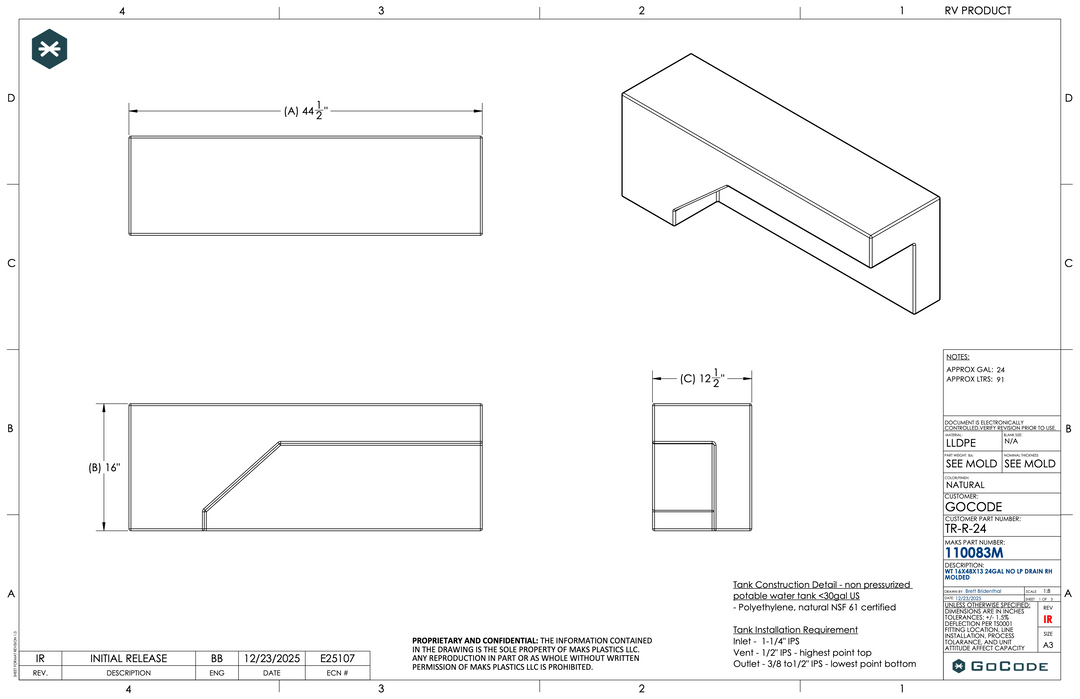

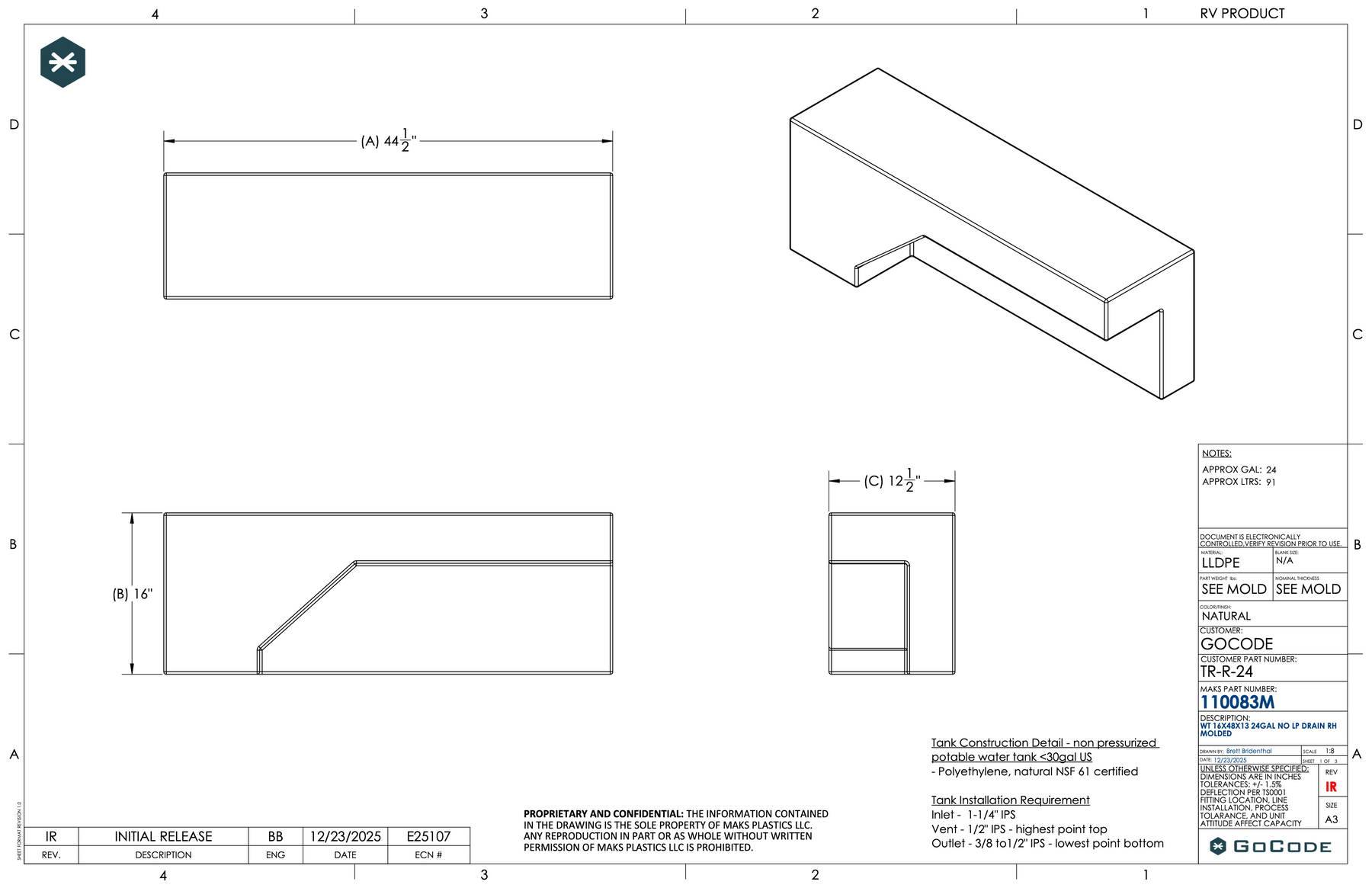

- Nominal dimensions: 44.5" L x 12.5" W x 16" H
- Actual dimensions may vary up to 1.5% each.
- Capacity: 24 gallons
- Dry Weight: 22 lbs
- Filled Weight: 222 lbs
- Recommended sensor: KUS S5U-15
- Recommended Heating Pad: Facon CW-T1218 (x2)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- Made in the USA
- IAPMO TS 4 Certified
- TEi listed and RVIA approved

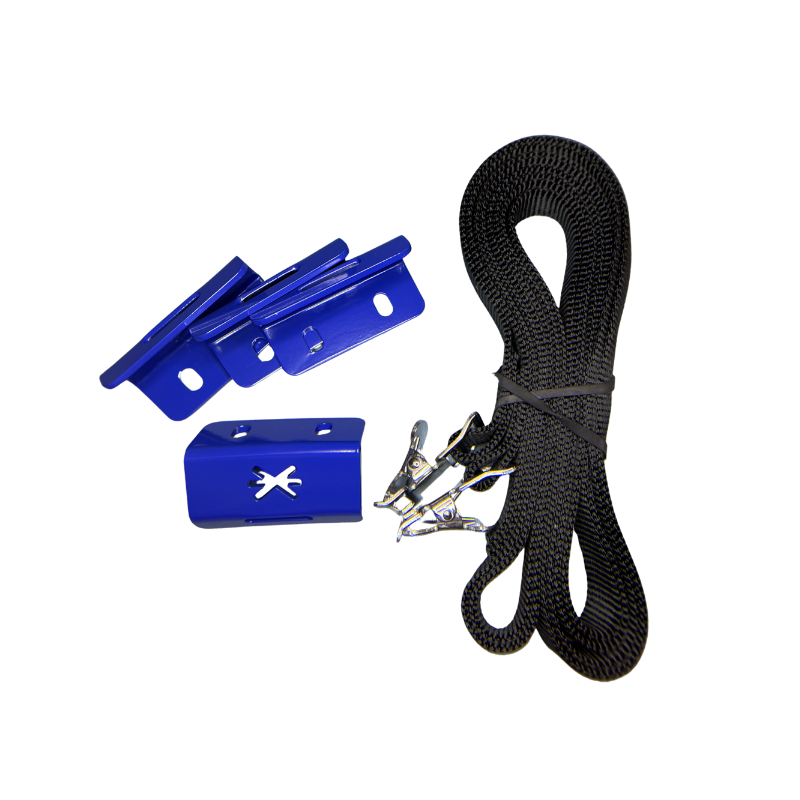

What's Included
- Water Tank

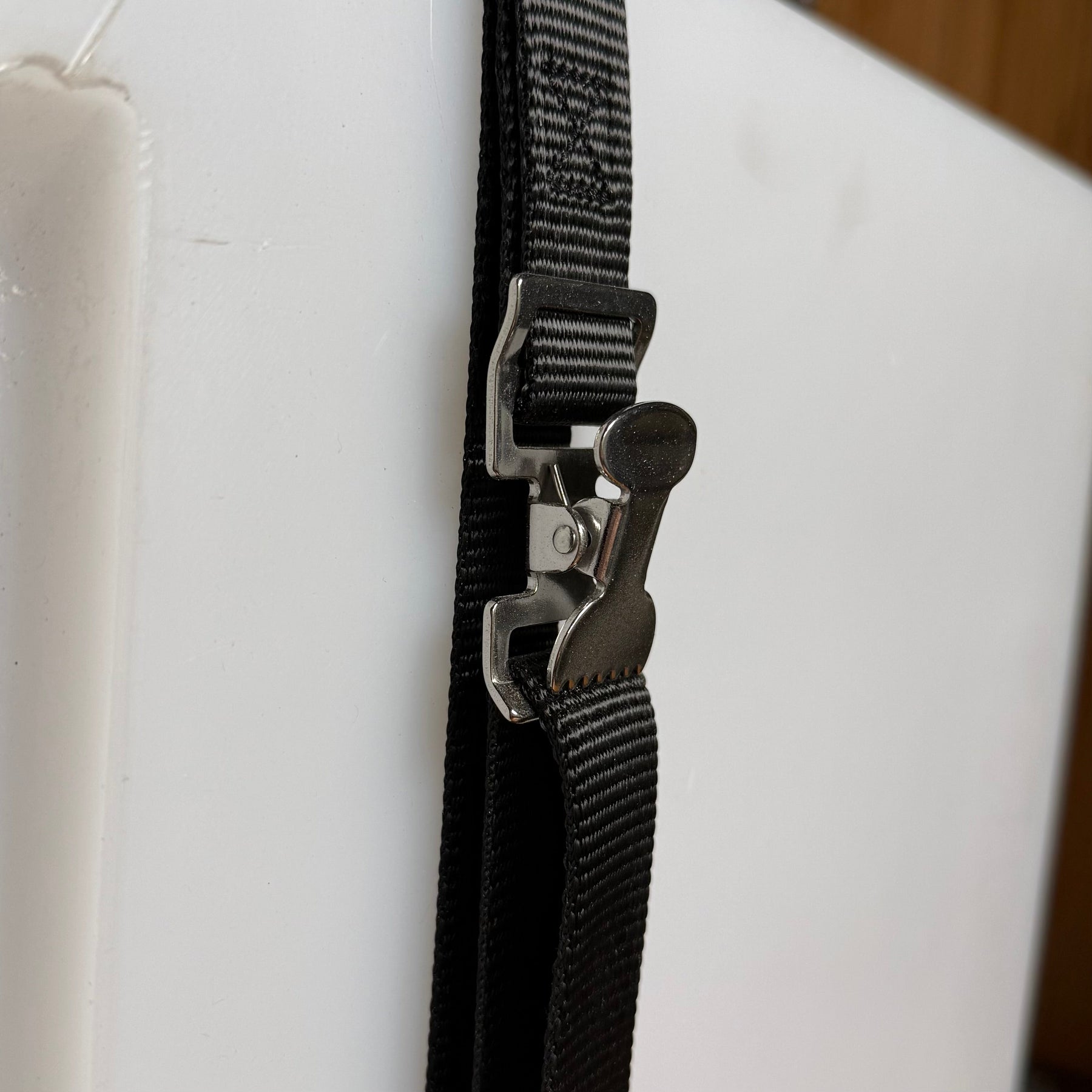

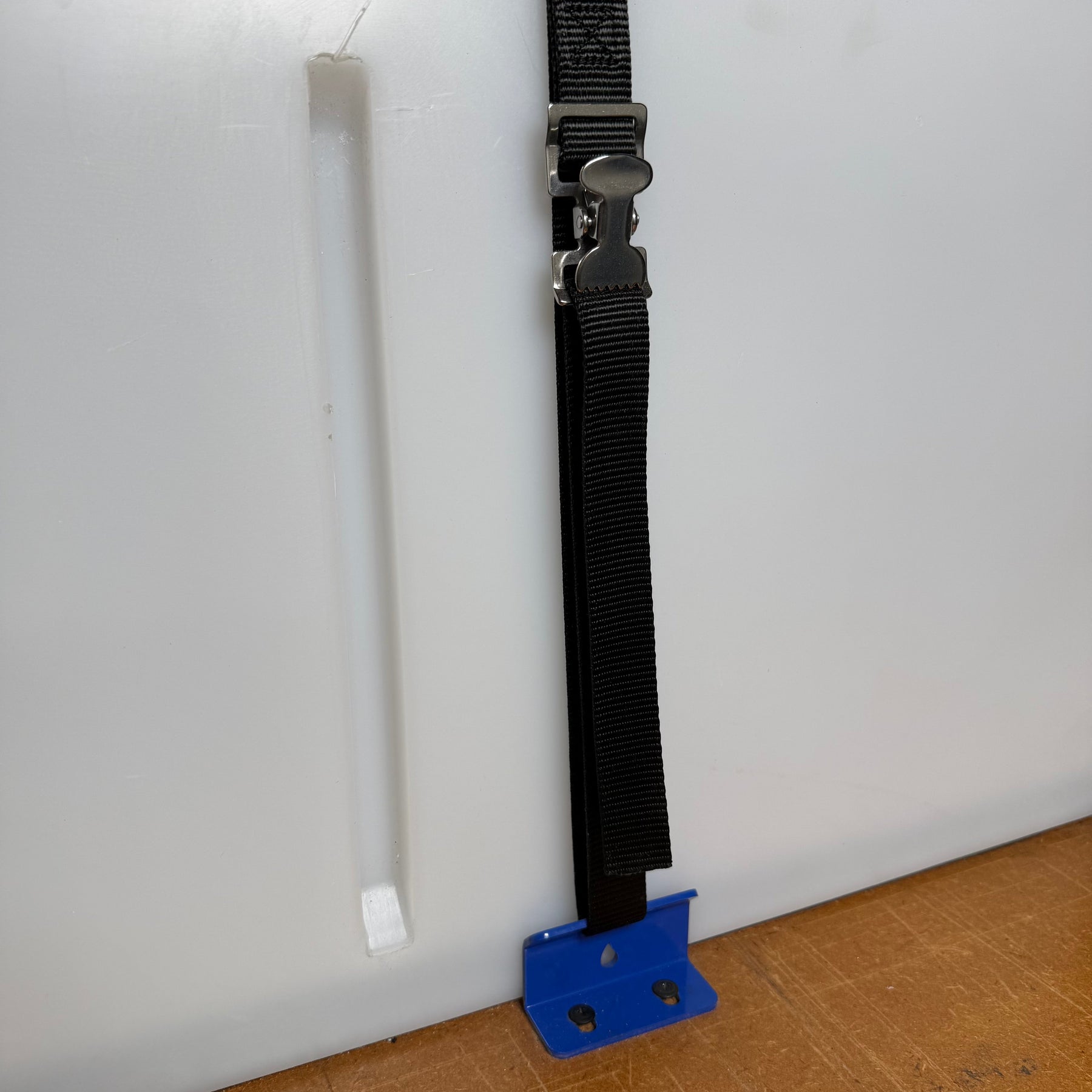

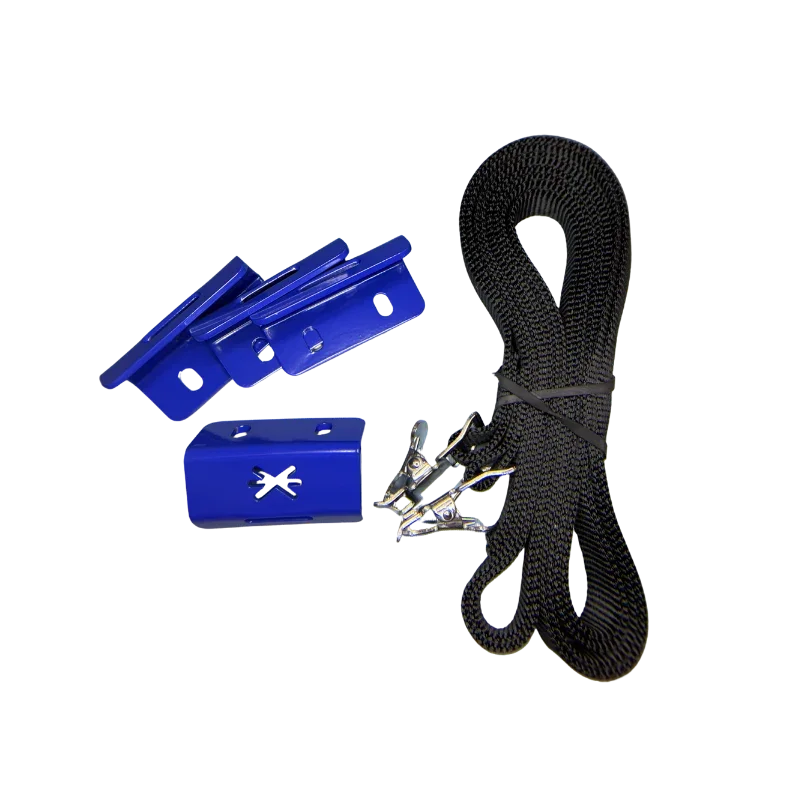

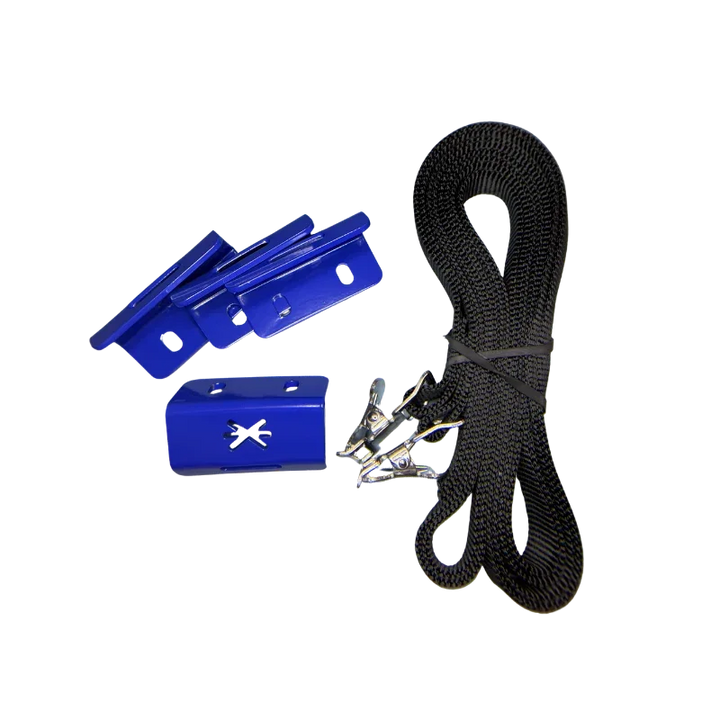

- (x2) Adjustable straps

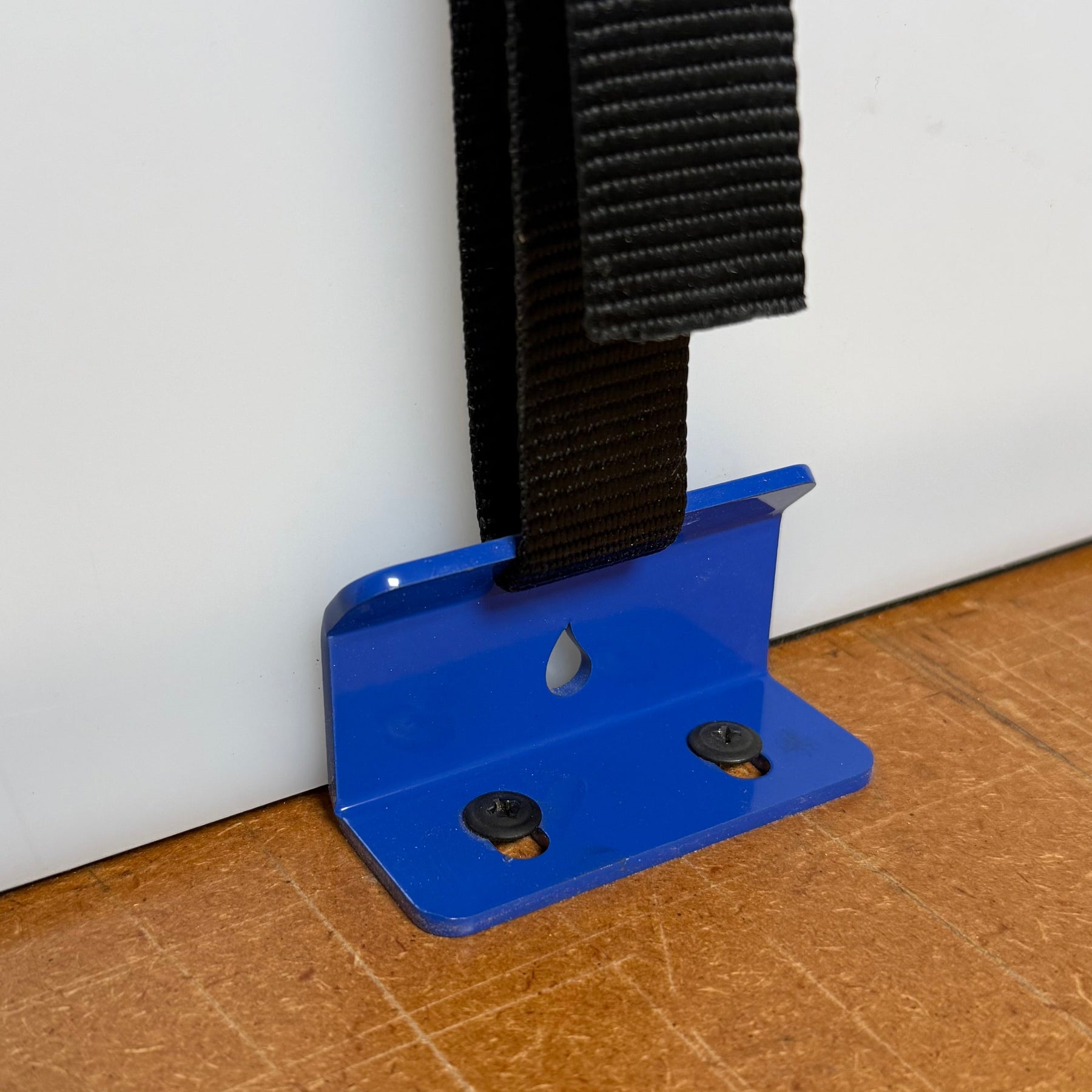

- (x4) Mounting brackets
Ports & Plumbing
- (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
- (2) 1/2" NPT ports on the rectangular end
- (1) 1/2" NPT port on the open end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
The pre-marked NPT ports let you drill only what your plumbing needs. Pair the tank with the KUS S5U-15 sender, the sender length to order for accurate fuel/water readings.
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility
- Designed specifically for the Transit van
- May also fit other makes and models

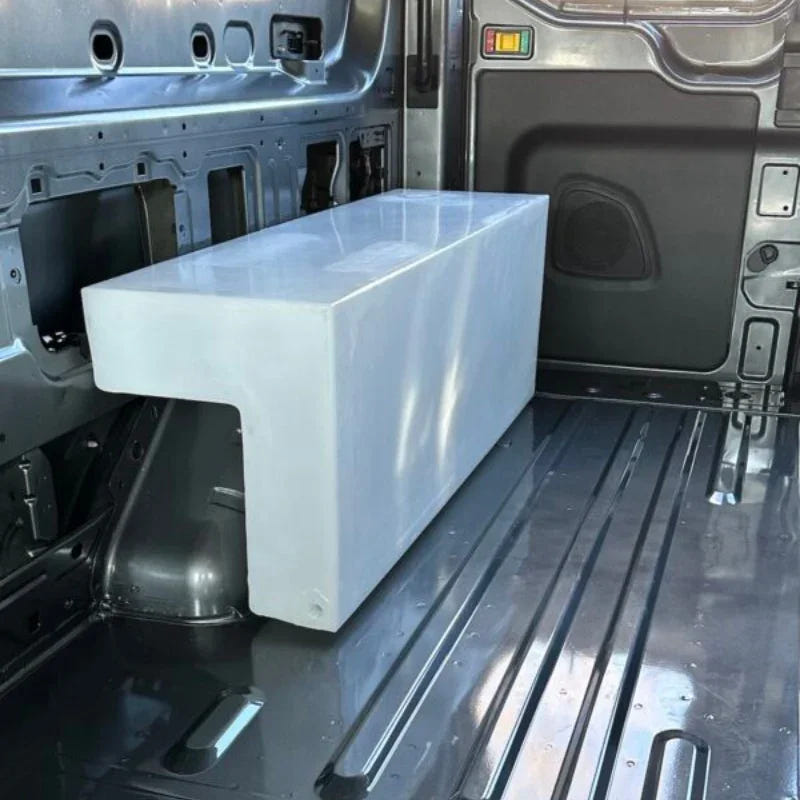

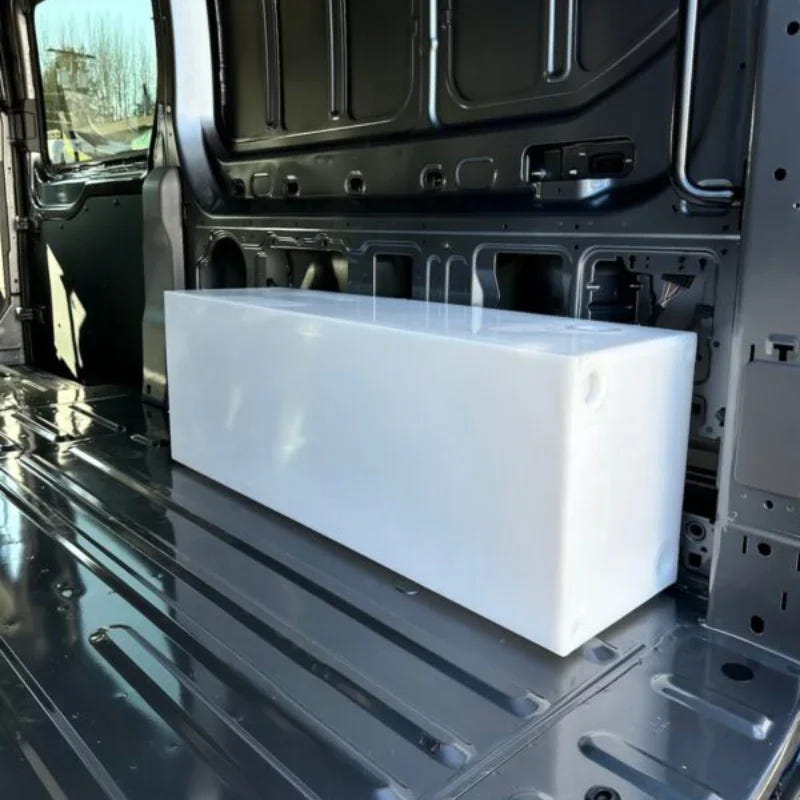

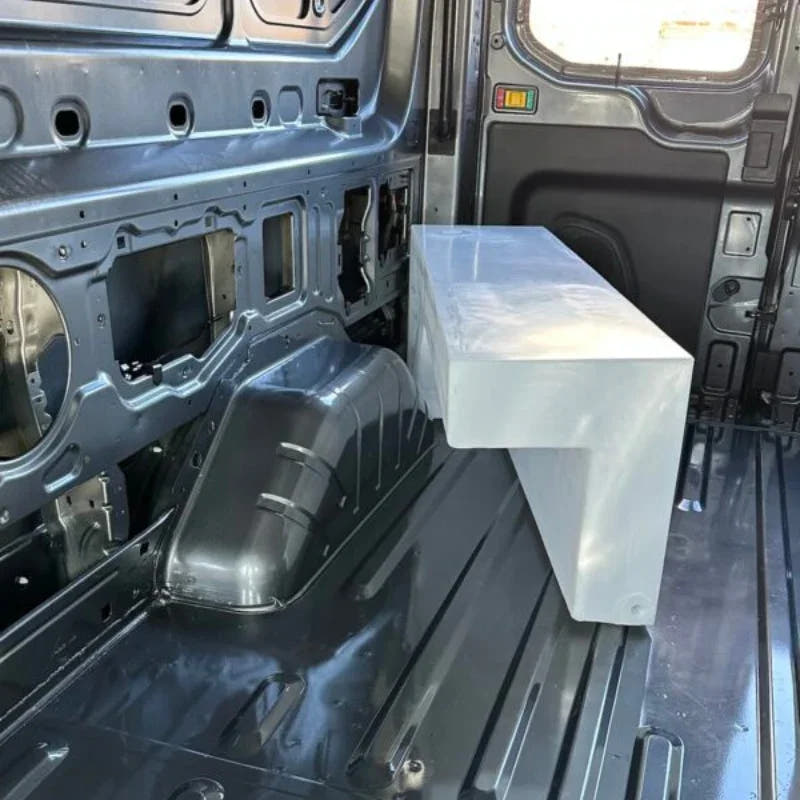

- Passenger side: tank sits with majority rear of wheel well
- Driver side: tank sits with majority front of wheel well
Pick your side first: the Transit right wheel well tank sits mostly behind the wheel well on the passenger side. Need the other side? See the 24-gallon Transit wheel well tank - left or the center wheel well tank, and shop Ford Transit van accessories. Learn more about the van at Ford Transit.
