20" DIY Slide Tray Kit
The RB Components 20 DIY slide tray kit gives you a 20" full slide out with all the hardware. You add a 3/4" plywood floor cut to any width you want. AVC RIG carries it for van builders who need easy access to gear.
20 DIY Slide Tray Kit Features

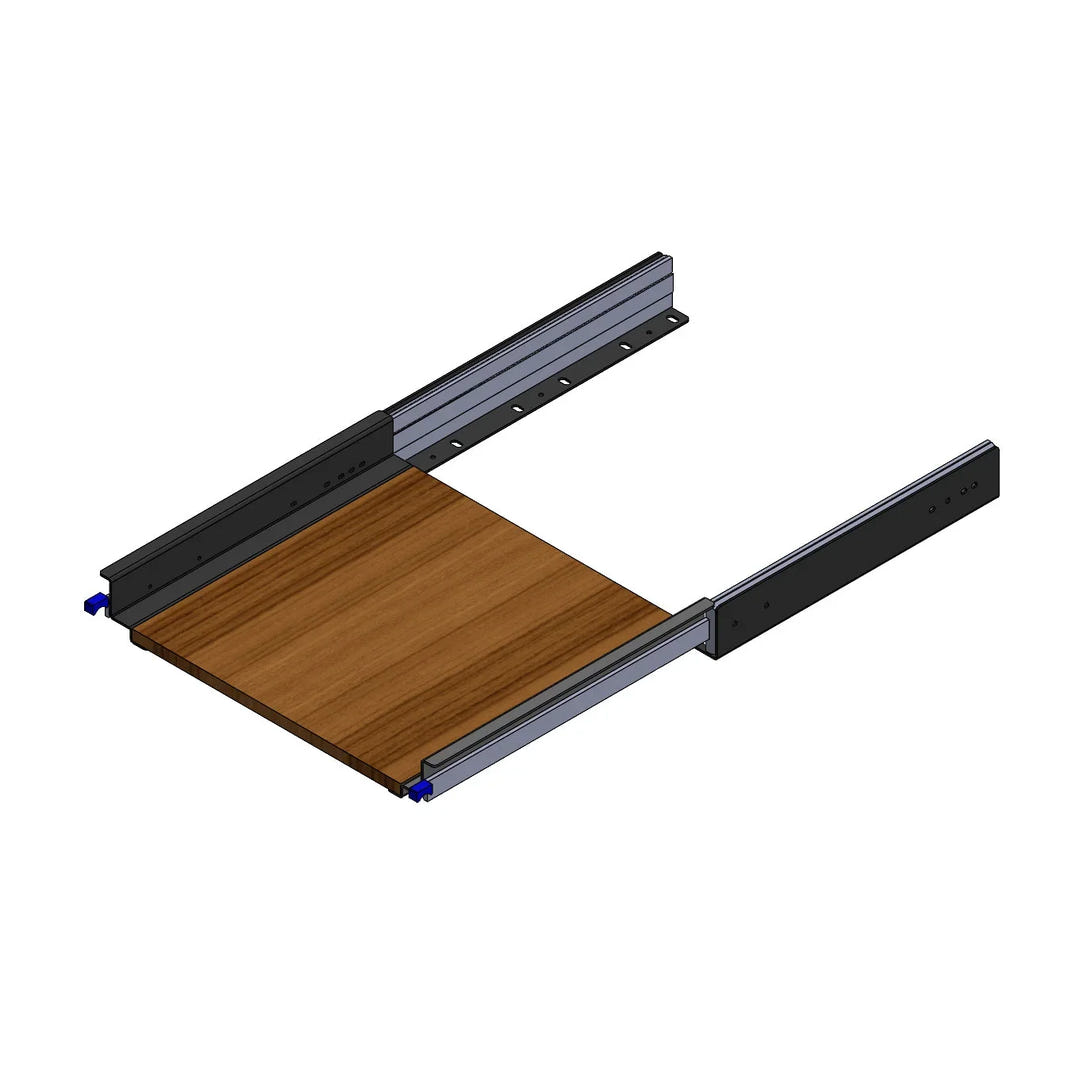

- 20" full slide out

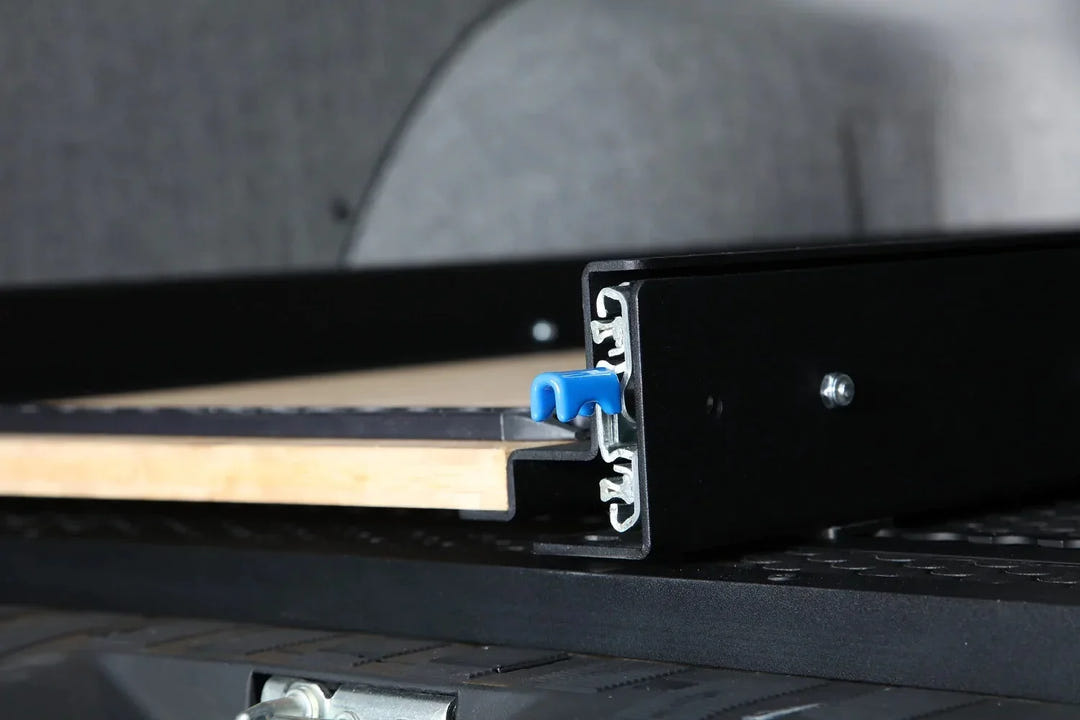

- Double slide locks
- Overall length including release lever: 21.25"

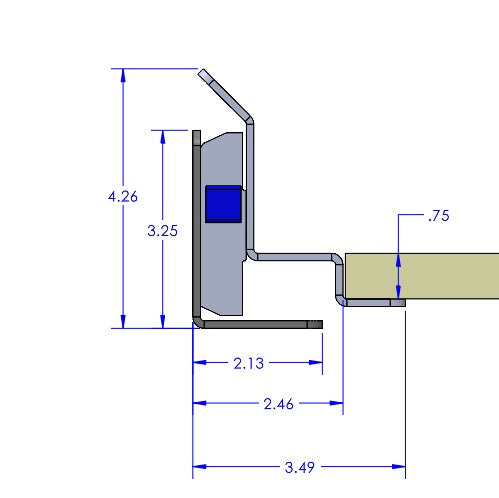

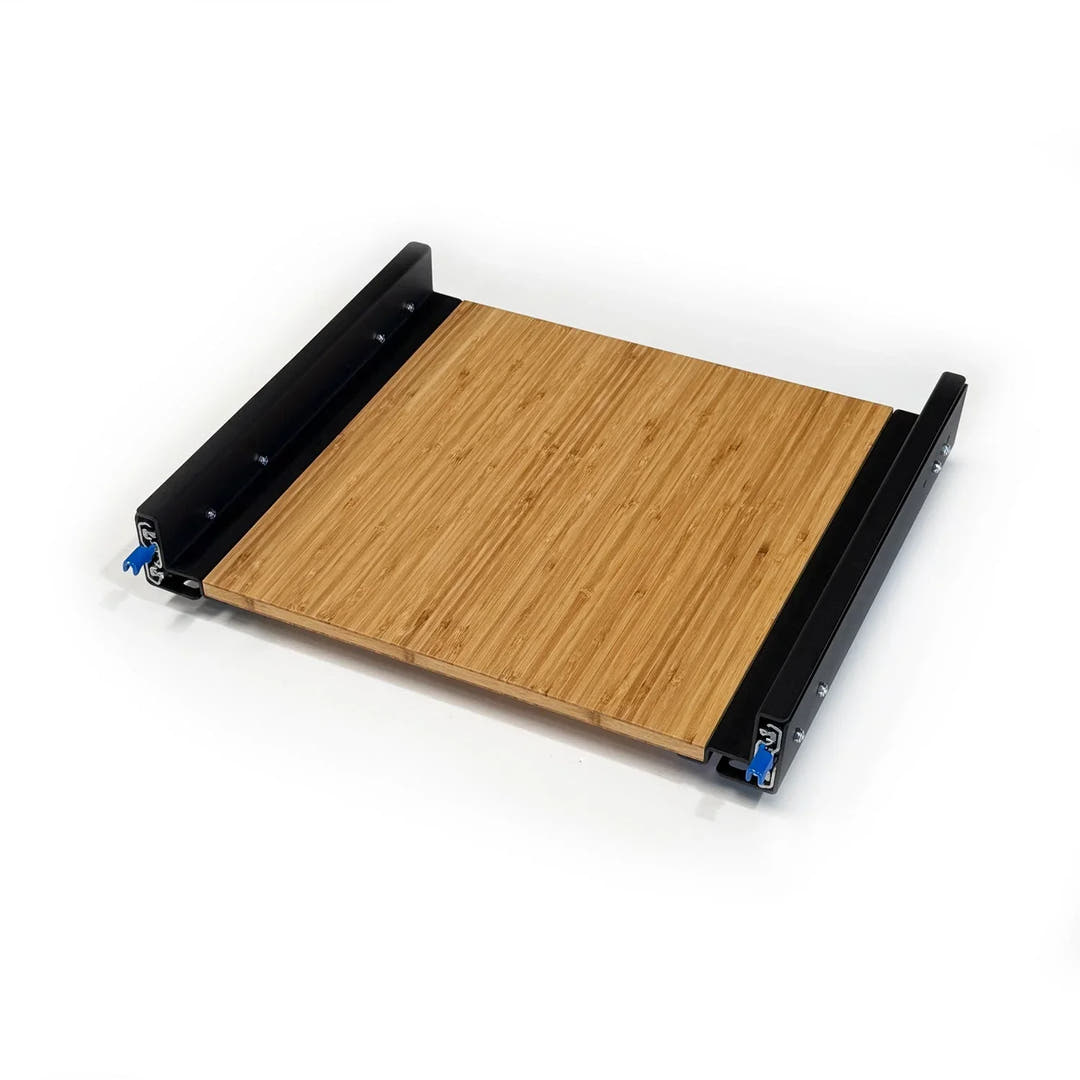

- Add your own custom-width 3/4" plywood floor. Plywood NOT included.
- Slim design to fit tight spaces
- Low profile design
- Made to fit L-track or be floor mounted (hardware not provided)

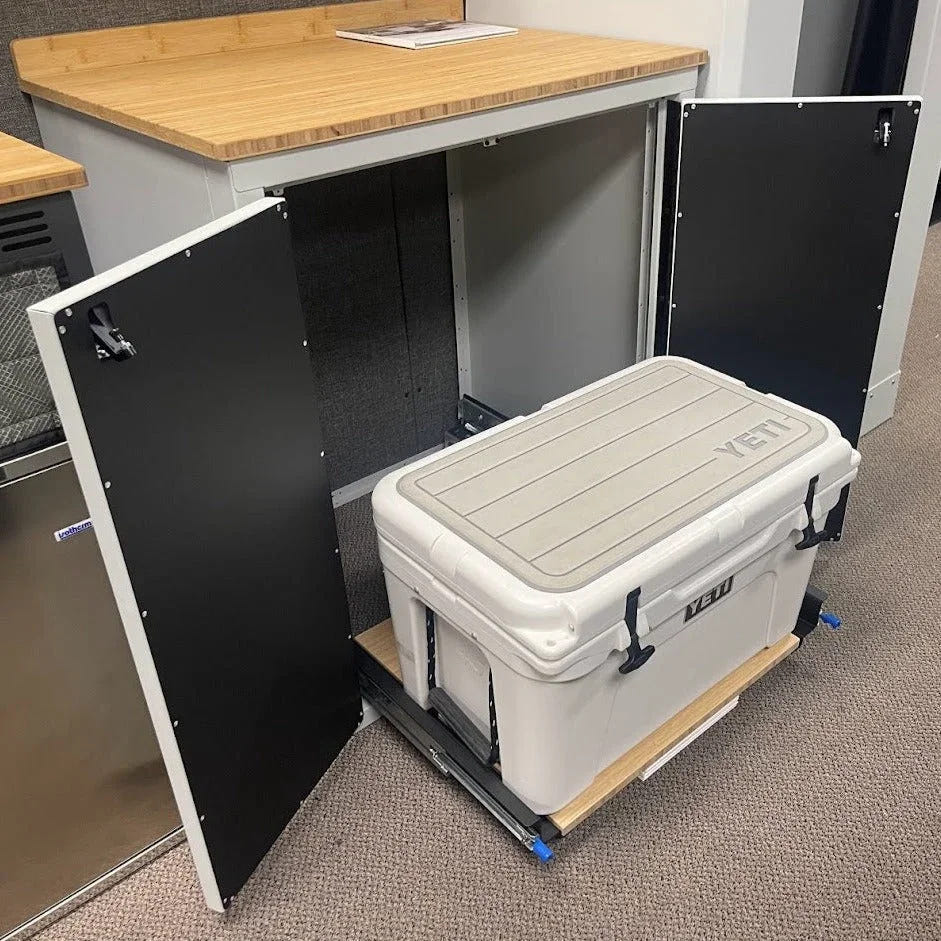

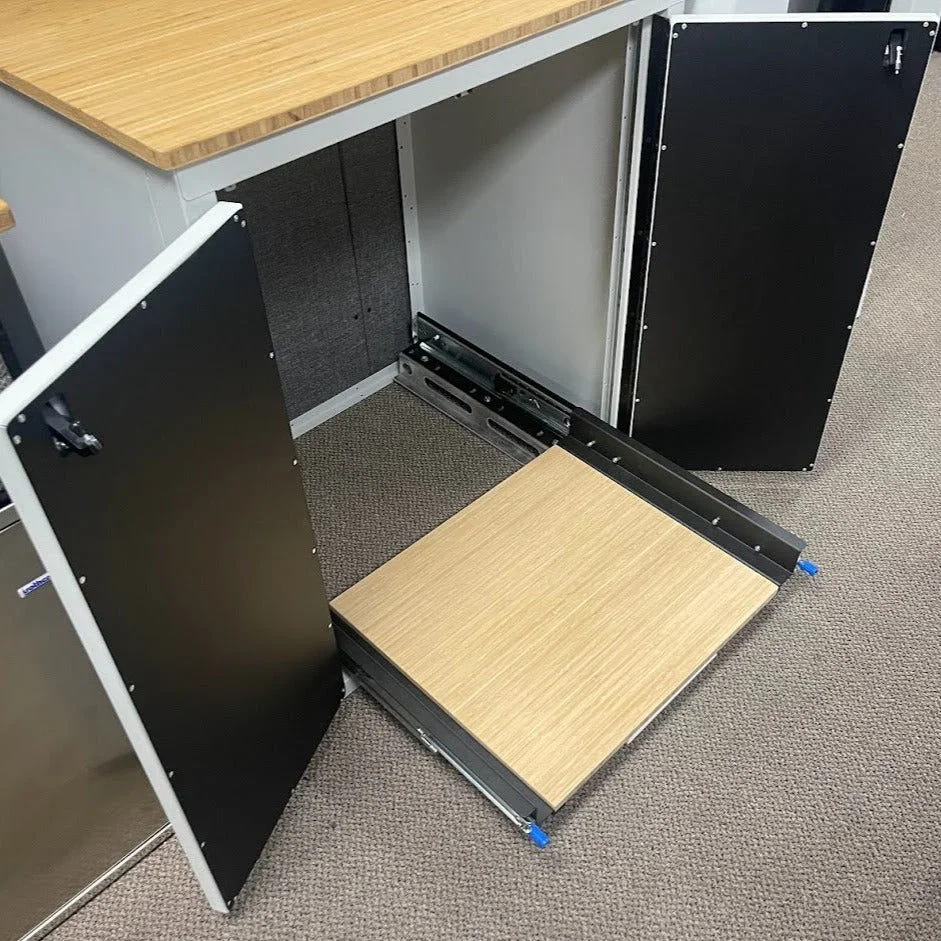

- Works great in RB galley cabinets when using floor mount riser #61754-010-B (not included)
- Proudly made in the U.S.A.
Wood floor not provided. Click HERE for installation instructions.
What the Slide Tray Does in Your Build

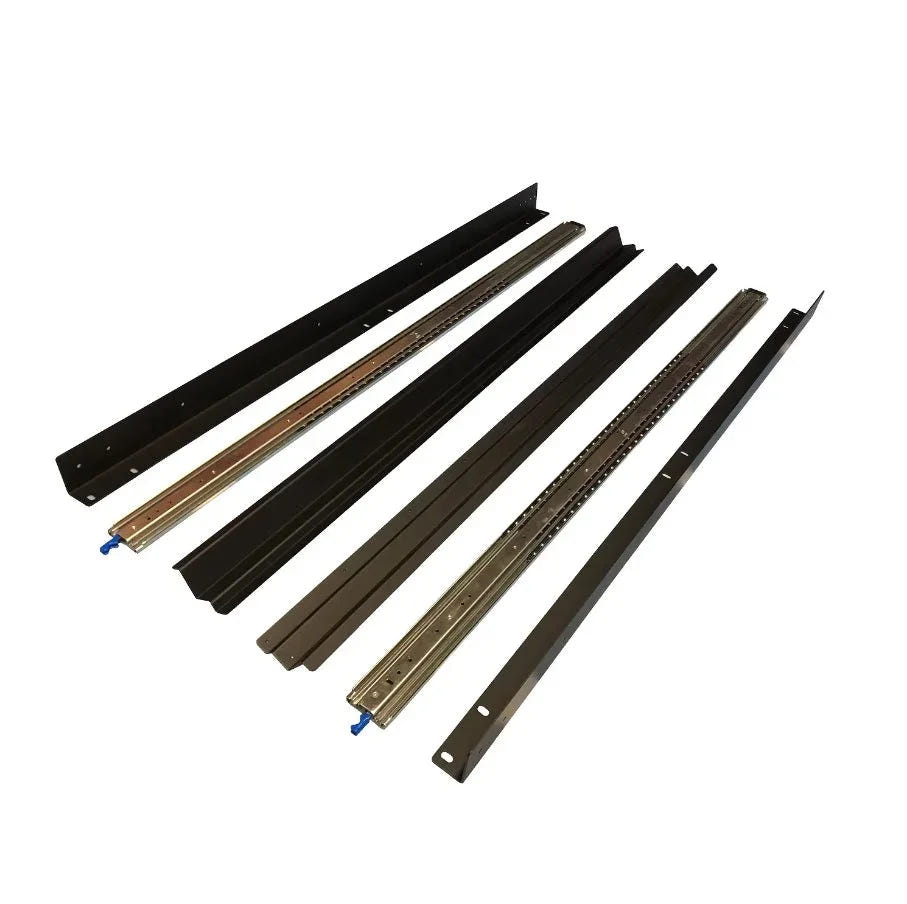

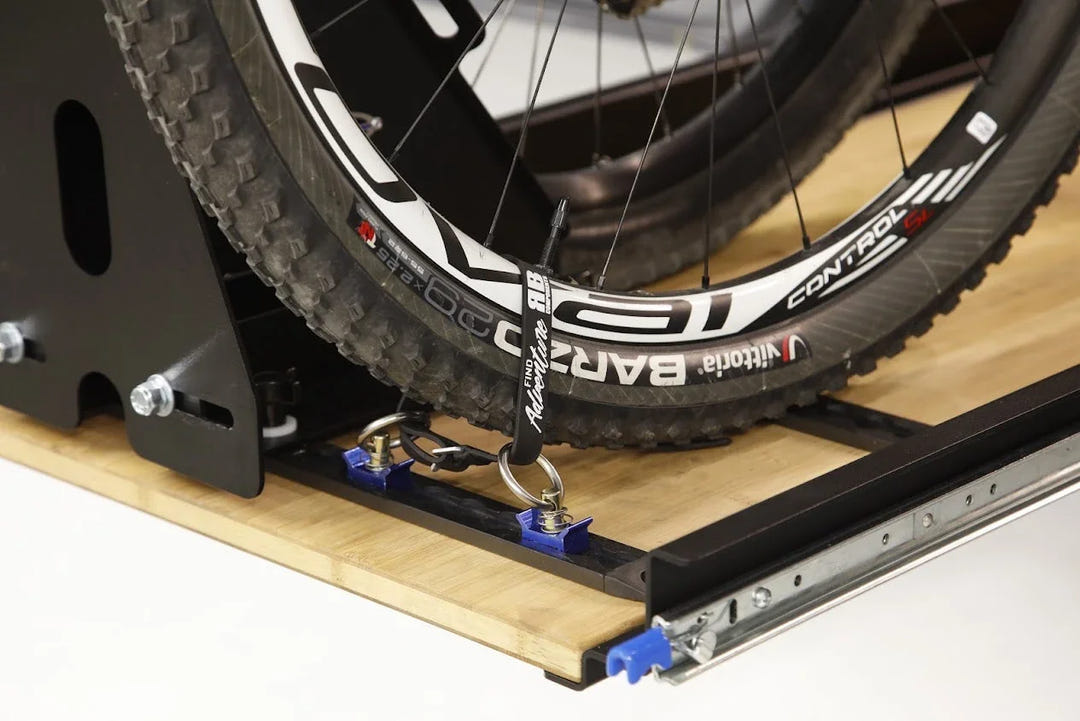

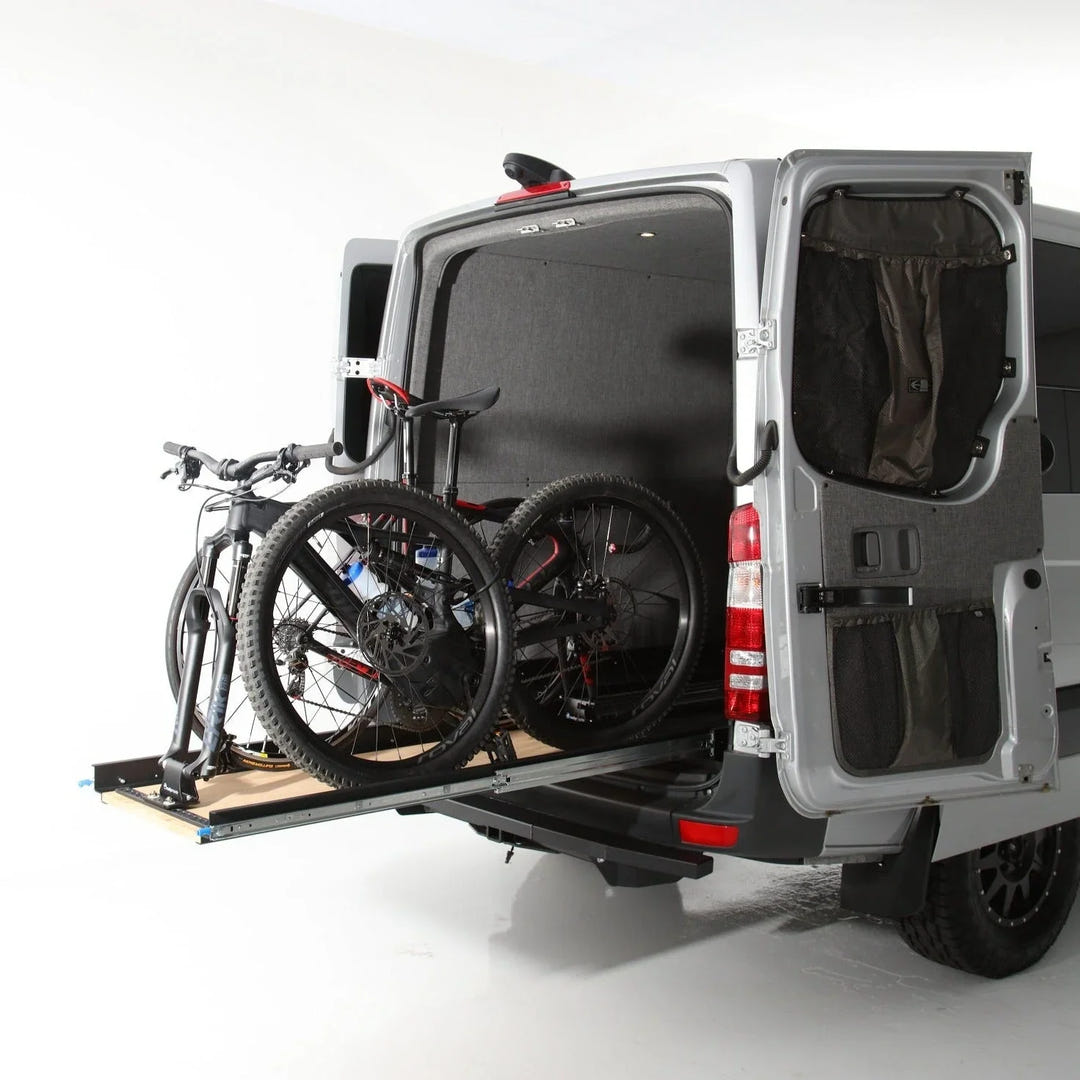

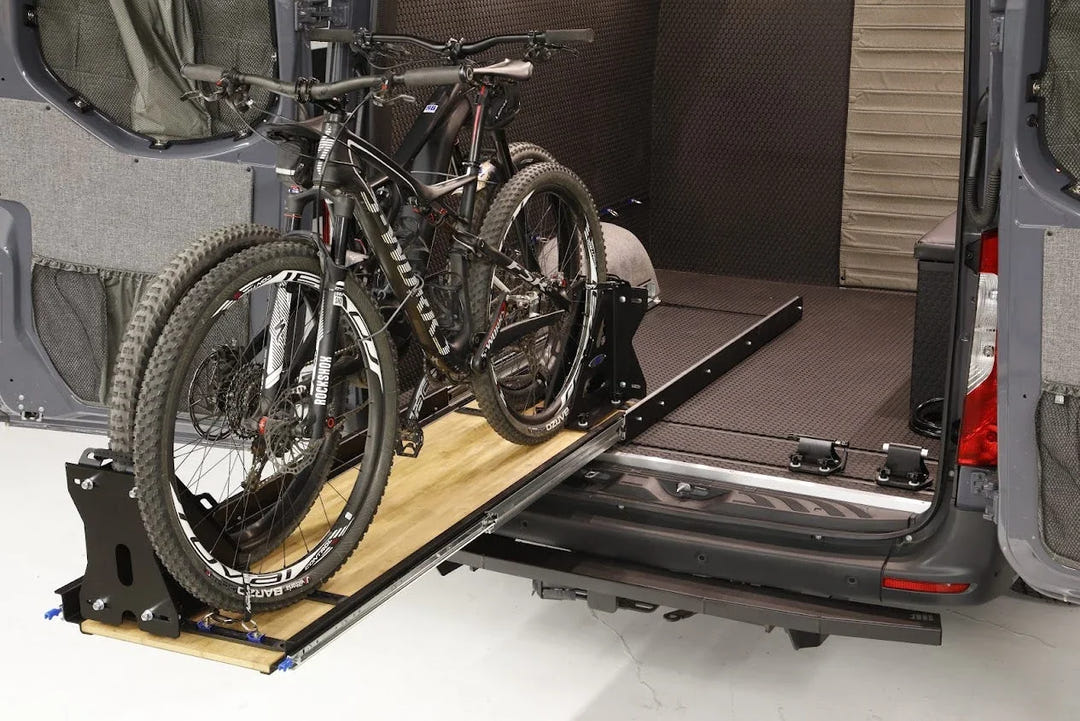

RB Components DIY slide tray kits are great for stowing bikes, camping gear or other items. They come in multiple depths. The kit gives you the slide hardware. You provide the floor, so the tray fits your width.

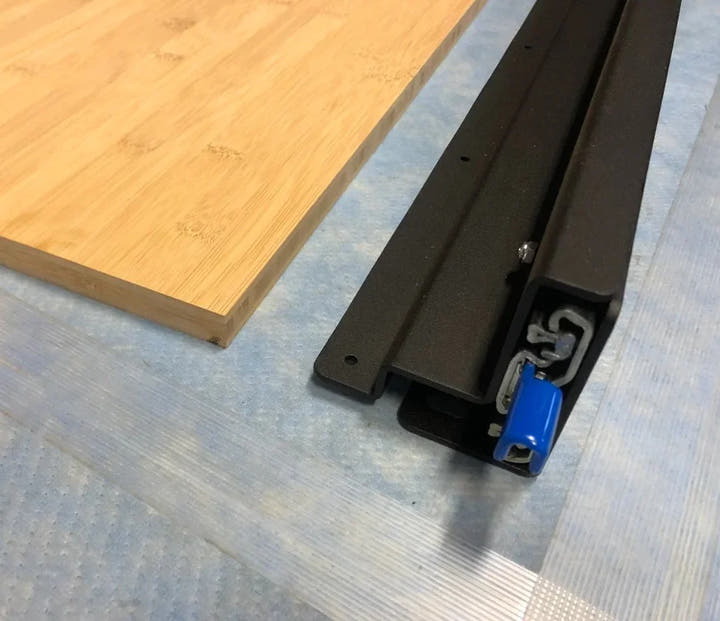

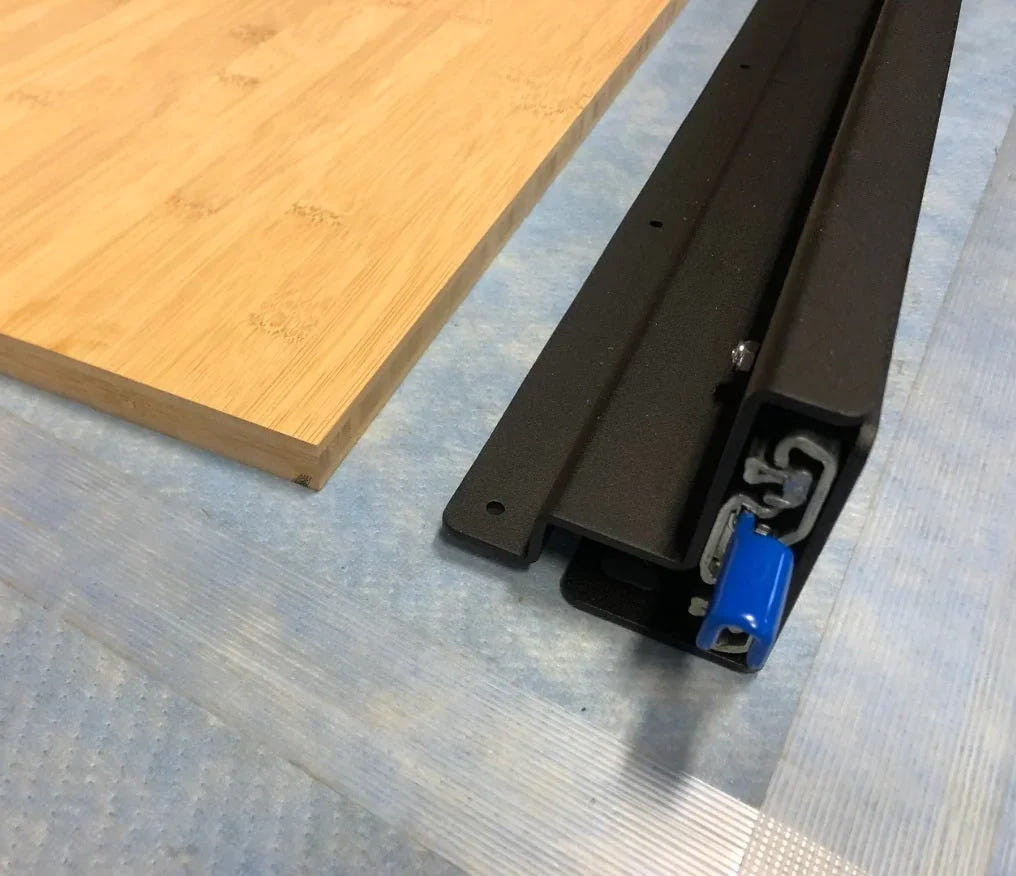

Measure your space, then cut 3/4" plywood to that width. Slide trays make deep storage easy to reach, like a garage or under a bed.

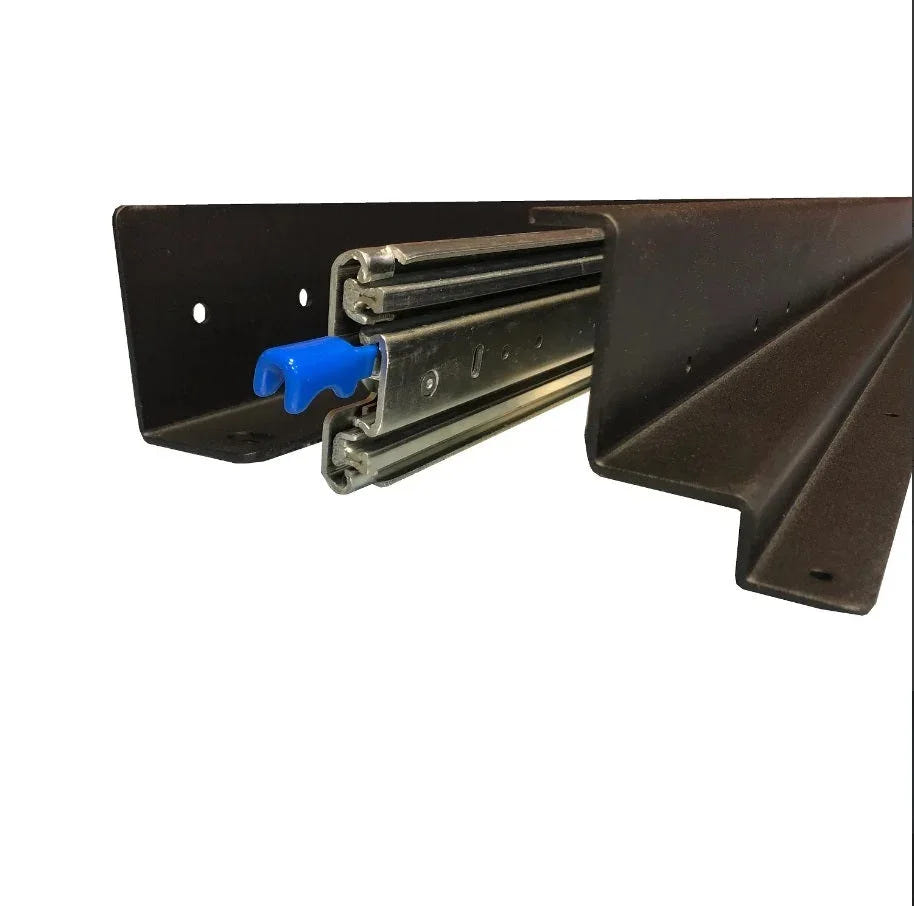

The slim, low profile design helps the 20 DIY slide tray kit fit tight spaces. Double slide locks hold the tray in place. Pull the release lever to slide it out, then load or grab your gear. Plan your mount before you cut the floor, since the mounting method sets how much weight the tray can carry.
Weight Rating and Mounting
Slides are rated at 500 lbs. This rating varies with your mounting method. Hard mounting to the floor and through bolting gives the highest capacity. Mounting to L-track reduces the weight capacity. Test it based on your L-track attachment method.
To mount the 20 DIY slide tray kit to L-track, you will need:
- #2506 L-track fitting with threaded stud (4 pcs)
- Aluminum L-track
AVC RIG also stocks Floor L-Track for van floors.
Pick Your Length

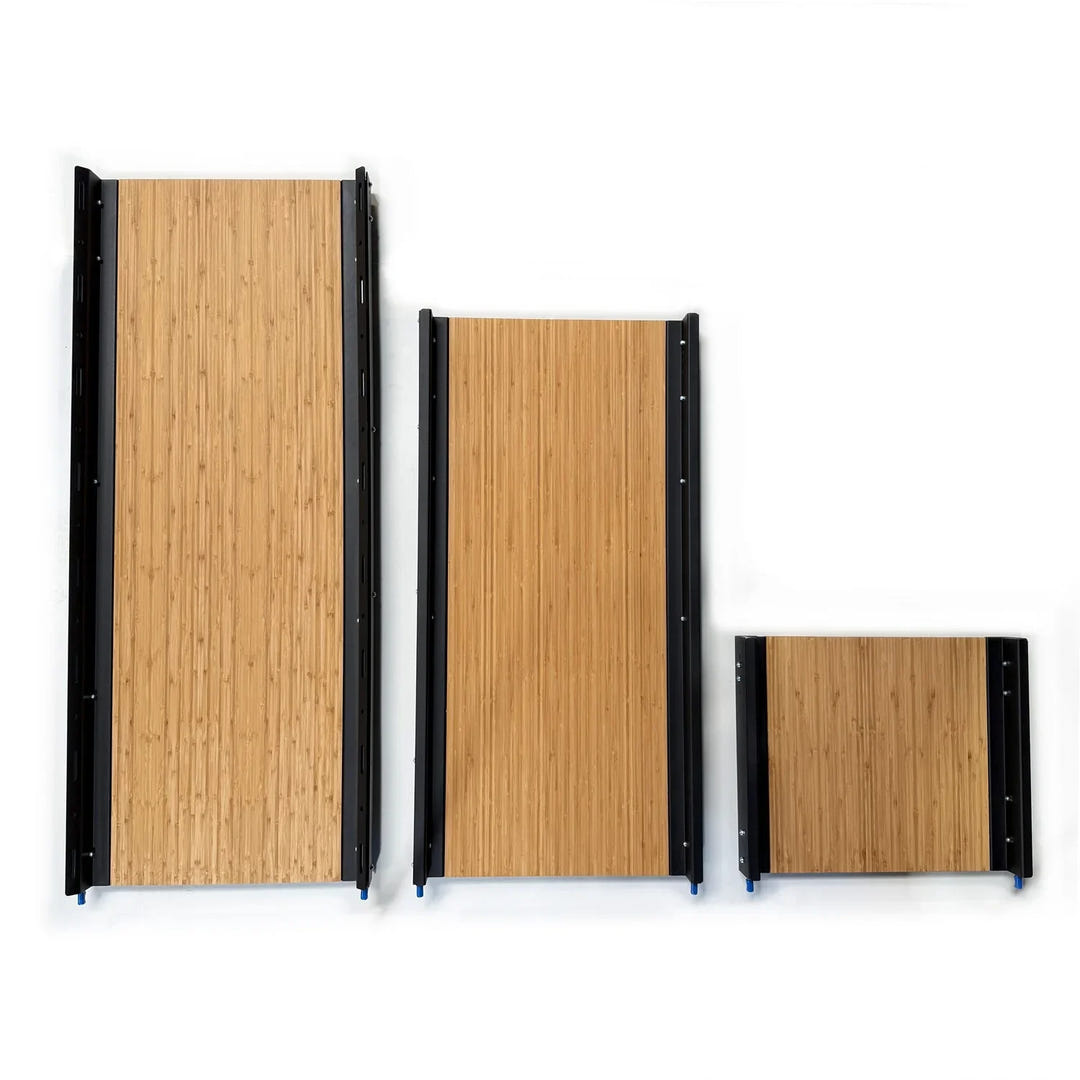

The 20 DIY slide tray kit is one of several sizes. See the 48" DIY Slide Tray Kit and the 60" DIY Slide Tray Kit. Browse more storage in our van interior kits.
