36-Gallon Wheel Well Water Tank - Center (SP-C-36)
The 36 gallon center water tank (SP-C-36) is made for a Mercedes Sprinter. It fits the wheel well space, keeping your floor plan open while adding water capacity. AVC RIG carries this NW Conversions tank from GoCode.
About the 36 Gallon Center Water Tank

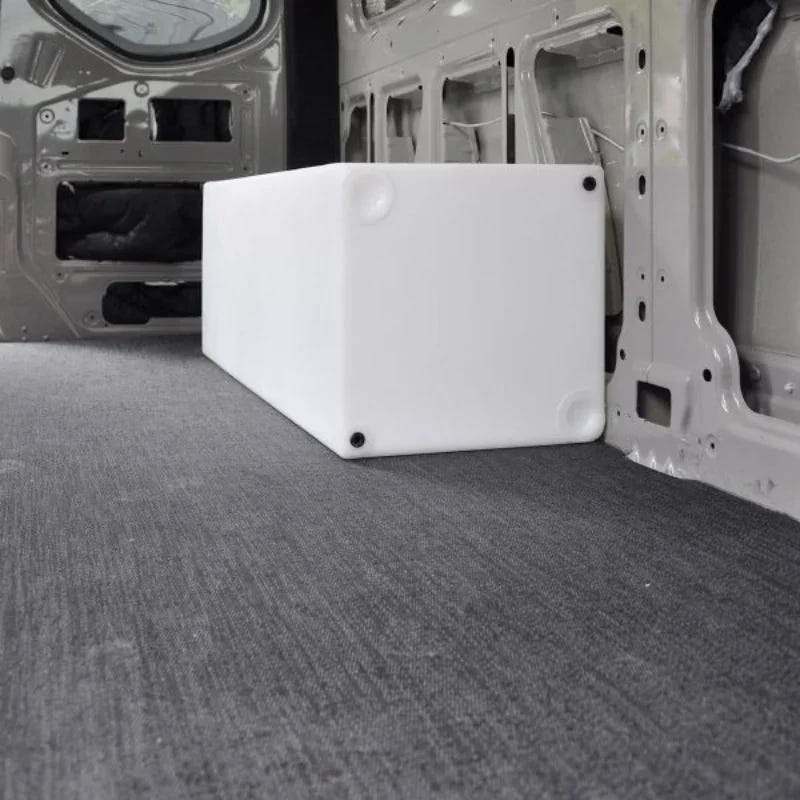

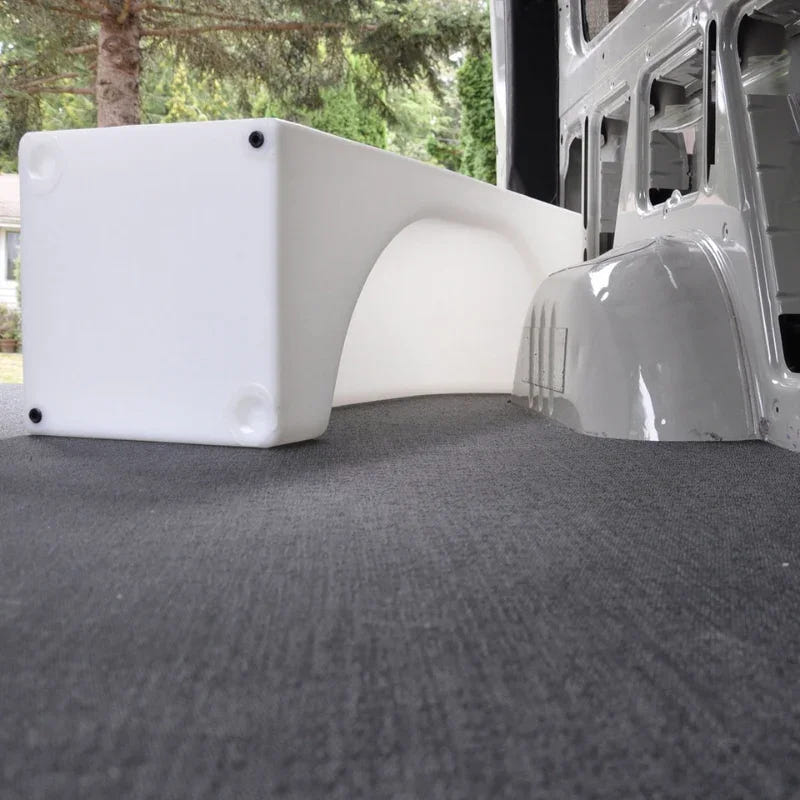

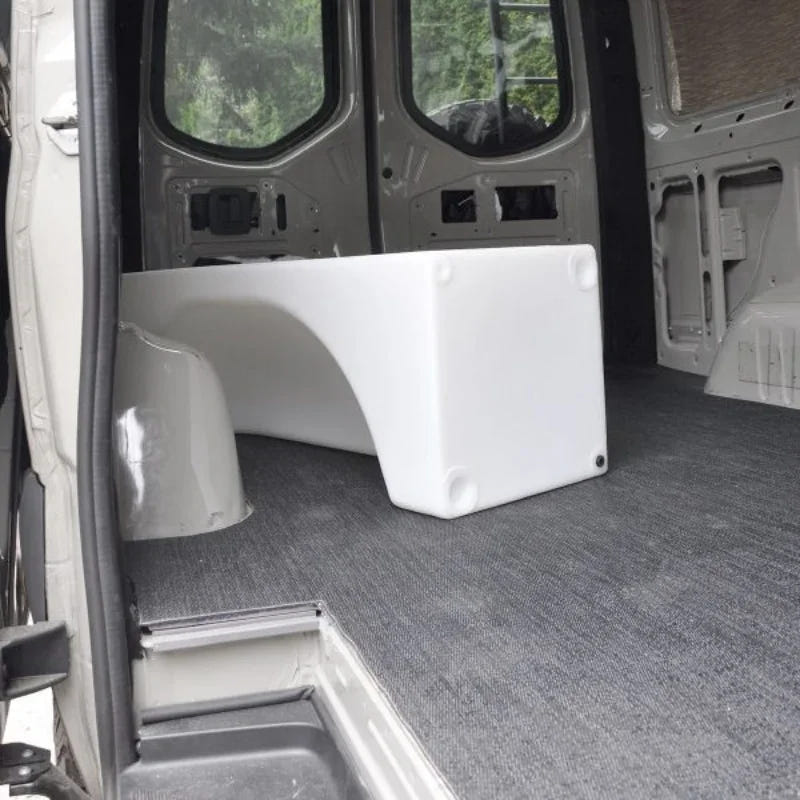

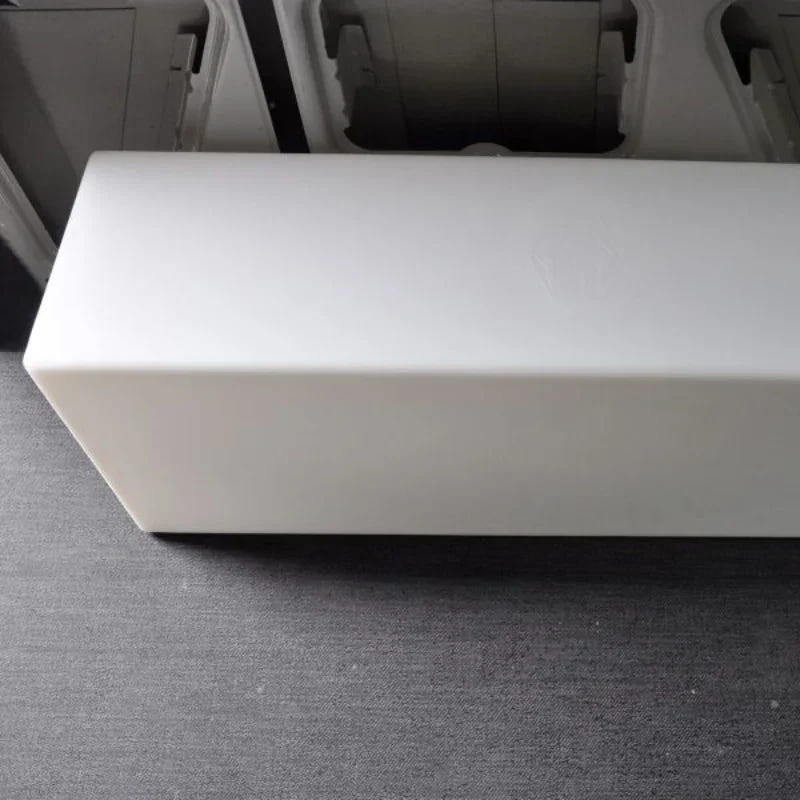

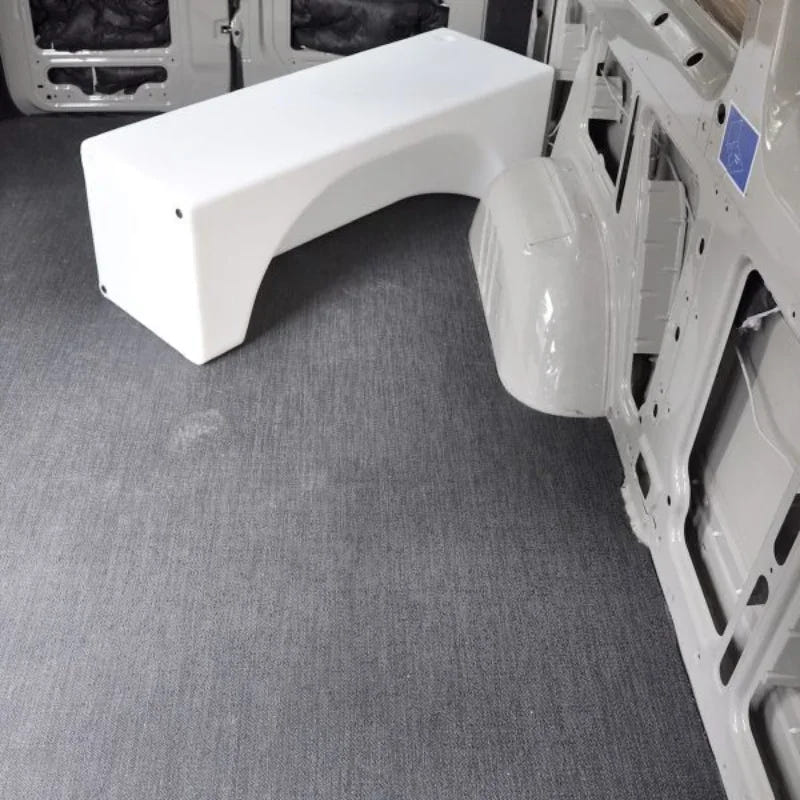

The tank sits centered over the wheel well, so your floor stays open for cabinets and a bed. It is a direct fit on the Sprinter 2500.
36 Gallon Center Water Tank Specs

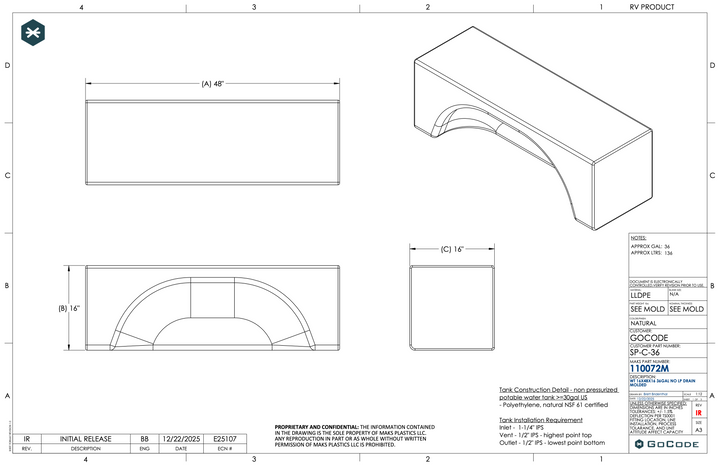

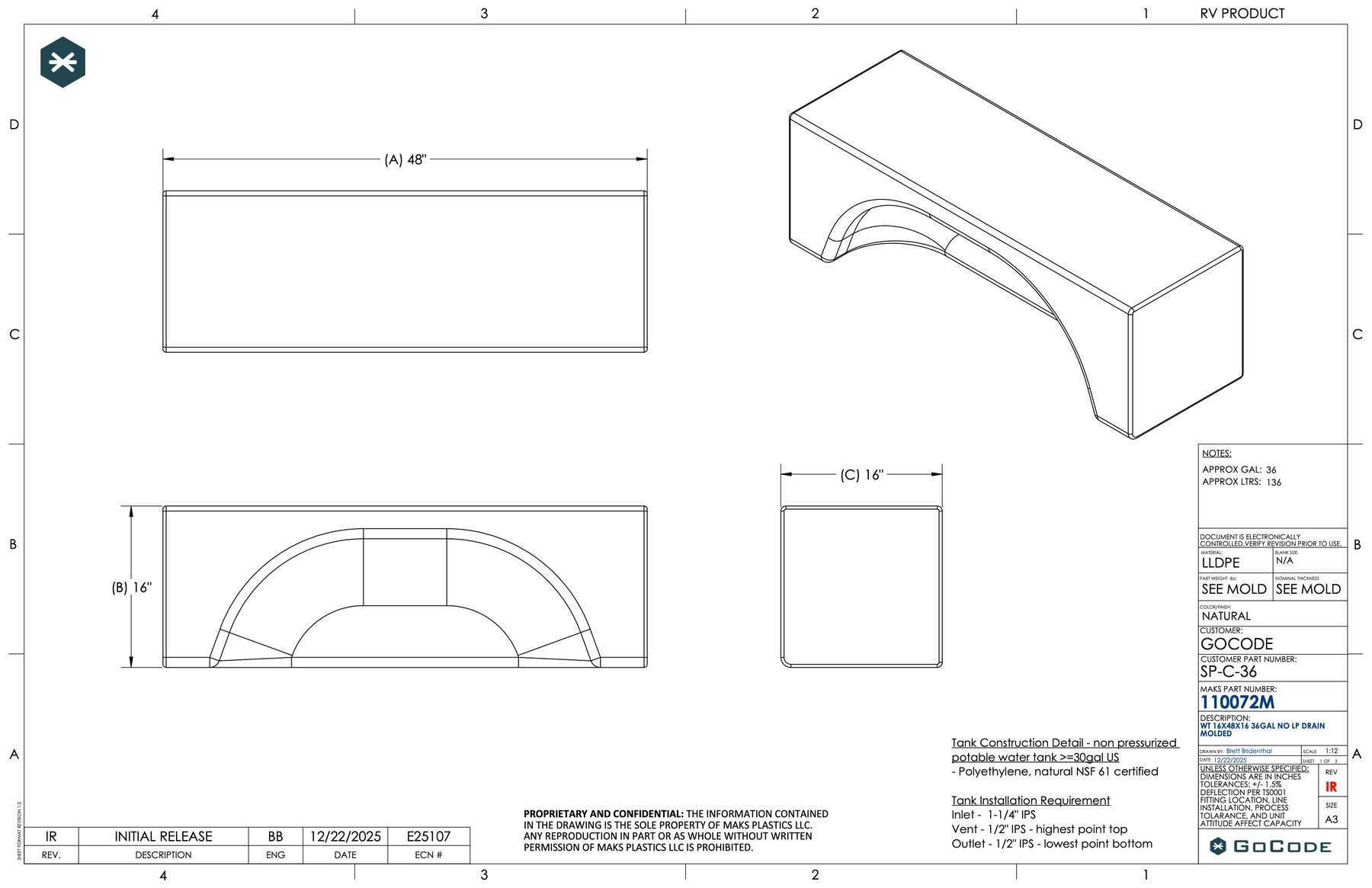

- Nominal dimensions: 48" L x 16" W x 16" H (actual dimensions may vary up to 1.5% each)
- Capacity: 36 gallons
- Dry weight: 27 lbs
- Filled weight: 327 lbs
- Recommended sensor: KUS S5U-15
- Recommended heating pad: Facon CW-T1218 (x2)
- Not designed for pressurized systems, must be vented
Materials and Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
- TEi listed and RVIA approved

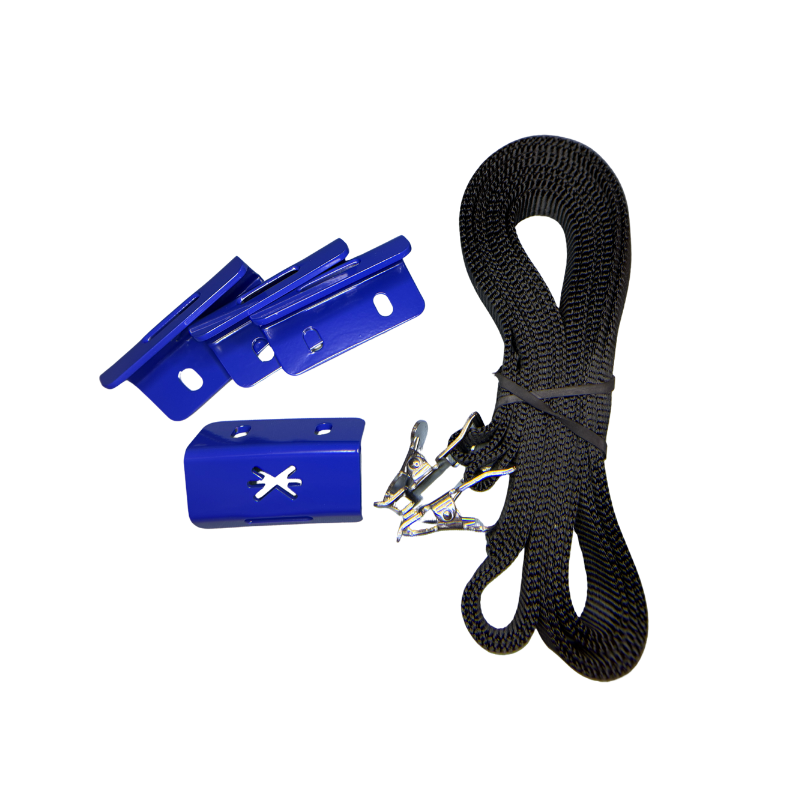

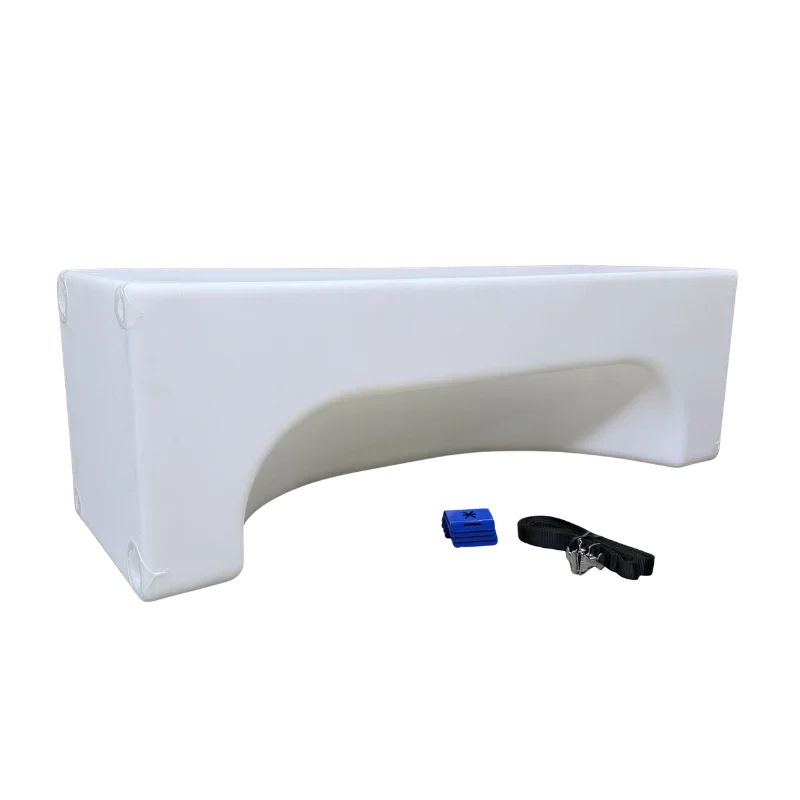

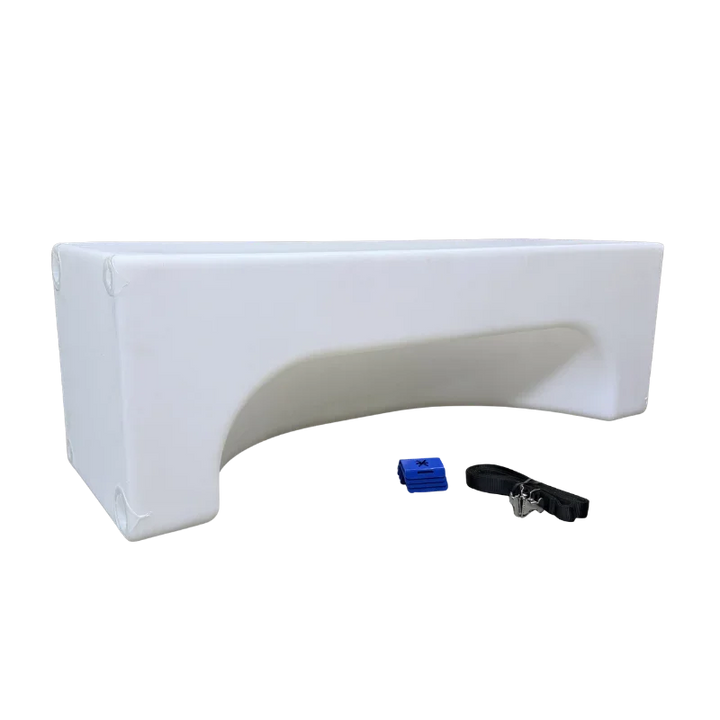

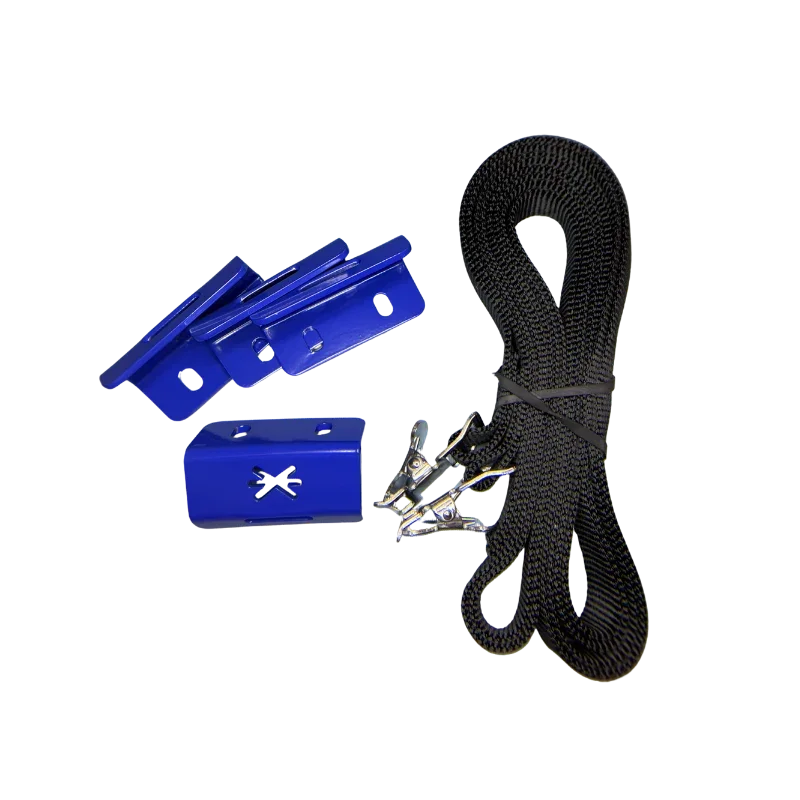

What's Included
- Water tank

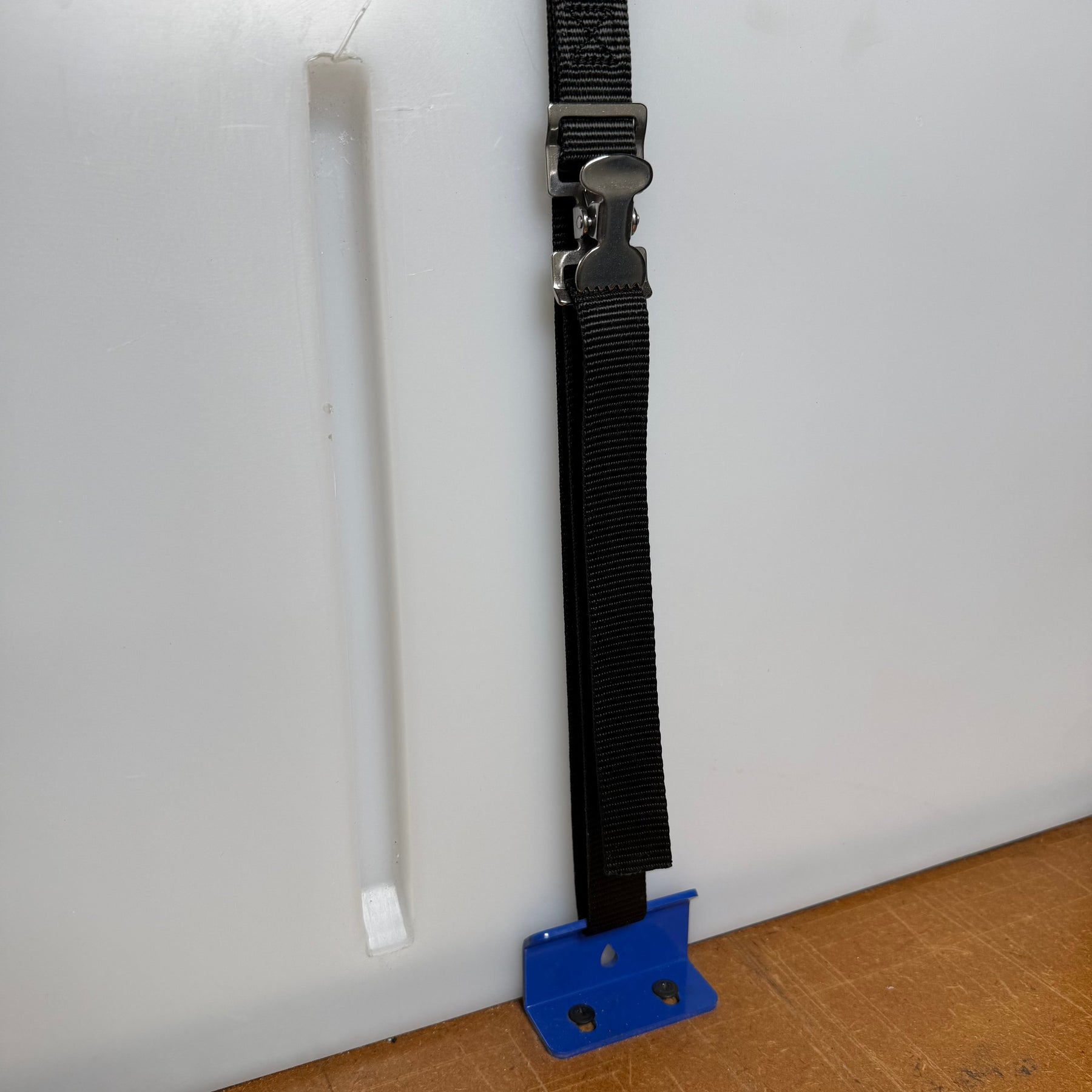

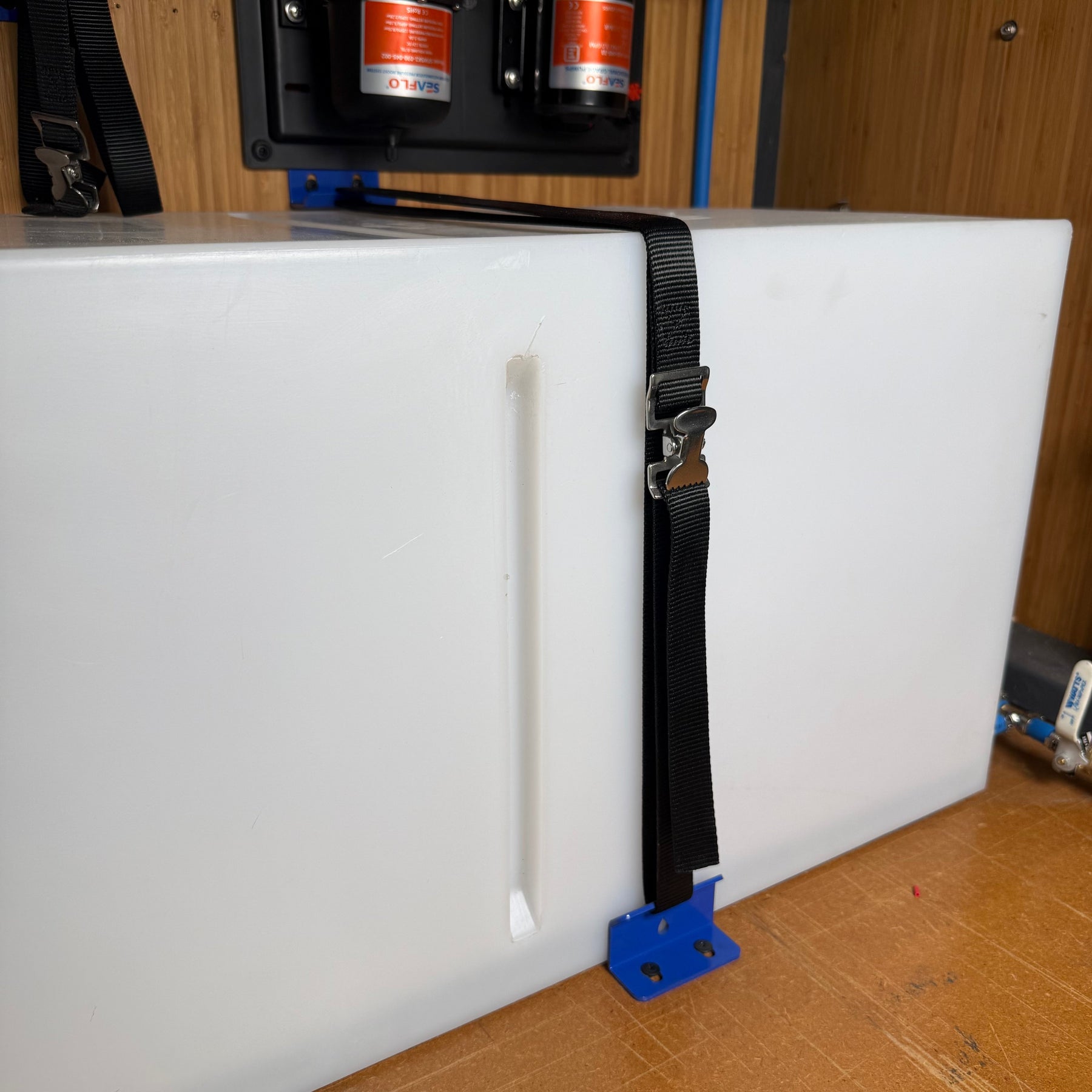

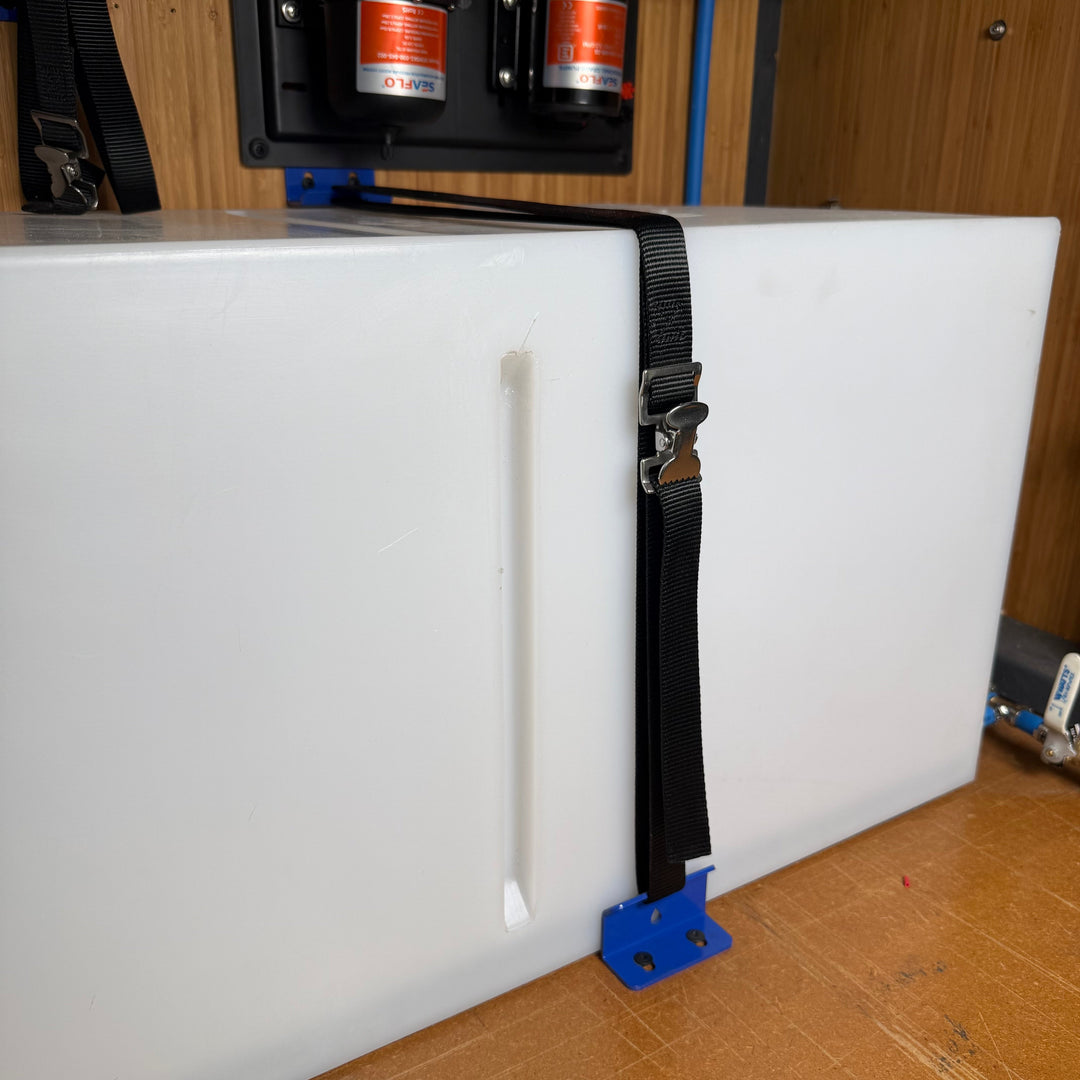

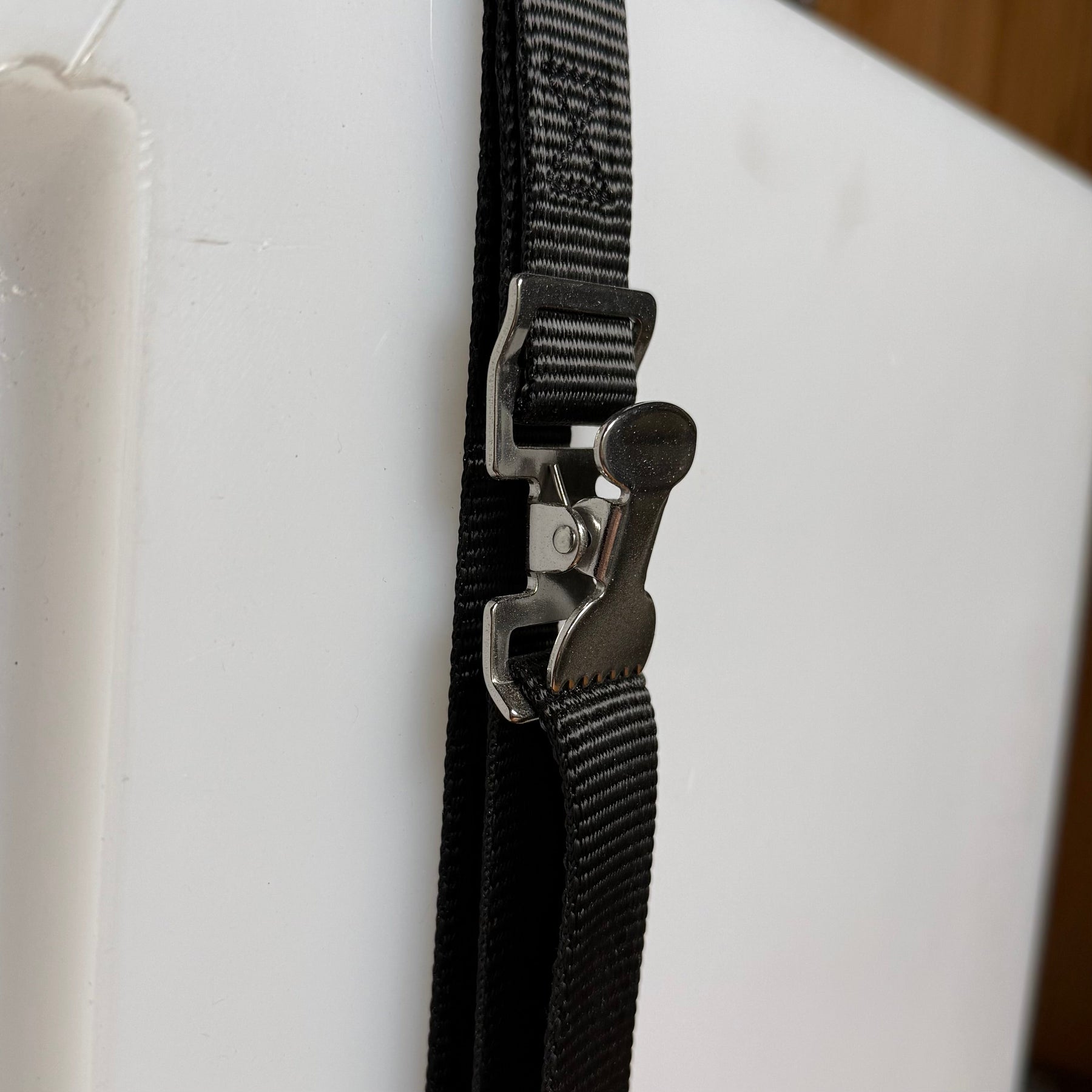

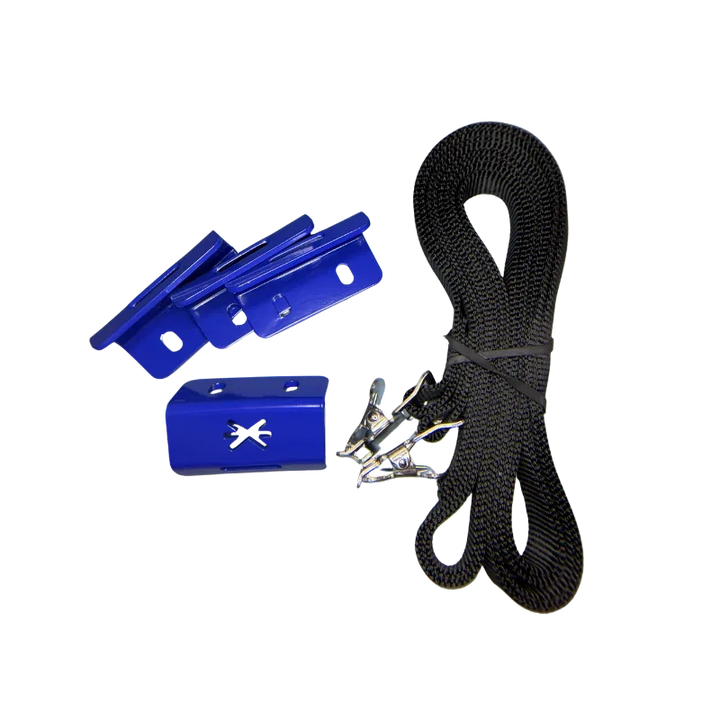

- (x2) Adjustable straps

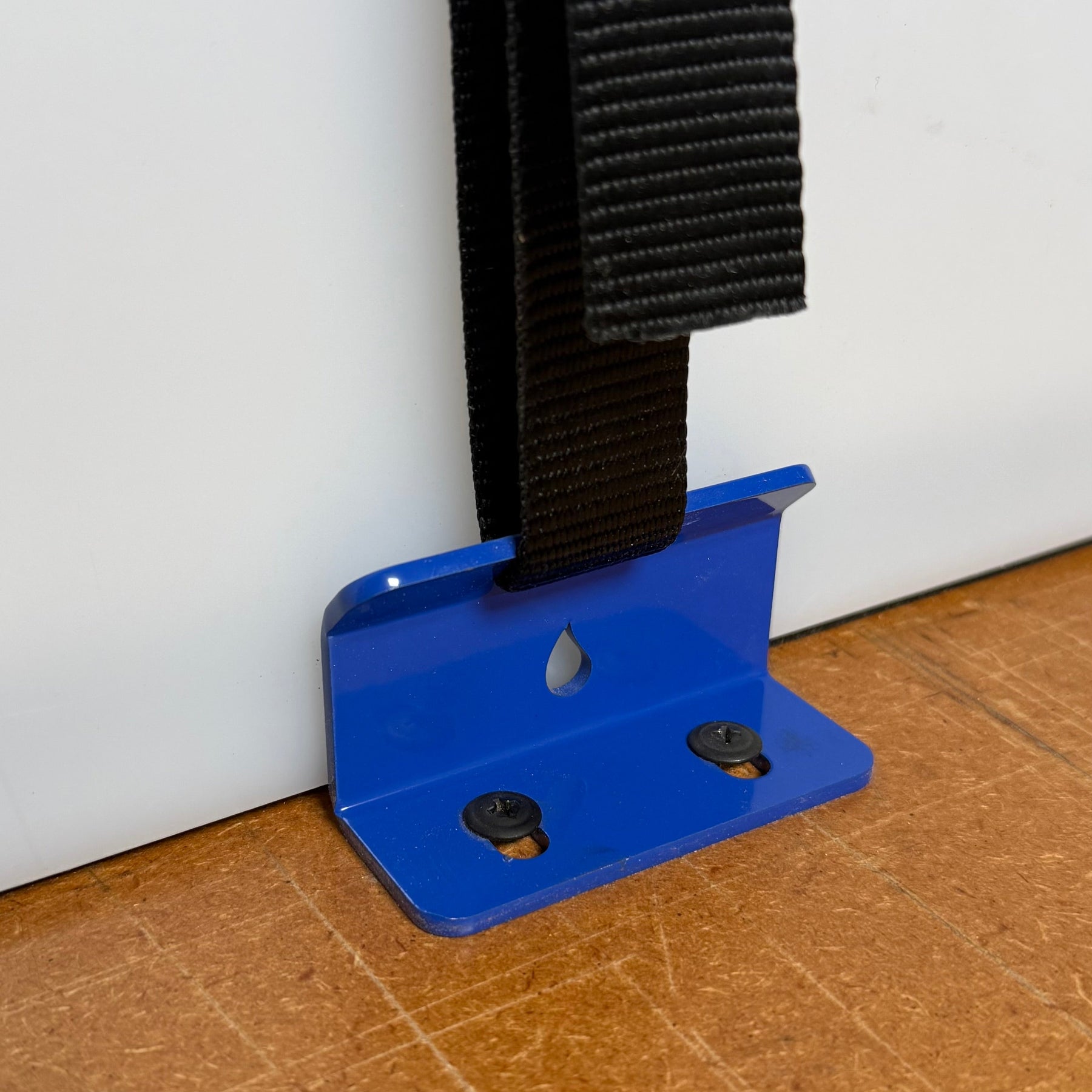

- (x4) Mounting brackets
Ports and plumbing:

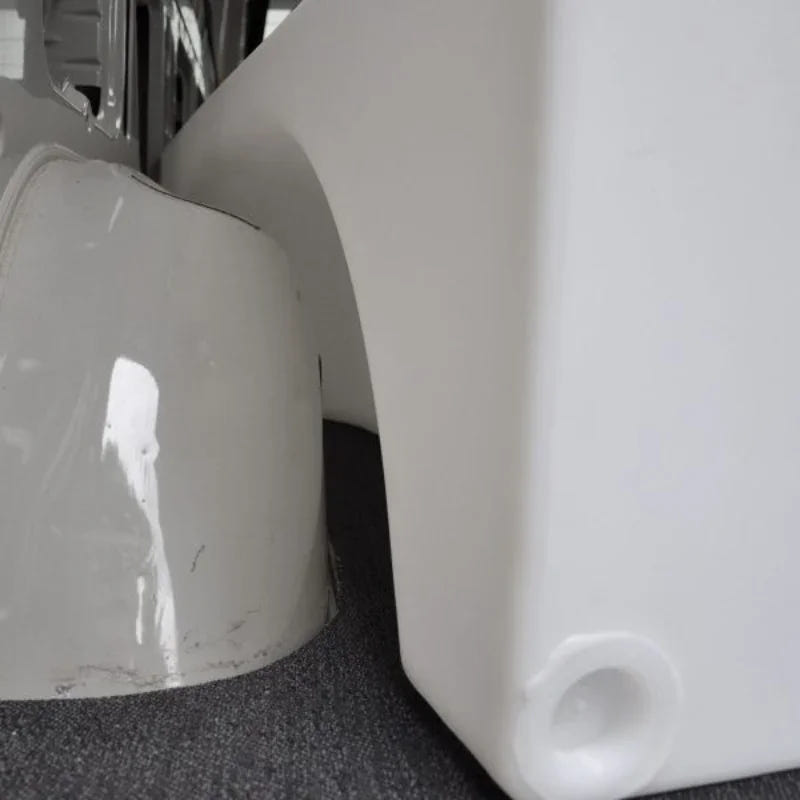

- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Compatibility
- Sprinter 2500 direct fit (also fits Sprinter T1N)
- Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models (see below)
- Can be placed on either driver or passenger side
Planning Your Water System
The 36 gallon center water tank is not designed for pressurized systems, so plan a vent. Filled, it weighs 327 lbs, so plan your mounting and floor layout around that weight. Drill out only the pre-marked NPT ports you need. On a ProMaster, plan the 3.5" elevation to clear the larger wheel wells.
Shipping and Lead Time
Ships in 1-2 business days.
Note: Despite great care during manufacturing and fulfillment, plastic tanks can get dirty or scuffed in transit. This does not mean the tank is damaged. Plastic tanks can also warp slightly, especially on flat surfaces. This is normal and does not make the tank defective. A perfectly flat surface on a rotationally molded part is not always possible. Every effort is made to keep surfaces within a 1.5 degree tolerance.
